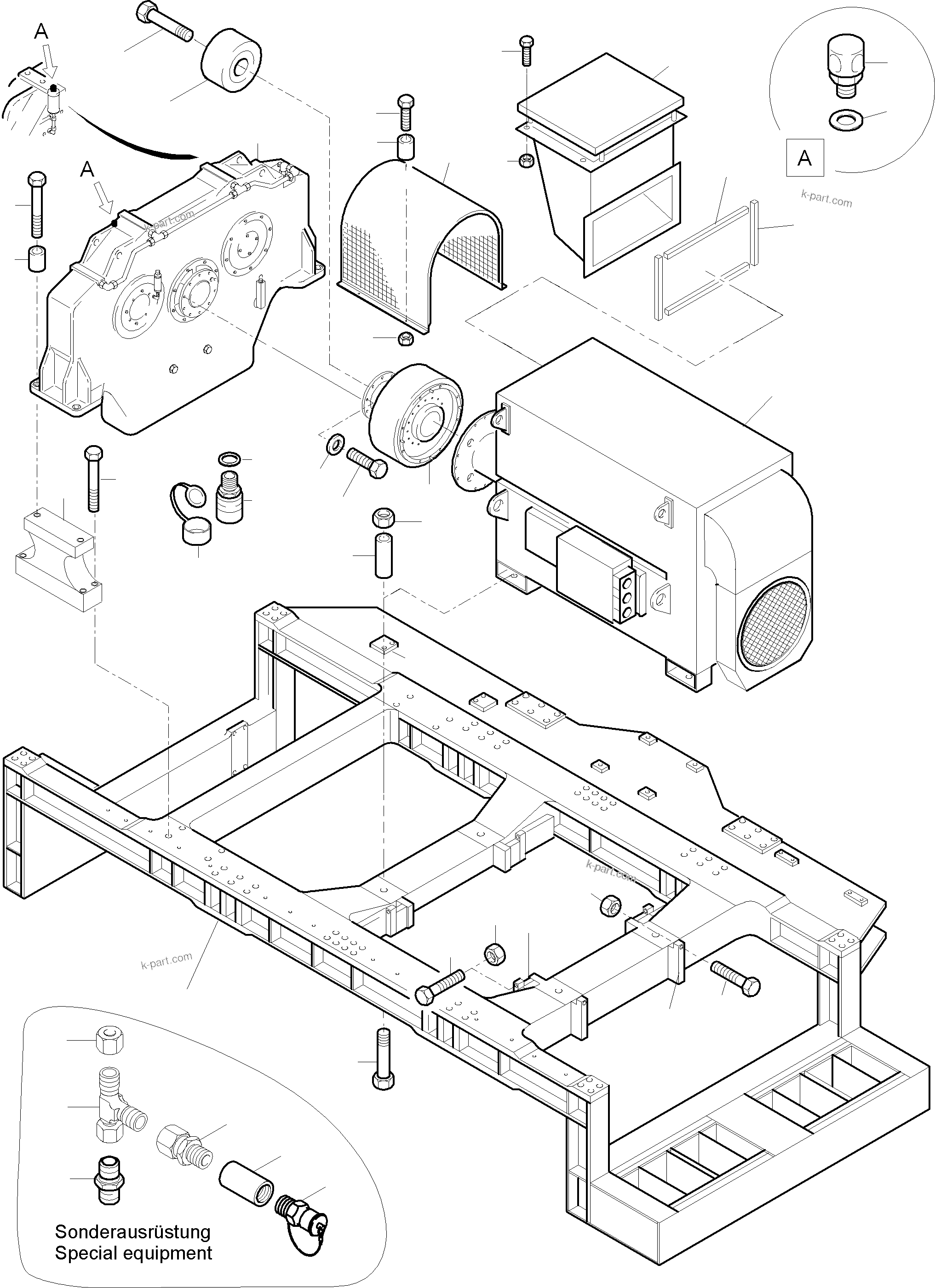

ELECTRIC MOTOR ARR. | PC5500-6E S/N 15060 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC5500-6E S/N 15060

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?		Pump distributor gear	2	InternBDB: 918 850 40 \| InternKon: 922 678 40 / 1	991-0460
?	934 931 40	Electric motor	2	InternBDB: 50Hz
?	921 850 40	Power frame	1	InternKon: 921 220 40 / 3
?		Coupling	2	InternBDB: 655 615 40 \| InternKon: 921 220 40 / 6	991-0161
?	921 214 40	Air outlet	2	InternKon: 921 220 40 / 7
?	921 208 40	Console PDG	4	InternKon: 921 220 40 / 8
?	921 207 40	Protection casing	2	InternKon: 921 220 40 / 9
?	921 209 40	Plate	8	InternKon: 921 220 40 / 10
?	921 218 40	Spanner	8	InternKon: 921 220 40 / 11
?	921 219 40	Spanner	4	InternKon: 921 220 40 / 12
?	502 834 98	Bolt	12	InternBDB: M20x100 \| InternKon: 921 220 40 / 13
?	504 662 98	Nut	12	InternBDB: M20 \| InternKon: 921 220 40 / 14
?	517 968 98	Resilient sleeve	8	InternBDB: 37/80x90 \| InternKon: 921 220 40 / 15
?	501 688 98	Bolt	8	InternBDB: M36x210 \| InternKon: 921 220 40 / 16
?	332 369 99	Nut	8	InternBDB: M36 \| InternKon: 921 220 40 / 17
?	890 737 40	Washer	2	InternKon: 921 220 40 / 18
?	308 352 99	Bolt	2	InternBDB: M36x125 \| InternKon: 921 220 40 / 19
?	534 059 99	Bolt	20	InternBDB: M18x45 \| InternKon: 921 220 40 / 20
?	507 012 98	Washer	20	InternBDB: A19 \| InternKon: 921 220 40 / 21
?	510 744 98	Resilent sleeve	8	InternBDB: 13/ 25x32 \| InternKon: 921 220 40 / 22
?	500 814 98	Bolt	8	InternBDB: M12x60 \| InternKon: 921 220 40 / 23
?	334 600 99	Nut	44	InternBDB: M 12 /985 \| InternKon: 921 220 40 / 24
?	308 392 99	Bolt	16	InternBDB: M30x150 \| InternKon: 921 220 40 / 25
?	304 369 99	Bolt	8	InternBDB: M30x180 \| InternKon: 921 220 40 / 26
?	576 698 40	Resilent sleeve	8	InternBDB: 31/55x95 \| InternKon: 921 220 40 / 27
?	890 756 40	Moulding material	4	InternBDB: 50x50x950 \| InternKon: 921 220 40 / 28
?	576 228 40	Moulding material	4	InternBDB: 25x50x480 \| InternKon: 921 220 40 / 29
?	307 804 99	Bolt	36	InternBDB: M12x30 \| InternKon: 921 220 40 / 30
?	081 495 40	Quick disconnect coupling	2	InternBDB: 61-6511-620-022 \| InternKon: 922 678 40 / 37
?	081 496 40	Protection cap	2	InternBDB: 63-6591-620-051 \| InternKon: 922 678 40 / 38
?	340 086 98	Seal ring	2	InternBDB: A30x38 /7603 \| InternKon: 922 678 40 / 39
?	940 006 40	Bleeder valve	4	InternBDB: M22 x 1.5 Rцssing Sonderzubehцr \| InternKon: 922 678 40 / 40
?	688 863	Seal ring	4
?	507 725 40	Breech block	2	InternBDB: Rцssing Sonderzubehцr \| InternKon: 944 848 40 / 6
?	440 457 40	Filler , Gear Oil	2	InternBDB: 3/8 NPT Wiggins P-1804 / Rцssing Sonderzubehцr \| InternKon: 944 848 40 / 7
?	440 458 40	Protection cap	2	InternBDB: Wiggins P1880 / Rцssing Sonderzubehцr \| InternKon: 944 848 40 / 8
?	374 415 99	FITTING	2	InternBDB: SDS-L42xM48x2 Type E/ Rцssing Sonderzubehцr \| InternKon: 944 848 40 / 1
?	516 178 98	Union	2	InternBDB: SWRT-L42 / Rцssing Sonderzubehцr \| InternKon: 944 848 40 / 2
?	621 013 40	Union	2	InternBDB: RED 42/22-PL/OMD / Rцssing Sonderzubehцr \| InternKon: 944 848 40 / 3
?	371 860 99	Plug	2	InternBDB: 42-L / Rцssing Sonderzubehцr \| InternKon: 944 848 40 / 5
?	371 280 99	Union nut	2	InternBDB: N-L-42 / Rцssing Sonderzubehцr \| InternKon: 944 848 40 / 4
