PC5500-6E S/N 15060

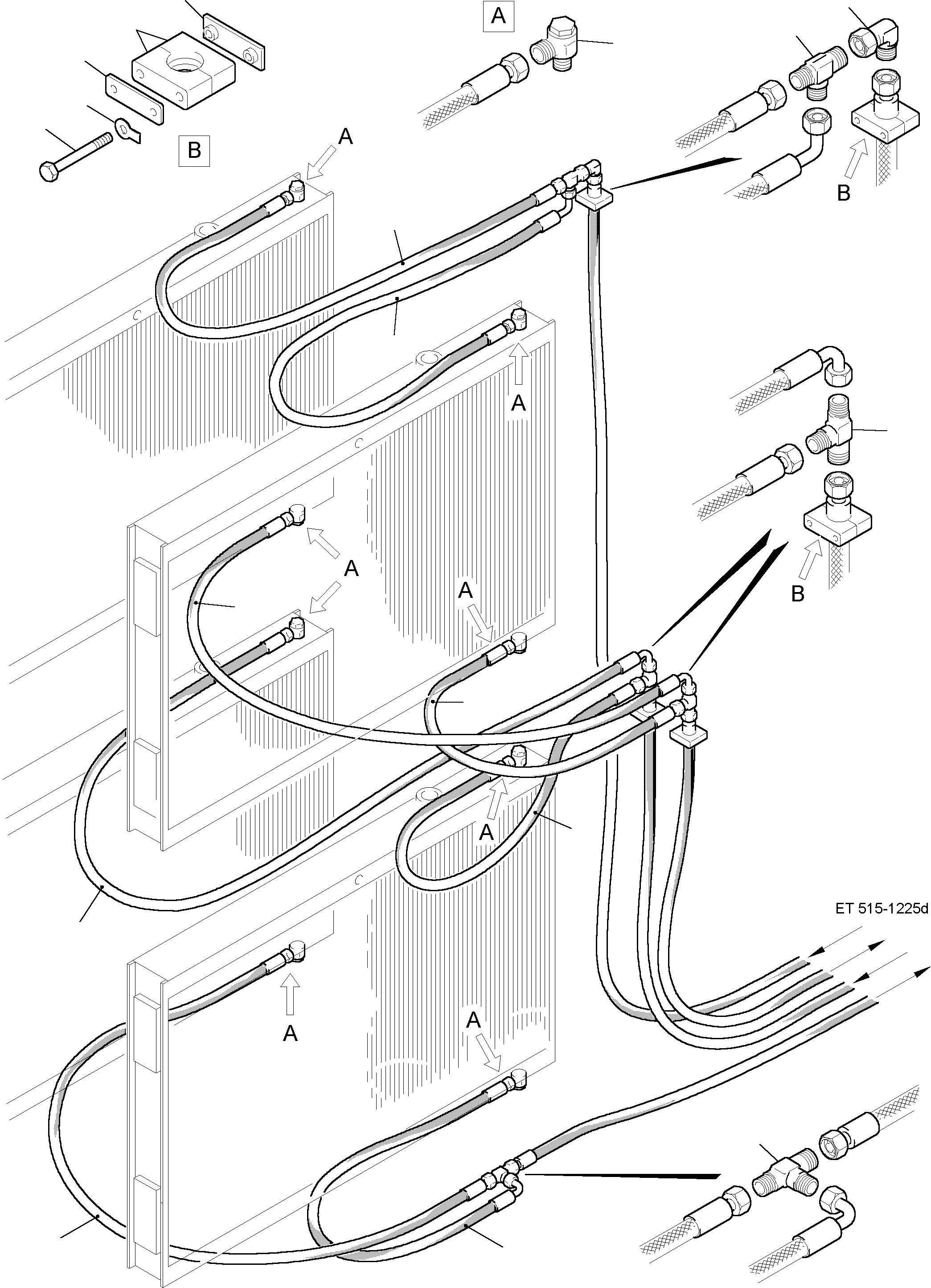

Komatsu parts book diagram for PC5500-6E S/N 15060: COOLING - DISTRIBUTOR GEAR (COOLER)

01 01 02 02 03 03 04 04 05 06 06 06 07 11 12 13 14 15

	#	Part Number	Partname	Quantity	Options	Reference
	01	513 484 98	Hose assy. DN 20x3450	2	InternBDB: DOL 22 /DOL 22 \| InternKon: 574 550 40 / 10
	02	515 585 40	Hose assy. DN 20x3150	2	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 574 550 40 / 9
	03	512 288 98	Hose assy. DN 20x3500	2	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 574 550 40 / 12
	04	515 482 40	Hose assy. DN 20x3400	2	InternBDB: DOL 22 /DOL 22 \| InternKon: 574 550 40 / 14
	05	906 925 40	Union	8	InternBDB: 22-LM /OMD \| InternKon: 574 550 40 / 21
	06	906 924 40	Union	4	InternBDB: TR 28/22/22 PL /OMD \| InternKon: 574 550 40 / 22
	07	516 161 98	Socket	2	InternBDB: L 28 / 3942 \| InternKon: 574 550 40 / 51
	11	502 682 98	Half clamp	4	InternBDB: S-2-G-28 / 3015 \| InternKon: 914 455 40 / 17
	12	534 001 99	Cover plate	2	InternBDB: S-DP-A-2 / W1 / 3015 \| InternKon: 914 455 40 / 18
	13	504 585 98	Locking plate	2	InternBDB: SI 2 \| InternKon: 914 455 40 / 22
	14	308 579 99	Bolt	4	InternBDB: M10x60 8.8 / 931 \| InternKon: 914 455 40 / 20
	15	534 002 99	Weld on plate	2	InternBDB: S-AP-A-2 W1 / 3105 \| InternKon: 914 455 40 / 19

Komatsu PC5500-6E S/N 15060 parts catalog PDF

COOLING - DISTRIBUTOR GEAR (COOLER) (515-1227b) in PC5500-6E S/N 15060. Diagram image and parts list.
