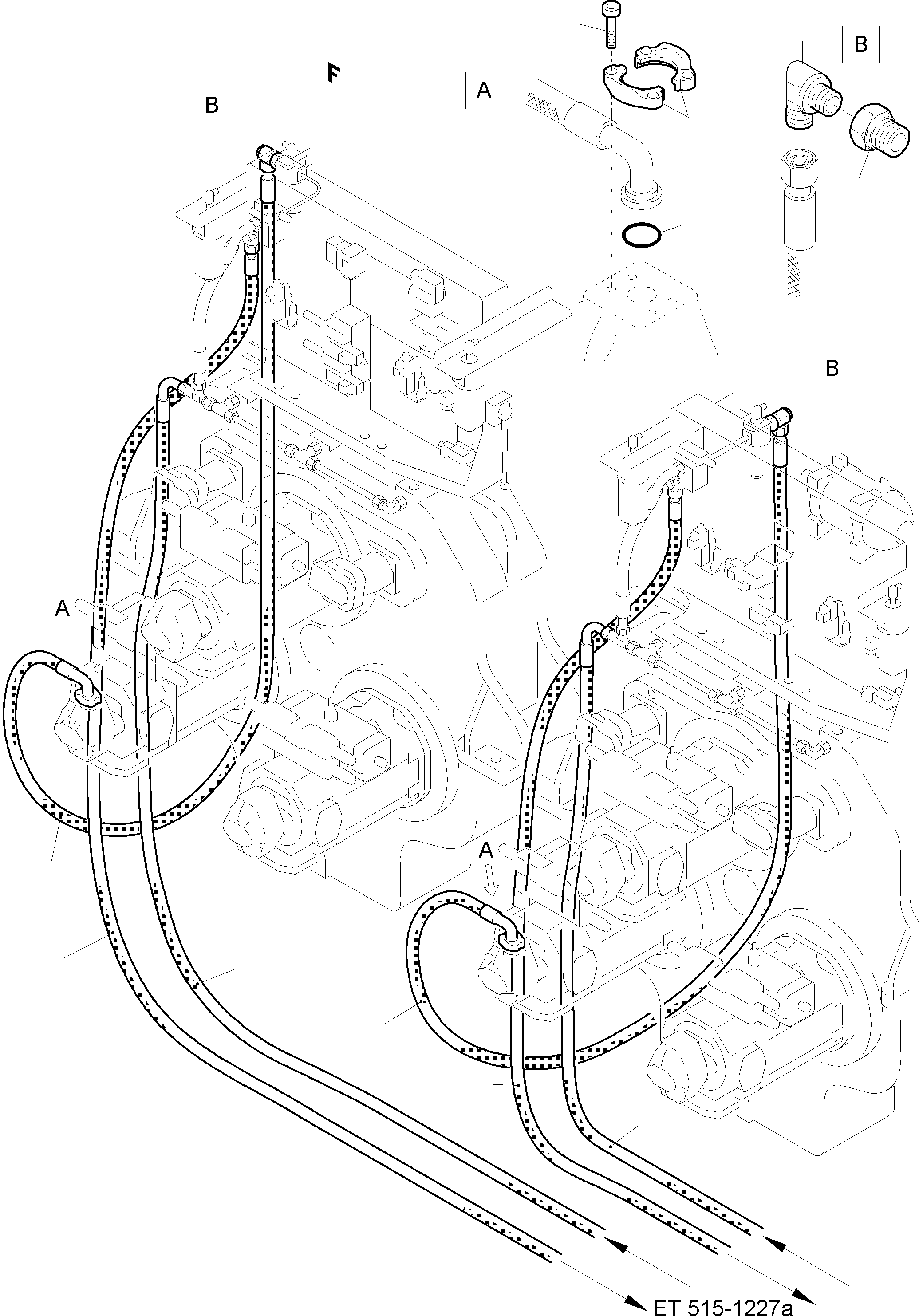

COOLING - DISTRIBUTOR GEAR (PUMP) | PC5500-6E S/N 15060

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC5500-6E S/N 15060

01 01 02 03 04 05 06 07 08 09 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 10 11 12

#	Part Number	Partname	Quantity	Options
01	513 828 98	Hose assy. DN 25 x 3800	2	InternBDB: DOL 28 / FL 1 1/4-90 \| InternKon: 933 946 40 / 8
02	514 173 98	Hose assy. DN 25 x 8200	1	InternBDB: DOL 28 / DOL 28 \| InternKon: 918 858 40 / 5
03	514 174 98	Hose assy. DN 25 x 9100	1	InternBDB: DOL 28 / DOL 28 \| InternKon: 918 858 40 / 6
04	512 376 98	Hose assy. DN 25 x 9850	1	InternBDB: DOL 28 / DOL 28-90 \| InternKon: 918 858 40 / 7
05	513 835 98	Hose assy. DN 25x10000	1	InternKon: 918 858 40 / 8
06	356 210 40	O-ring	8	InternBDB: 1 1/4, NBR 90 \| InternKon: 918 858 40 / 48
07	515 658 40	Half flange	4	InternBDB: 1 1/4, NW32 \| InternKon: 918 858 40 / 47
08	319 272 99	Bolt	8	InternBDB: M12x30 \| InternKon: 918 858 40 / 49
09	374 439 99	Socket	1	InternBDB: L 28 E-G1 DIN 3901 \| InternKon: 922 427 40 / 36
10	516 161 98	Socket	1	InternBDB: 28-L DIN 3942 \| InternKon: 922 427 40 / 37
11	374 439 99	Socket	1	InternBDB: L 28 E-G1 DIN 3901 \| InternKon: 922 424 40 / 36
12	516 161 98	Socket	1	InternBDB: 28-L DIN 3942 \| InternKon: 922 424 40 / 37
