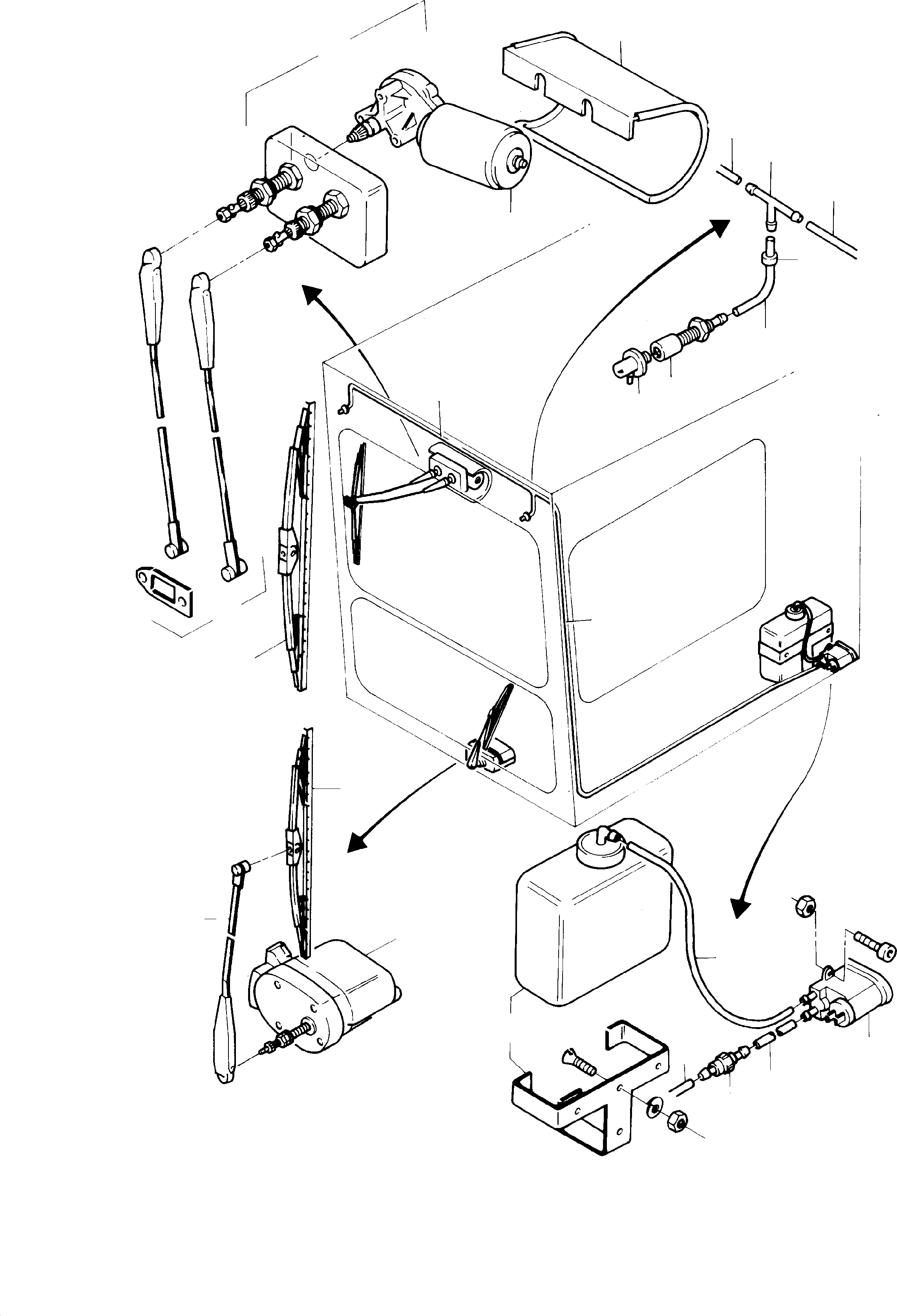

Komatsu parts book diagram for H285 S/N 78099: WINDSCREEN WASHING ASSY.

01 02 03 04 05 06 07 08 09 10 11 12 12 12 12 12 12 12 12 13 14 15 16

	#	Part Number	Partname	Quantity	Options	Reference
	01	255 348 40	Drive, assy.	1	InternBDB: SWF 104 387 \| InternKon: 322 668 40 / 11
	02		Wiper motor	1	InternBDB: 402 035
	03	322 582 40	Wiper arm, assy. 680 lg.	1	InternBDB: 104.168 \| InternKon: 322 668 40 / 12
	04	266 964 40	Wiper blade	1	InternBDB: WBP 103.605 \| InternKon: 322 668 40 / 13
	05	318 741 40	Engine covering	1	InternKon: 322 668 40 / 16
	06	058 453 40	Wiper motor 120 ?	1	InternBDB: SWF VSWL 400445 \| InternKon: 322 668 40 / 18
	07	269 616 40	Wiper arm with spring 350 lg.	1	InternBDB: SWF 104 623 \| InternKon: 322 668 40 / 19
	08	343 871 40	Wiper blade 400 lg.	1	InternBDB: SWF 104 570 \| InternKon: 322 668 40 / 20
	09	196 484 40	Water can 3,5 l	1	InternBDB: WRB 102 488 \| InternKon: 385 840 40 / 33
	10	196 482 40	Diaphragm pump	1	InternBDB: WPE 500 441 \| InternKon: 385 840 40 / 34
	11	196 485 40	Non-return valve	1	InternBDB: WRD 103 501 \| InternKon: 385 840 40 / 35
	12	196 488 40	Hose Ш 6 Bulk ware, state length required	-2	InternBDB: 6x1 PVC glasklar 6x1 /PVC glasklar \| InternKon: 385 840 40 / 36
	13	196 487 40	Distributor piece	1	InternBDB: WRD 199 855 \| InternKon: 385 700 40 / 95
	14	056 054 40	Grommet	2	InternBDB: KT 21 \| InternKon: 385 700 40 / 107
	15	365 106 40	Adapter	2	InternKon: 385 700 40 / 43
	16	226 972 40	Nozzle	2	InternBDB: WRD 100.078 \| InternKon: 385 700 40 / 94

Komatsu H285 S/N 78099 parts catalog PDF

WINDSCREEN WASHING ASSY. (114-1908) in H285 S/N 78099. Diagram image and parts list.
