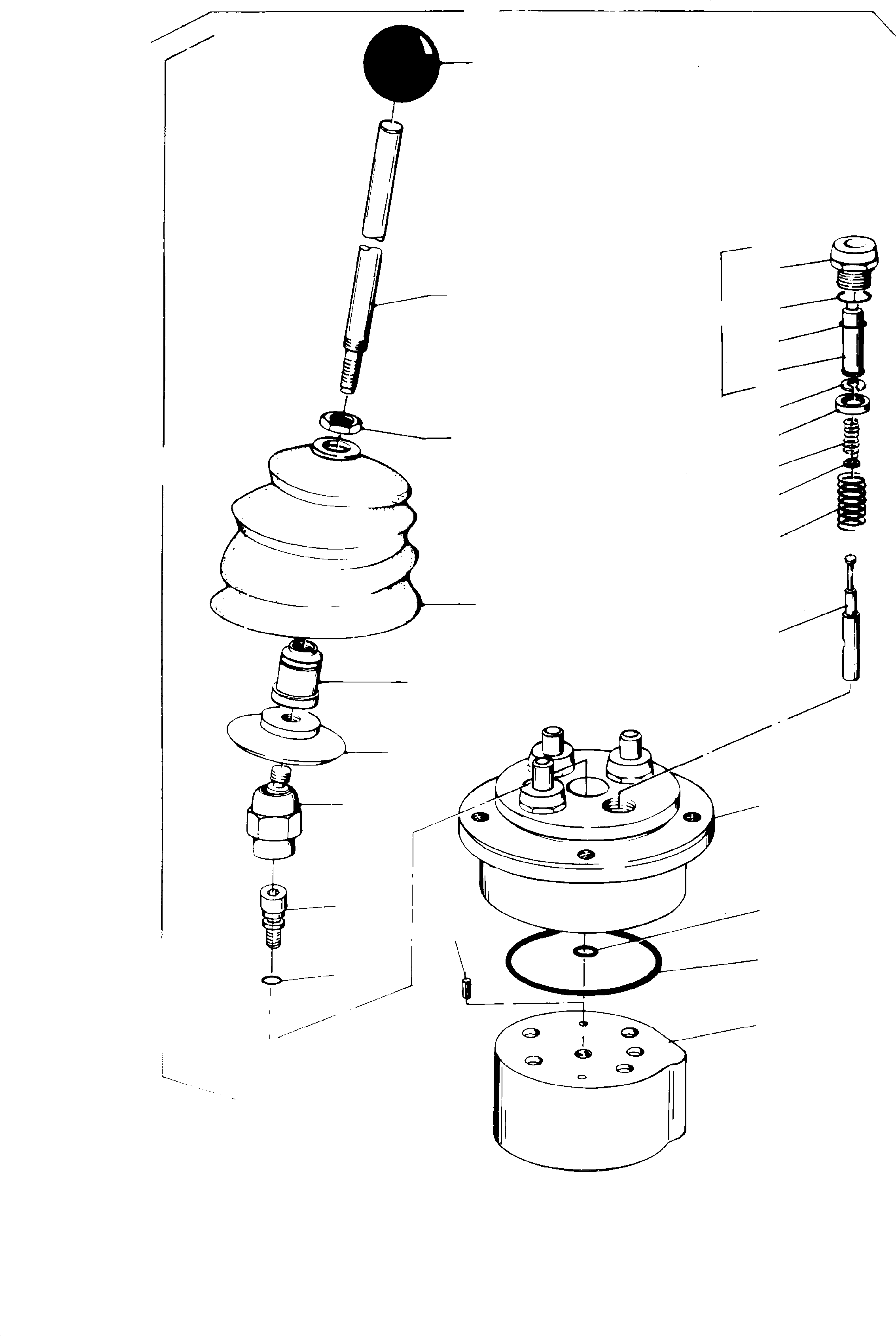

PILOT OIL UNIT | H285 S/N 78099 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	324 766 40	Pilot oil unit, assy.	1	InternBDB: Rexroth 4TH7 A06- 1x/1MS 262 AT-Nr. 668 998
02	994 964	Control element	1	InternBDB: 404 194.000
03	962 904	Ball handle	1	InternBDB: 110 938.099
04	994 342	Lever	1	InternBDB: 180 734.001
05	333 286 99	Nut	1	InternBDB: M12x1,75 111 366.099
06	962 878	Bellow	1	InternBDB: 180 774.000
07	962 879	Nut	1	InternBDB: 180 730.000
08	994 951	Shift disk	1	InternBDB: 184 472.000
09	994 961	Ball joint	1	InternBDB: 184 982.000
10		Screw These parts are not sold separately	1
11		O-ring These parts are not sold separately	1	InternBDB: 8,9x1,9
12		Lower housing These parts are not sold separately	1
13		O-ring These parts are not sold separately	1	InternBDB: 72,74x1,78
14		O-ring These parts are not sold separately	1	InternBDB: 14x2
15		Pin These parts are not sold separately	2	InternBDB: 13x5
16		Upper These parts are not sold separately	1	InternBDB: 184 486.001
17	756 426 73	Piston	4	InternBDB: 196 766.00 verlдngerter Kolben
18	690 822	Return spring	4	InternBDB: 180 627.001
19	994 954	Shim washer 0,1	-2	InternBDB: 181 213.000
20	994 955	Shim washer 0,2	-2	InternBDB: 181 214.000
21	989 568	Shim washer 0,5	-2	InternBDB: 182 646.000
22	995 962	Compression spring	4	InternBDB: 187 150.001
23	962 876	Spring plate	4	InternBDB: 180 718.001
24	962 875	Lock pad	4	InternBDB: 180 719.001
25	994 845	Control insert, assy.	4	InternBDB: 309 281.000
26		Tappet guide These parts are not sold separately	4
27		O-ring These parts are not sold separately	4	InternBDB: 14x2
28		Lip-type seal These parts are not sold separately	4	InternBDB: 10/13,6/2,3
29		Tappet These parts are not sold separately	4
\|$$30	994 963	Seal kit fig-nos: 10,11,13-15	-2	InternBDB: 309 754
