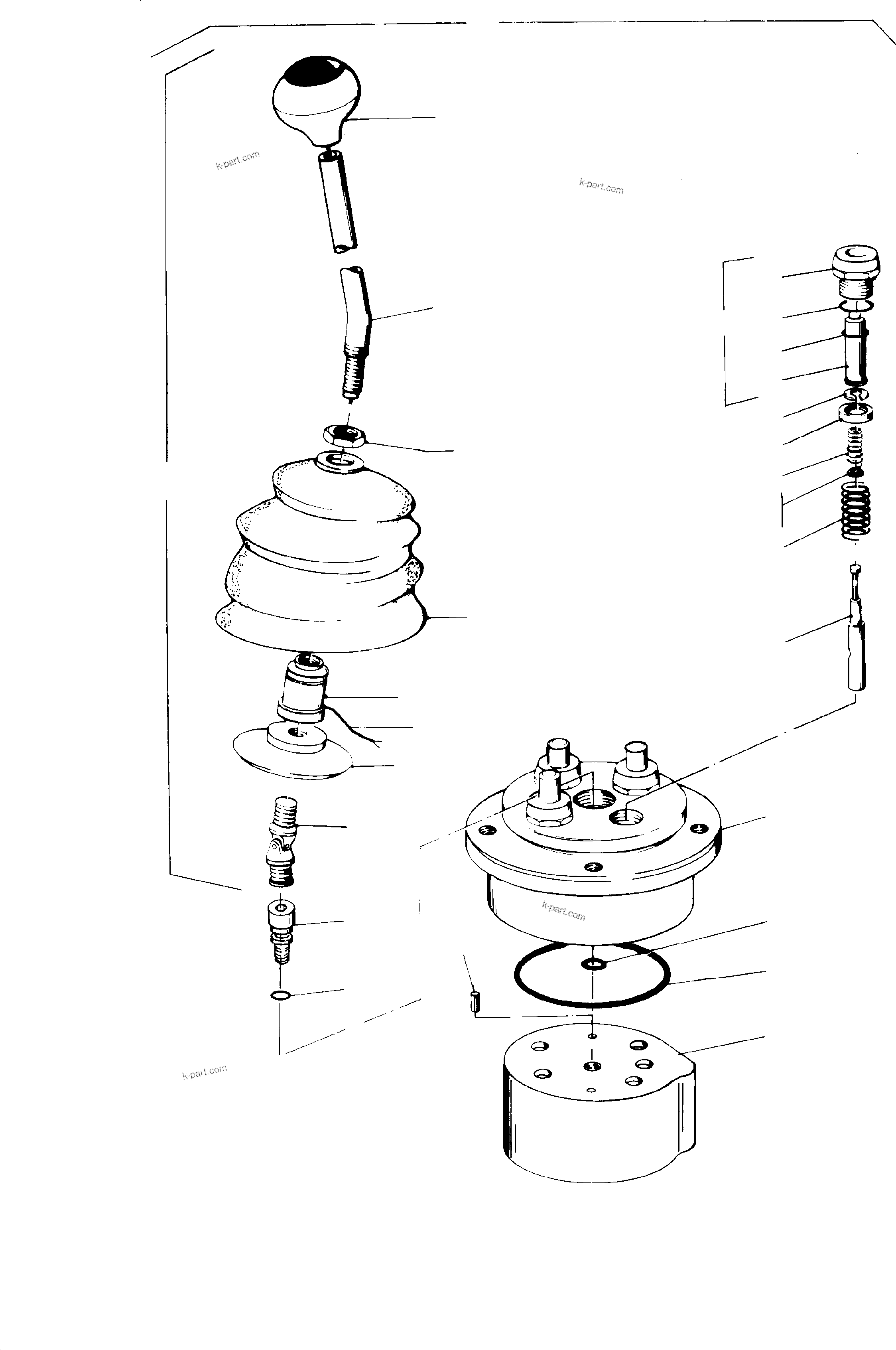

PILOT OIL UNIT | H285 S/N 78099 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
?	324 765 40	Pilot oil unit, assy.	-2	InternBDB: Rexroth 4TH7 C 06- 1x /1MS 261 AT-Nr.668 997
?	756 724 73	Control element	1	InternBDB: E-ST
?	242 840 40	Dead man's handle	1	InternBDB: 111 202.099
?	994 343	Lever	1	InternBDB: 14 ? 188 516.000
?	333 286 99	Nut	1	InternBDB: M12x1,75 111 366.099
?	962 878	Bellow	1	InternBDB: 180 774.000
?	994 949	Nut for electric connection	1	InternBDB: 182 888.001
?	994 950	Cable	1	InternBDB: 189 900.000
?	994 951	Shift disk	1	InternBDB: 184 472.000
?	994 952	Cardan	1	InternBDB: 184 983.000 M20x1 /M12x1,75
?		Screw These parts are not sold separately	1
?		O-ring These parts are not sold separately	1	InternBDB: 8,9x1,9
?		O-ring These parts are not sold separately	1	InternBDB: 72,74x1,78
?		O-ring These parts are not sold separately	1	InternBDB: 14x2
?		Lower housing These parts are not sold separately	1
?		Pin These parts are not sold separately	2	InternBDB: 13x5
?		Upper These parts are not sold separately	1	InternBDB: 184 486.001
?	756 426 73	Piston	4	InternBDB: 196.766.00 verlдngerter Kolben
?	690 822	Return spring	4	InternBDB: 180 627.001
?	994 954	Shim washer 0,1	-2	InternBDB: 181 213.000
?	994 955	Shim washer 0,2	-2	InternBDB: 181 214.000
?	989 568	Shim washer 0,5	-2	InternBDB: 182 646.000
?	995 962	Compression spring	4	InternBDB: 187 150.001
?	962 876	Spring plate	4	InternBDB: 180 718.001
?	962 875	Lock pad	4	InternBDB: 180 719.001
?	994 845	Control insert, assy.	4	InternBDB: 309 281.000
?		Tappet guide These parts are not sold separately	4
?		O-ring These parts are not sold separately	4	InternBDB: 14x2
?		Lip-type seal These parts are not sold separately	4	InternBDB: 10/13,6/2,3
?		Tappet These parts are not sold separately	4
?	994 963	Seal kit consist. of fig-nos: 11-14, 16	-2	InternBDB: 309 754
