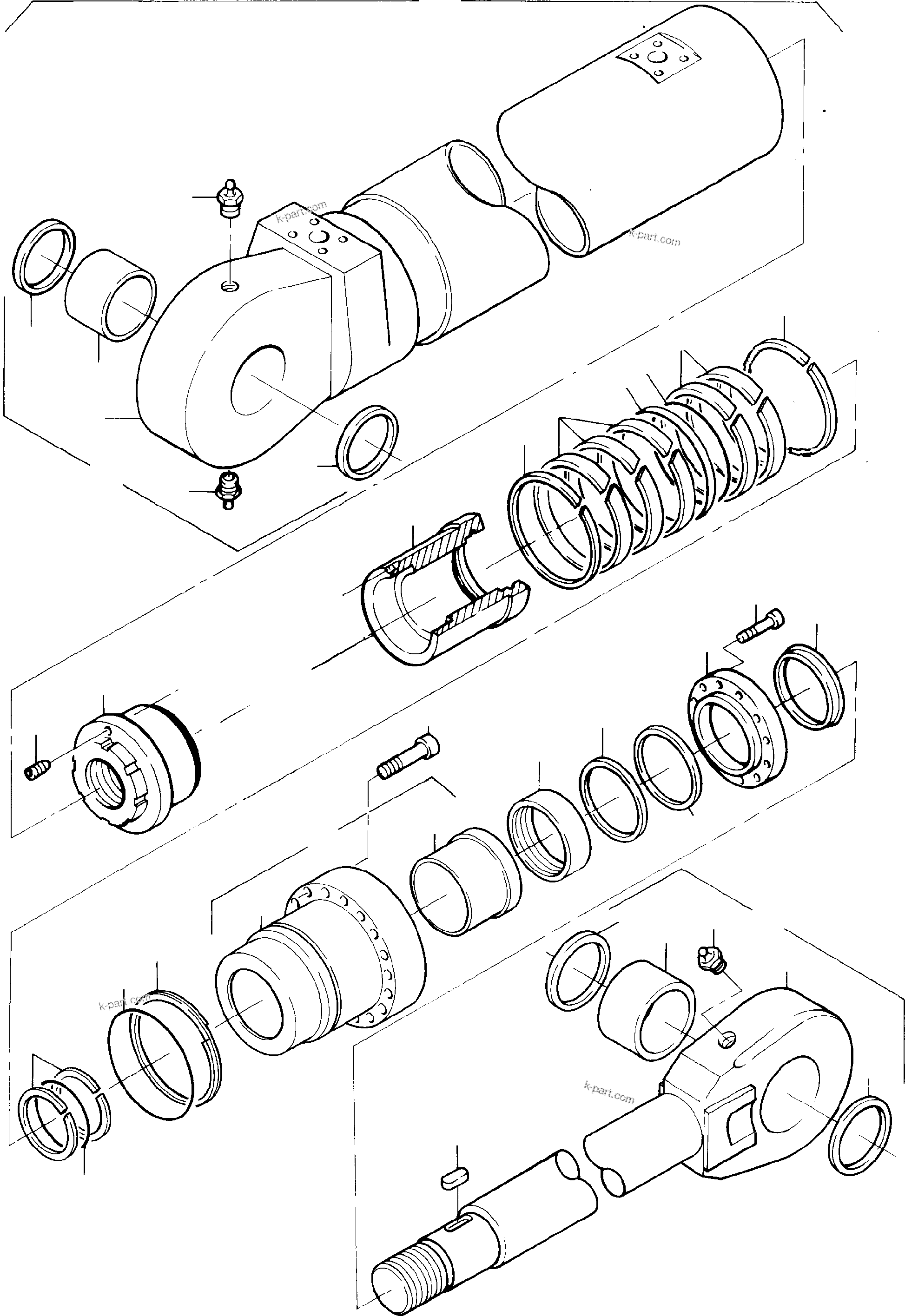

HYDRAULIC CYLINDER | H285 S/N 78099 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

H285 S/N 78099

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	627 570 40	Hydraulic cylinder assy. consist. of fig-no: 02-31	1	InternBDB: DBM 330x230x2575 AT-Nr. 710 170 73 \| InternKon: 314-4037 / 1
?	761 312 73	Cylinder assy. consist. of fig-no: 03-06	1	InternBDB: E-St
?		Cylinder These parts are not sold separately	1	InternBDB: 538 191 40 \| InternKon: 627 5705 40 / 1
?	309 446 40	Freeze-in bush	2	InternBDB: 200/171x154 \| InternKon: 627 5705 40 / 6
?	269 795 40	Stripper	4	InternBDB: Prдdifa 170x200x7,5 \| InternKon: 627 5705 40 / 20
?	004 860 98	Nipple	3	InternBDB: AR1/4" 011 207 99 \| InternKon: 627 5705 40 / 18
?	347 449 99	Thread pin	1	InternBDB: M16x40/915 \| InternKon: 627 5705 40 / 19
?	445 398 40	Groove nut	1	InternKon: 627 5705 40 / 5
?	538 196 40	Piston	1	InternKon: 627 5705 40 / 4
?	461 050 40	Piston guide 977 lg.	2	InternBDB: Bu. u. Lu. BS-50740-3300-A-47 9,5x4 \| InternKon: 627 5705 40 / 7
?	440 716 40	Piston guide	5	InternBDB: Bu. u. Lu. BI-50706-3300-A-900 \| InternKon: 627 5705 40 / 8
?	440 717 40	Seal	1	InternBDB: Bu. u. Lu. GS-55044-3300-46 N \| InternKon: 627 5705 40 / 9
?	502 670 98	O-ring	1	InternBDB: Bu. u. Lu. 453-8307 304,2x7,0 \| InternKon: 627 5705 40 / 10
?	256 250 40	Support ring	2	InternBDB: 230/239,4/1,7 423-923 PTFE \| InternKon: 627 5705 40 / 12
?	256 249 40	O-ring	1	InternBDB: Bu. u. Lu. 234,32x5,33 374-8307 \| InternKon: 627 5705 40 / 11
?	502 086 98	O-ring	1	InternBDB: 316,9x7 011 745 99 \| InternKon: 627 5705 40 / 14
?	440 715 40	Support ring	1	InternBDB: 317,8x330x1,25 \| InternKon: 627 5705 40 / 15
?	502 095 98	Screw	20	InternBDB: M30x160/912 -10.9-kaltzдh \| InternKon: 627 5705 40 / 16
?	627 043 40	Sealing flange consist. of fig-no: 22 and 23 (finish work after bush is installed)	1	InternKon: 627 5705 40 / 3
?	607 782 40	Bush	1	InternKon: 627 043 40 / 1
?	627 042 40	Bush	1	InternKon: 627 043 40 / 2
?	500 603 98	Seal kit	1	InternBDB: 230x260x65 WN 223 974 40 \| InternKon: 627 570 40 / 21
?	365 074 40	Support ring	1	InternKon: 627 570 40 / 23
?	607 774 40	Cover	1	InternKon: 627 570 40 / 22
?	501 395 98	Screw	16	InternBDB: M16x70/912 -10.9-kaltzдh \| InternKon: 627 570 40 / 24
?	256 252 40	Stripper	1	InternBDB: Prдdifa 230x250x20 \| InternKon: 627 570 40 / 13
?	501 352 98	Feather key	1	InternBDB: A20x12x60/ 6885 \| InternKon: 627 570 40 / 17
?	761 313 73	Piston rod assy. consist. of fig-no: 04-06 and 31	1	InternBDB: E-St
?		Piston rod These parts are not sold separately	1	InternBDB: 538 192 40 \| InternKon: 627 570 40 / 2
?	324 317 40	Shim 0	-2	InternBDB: Prдdifa ee 2300259 t
?	696 428 73	Sealing kit for piston consist. of fig.no. 12-17	-2	InternBDB: E-St
?	762 461 73	Sealing kit for sealing flange fig-no: 18, 19, 24 and 28	-2	InternBDB: E-St
