541 270 40
|

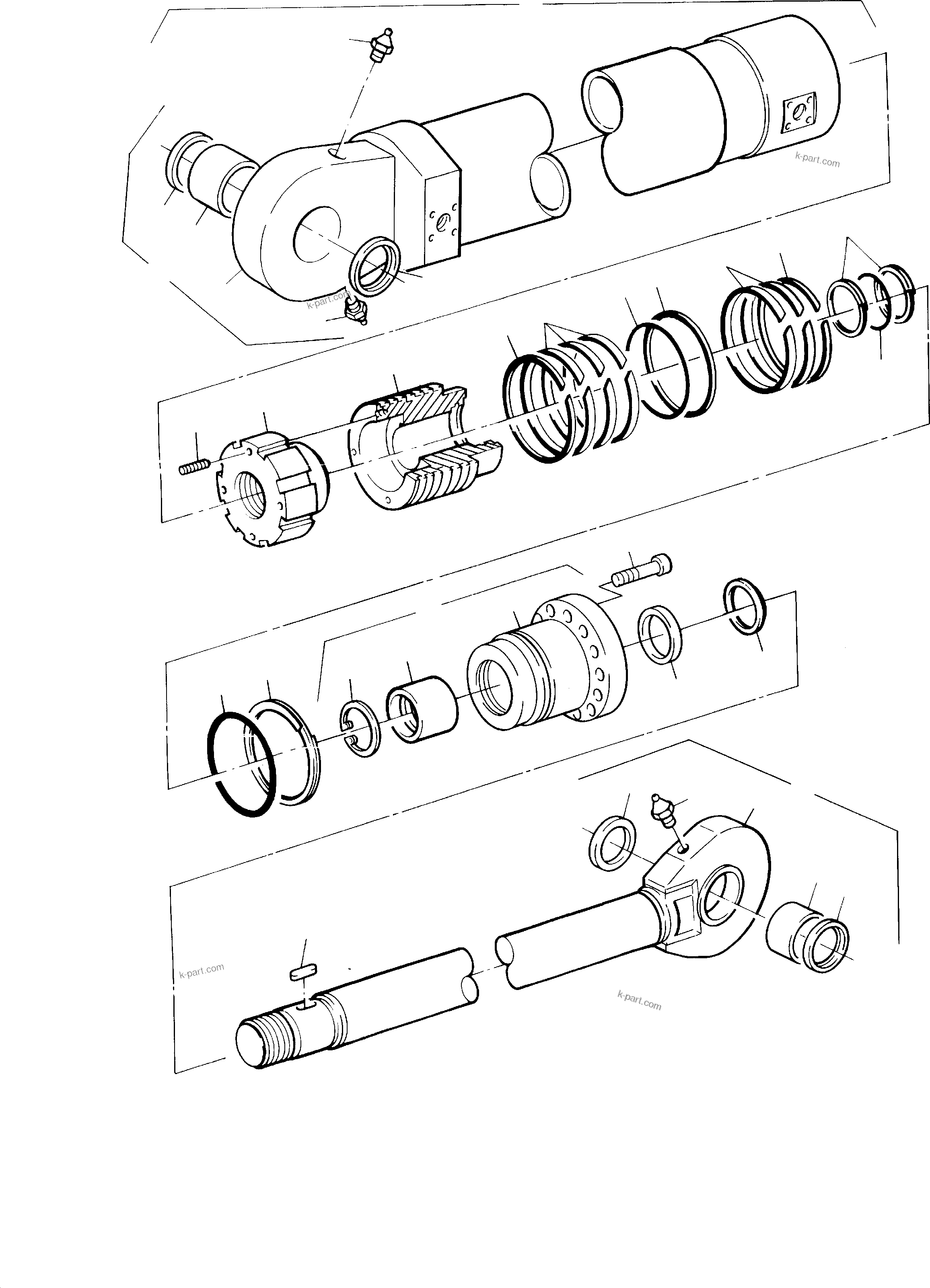

Hydraulic cylinder assy.
consist. of fig-no: 02-29 |
1 |
InternBDB: DBM 300x190x1225 AT-Nr. 669 914 73
|
|
|
|
? |
761 145 73
|
Cylinder assy.
consist. of fig-no: 03-06 |
1 |
InternBDB: E-St
|
|
|
|
? |
|
Cylinder
These parts are not sold
separately |
1 |
InternBDB: 508 706 40 | InternKon: 541 270 40 / 1
|
|
|
|
? |
304 113 40
|
Freeze-in bush |
1 |
InternBDB: 180/160x154 | InternKon: 541 270 40 / 6
|
|
|
|
? |
269 866 40
|
Stripper |
2 |
InternBDB: Prдdifa 180x160x7,5 | InternKon: 541 270 40 / 22
|
|
|
|
? |
004 860 98
|
Nipple |
3 |
InternBDB: AR1/4" 011 207 99 | InternKon: 541 270 40 / 21
|
|
|
|
? |
347 449 99
|
Thread pin |
1 |
InternBDB: M16x40/915 | InternKon: 541 270 40 / 8
|
|
|
|
? |
508 789 40
|
Groove nut |
1 |
InternKon: 541 270 40 / 5
|
|
|
|
? |
508 783 40
|
Piston |
1 |
InternKon: 541 270 40 / 4
|
|
|
|
? |
269 477 40
|
Piston slyding strip 915 lg. |
2 |
InternBDB: Bu. u. Lu. BS-50740-3000 -A-47-9,5x4 | InternKon: 541 270 40 / 11
|
|
|
|
? |
256 153 40
|
Piston wear-ring |
5 |
InternBDB: Bu. u. Lu. BS-50706- 3000-A-900 24,5x2,5 | InternKon: 541 270 40 / 10
|
|
|
|
? |
269 474 40
|
Seal |
1 |
InternBDB: Bu. u. Lu. S-55042-3000- 46N | InternKon: 541 270 40 / 12
|
|
|
|
? |
269 476 40
|
O-ring |
1 |
InternBDB: Bu. u. Lu. 450-8307 266,07x7,0 | InternKon: 541 270 40 / 13
|
|
|
|
? |
256 154 40
|
Back-up ring |
2 |
InternBDB: Bu. u. Lu. SG-190/199,4/1,7/P | InternKon: 541 270 40 / 15
|
|
|
|
? |
256 152 40
|
O-ring |
1 |
InternBDB: 189,87x5,33 NB70 | InternKon: 541 270 40 / 14
|
|
|
|
? |
007 631 98
|
O-ring |
1 |
InternBDB: 289,3x5,7NB90 011 745 99 | InternKon: 541 270 40 / 16
|
|
|
|
? |
226 422 40
|
Back-up ring |
1 |
InternBDB: Bu. u. Lu. P289,8x300x1 SP-289,8/300/ 1,0/P | InternKon: 541 270 40 / 17
|
|
|
|
? |
502 095 98
|
Bolt |
18 |
InternBDB: M30x160/912 -10.9 Kaltzдh | InternKon: 541 270 40 / 20
|
|
|
|
? |
508 785 40
|
Sealing flange
consist. of fig.-nos: 20-22
(finish work after bush is
installed) |
1 |
InternKon: 541 270 40 / 3
|
|
|
|
? |
508 791 40
|
Bush |
1 |
InternKon: 508 785 40 / 1
|
|
|
|
? |
508 794 40
|
Bush |
1 |
InternKon: 508 785 40 / 2
|
|
|
|
? |
342 603 99
|
Circlip |
1 |
InternBDB: 215x5/472 | InternKon: 508 785 40 / 3
|
|
|
|
? |
440 709 40
|
Rod seal |
1 |
InternBDB: Prдdifa BD 042 0190 | InternKon: 541 270 40 / 18
|
|
|
|
? |
440 711 40
|
Stripper |
1 |
InternBDB: Prдdifa A1 U28 KO 15 | InternKon: 541 270 40 / 19
|
|
|
|
? |
501 352 98
|
Feather key |
1 |
InternBDB: A20x12x60/ 6885 | InternKon: 541 270 40 / 9
|
|
|
|
? |
761 294 73
|
Piston rod assy.
consist. of fig-nos: 06, 27-29 |
1 |
InternBDB: E-St
|
|
|
|
? |
|
Piston rod
These parts are not sold
separately |
1 |
InternBDB: 538 198 40 | InternKon: 541 270 40 / 2
|
|
|
|
? |
269 795 40
|
Stripper |
2 |
InternBDB: Prдdifa 170x200x7,5 | InternKon: 541 270 40 / 23
|
|
|
|
? |
309 446 40
|
Freeze-in bush |
1 |
InternBDB: 200/171x154 | InternKon: 541 270 40 / 7
|
|
|
|
? |
691 779
|
Sealing kit for piston
consist. of fig-nos: 10-15 |
-2 |
InternBDB: E-St
|
|
|
|
? |
696 430 73
|
Sealing kit for sealing flange
consist. of fig-nos: 16,17,23+24 |
-2 |
InternBDB: E-St
|
|
