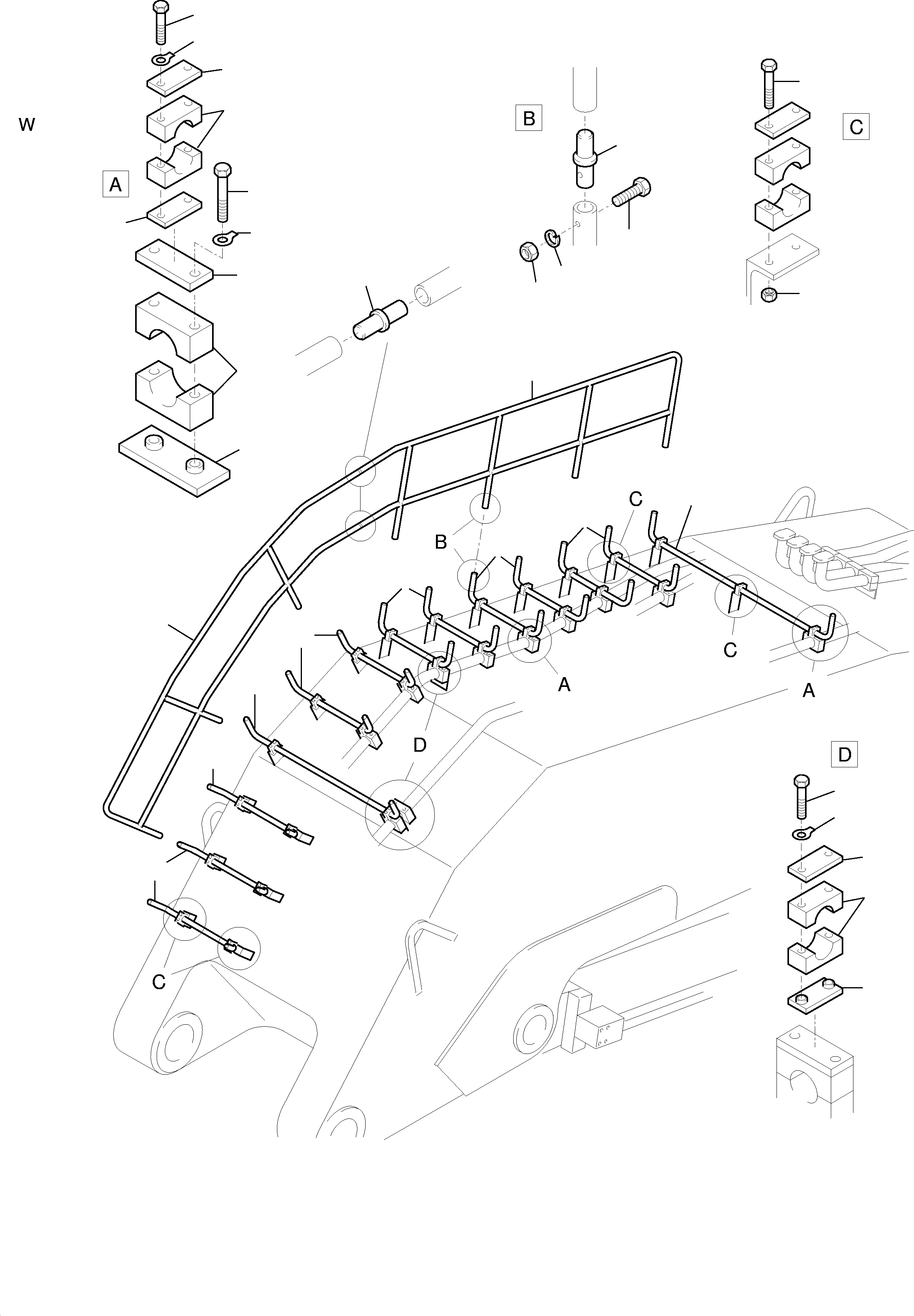

BOOM - CATWALK | H455S S/N 15005 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	763 476 73	Rail	1	InternBDB: E-ST \| InternKon: 651 390 40 / 01
02	763 477 73	Rail	1	InternBDB: E-ST \| InternKon: 651 390 40 / 02
03	652 198 40	Pipe	10	InternKon: 651 390 40 / 6
04	652 199 40	Pipe	1	InternKon: 651 390 40 / 7
05	653 102 40	Pipe	1	InternKon: 651 390 40 / 8
06	621 104 40	Pin	2	InternKon: 651 390 40 / 12
07	621 105 40	Pin	7	InternKon: 651 390 40 / 13
08	308 554 99	Bolt	7	InternBDB: M8x40 /931 \| InternKon: 651 390 40 / 14
09	332 111 99	Nut	7	InternBDB: M 8 /934 \| InternKon: 651 390 40 / 15
10	346 510 99	Lock washer	7	InternBDB: A 8 /128 \| InternKon: 651 390 40 / 16
11	534 009 99	Plate	12	InternBDB: S-AP-A-4 /3015 \| InternKon: 651 390 40 / 18
12	504 445 98	Half clamp	12	InternBDB: S-4-R-65 /3015 \| InternKon: 651 390 40 / 19
13	534 008 99	Plate	12	InternBDB: S-DP-A-4 \| InternKon: 651 390 40 / 20
14	308 599 99	Bolt	24	InternBDB: M12x105 /931 \| InternKon: 651 390 40 / 21
15	509 310 98	Locking plate	12	InternBDB: SI 6 /011 839 99 \| InternKon: 651 390 40 / 22
16	308 579 99	Bolt	28	InternBDB: M10x60 /931 \| InternKon: 651 390 40 / 23
17	509 308 98	Locking plate	14	InternBDB: SI 4 \| InternKon: 651 390 40 / 24
18	534 001 99	Plate	31	InternBDB: S-DP-A-2 /3015 \| InternKon: 651 390 40 / 25
19	504 225 98	Half clamp	31	InternBDB: S-2-R-30 /3015 \| InternKon: 651 390 40 / 26
20	534 002 99	Plate	14	InternBDB: S-AP-A-2 /3015 \| InternKon: 651 390 40 / 27
21	307 789 99	Bolt	26	InternBDB: M10x80 /933 \| InternKon: 651 390 40 / 29
22	332 113 99	Nut	26	InternBDB: M 10 /934 \| InternKon: 651 390 40 / 30
23	653 137 40	Pipe	1	InternKon: 651 390 40 / 32
