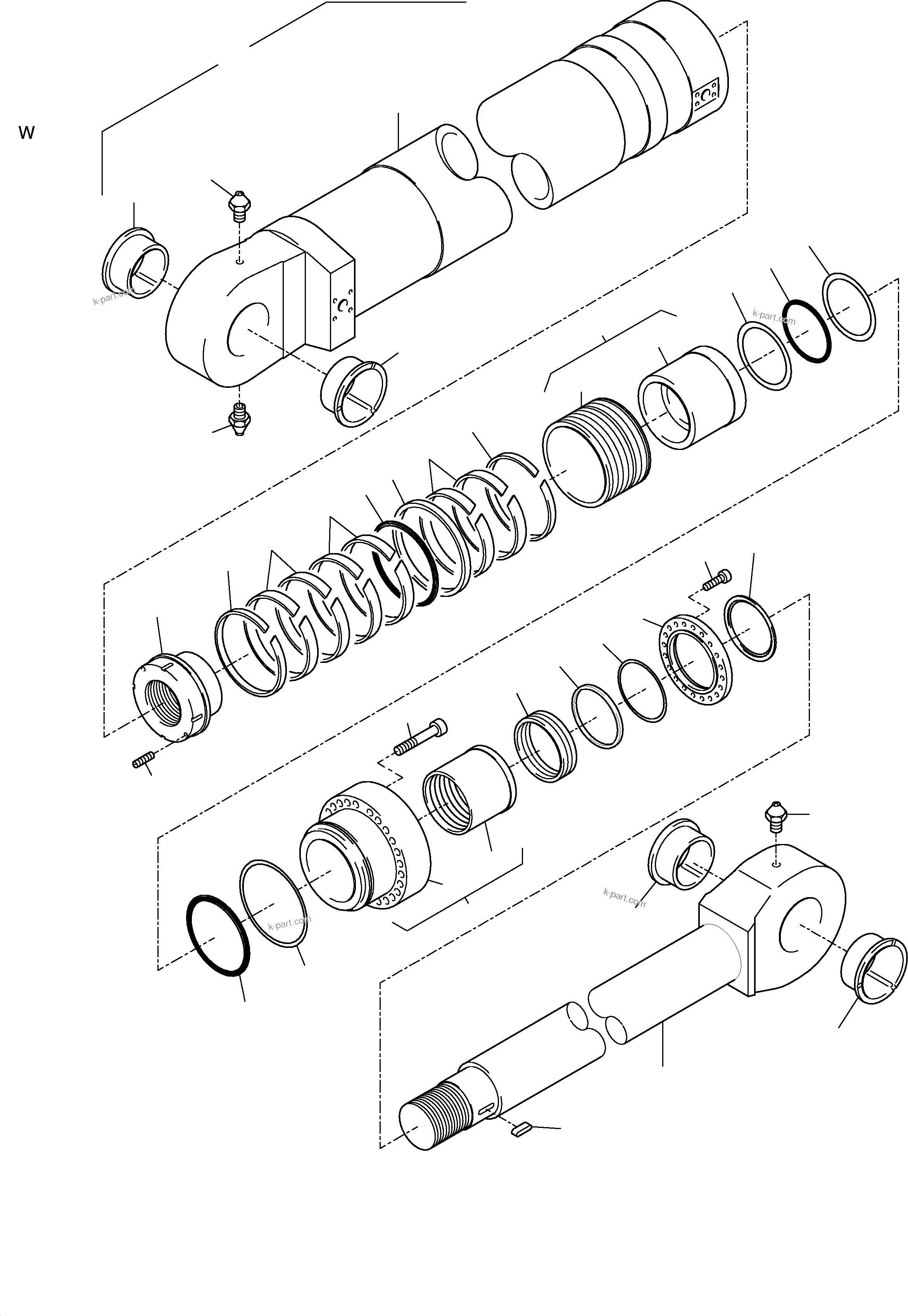

HYDRAULIC CYLINDER | H455S S/N 15005 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

H455S S/N 15005

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	607 730 40	Hydraulic cylinder assy. fig-nos: 02-30	1	InternBDB: DBM 380x250x3235 AT-Nr. 710 416 73 \| InternKon: 515-4035 / 1
?	763 303 73	Cylinder assy. fig-nos: 03-05	1	InternBDB: E-St
?		Cylinder These parts are not sold separately	1	InternBDB: 365 054 40 \| InternKon: 607 730 40 / 1
?	607 769 40	Freeze-in bush	4	InternBDB: Ш 210 \| InternKon: 607 730 40 / 8
?	004 860 98	Nipple	3	InternBDB: AR1/4" 011 207 99 \| InternKon: 607 730 40 / 23
?	347 449 99	Thread pin	1	InternBDB: M16x40/915 \| InternKon: 607 730 40 / 22
?	607 739 40	Groove nut	1	InternKon: 607 730 40 / 5
?	635 474 40	Piston guide	2	InternBDB: Bu.u.Lu. BS 50740-0380-A-47 \| InternKon: 607 730 40 / 12
?	621 353 40	Piston guide	6	InternBDB: Bu. u. Lu. BI-50706-3800-A-900 \| InternKon: 607 730 40 / 11
?	506 841 98	O-ring	1	InternBDB: 354,97x7,0 \| InternKon: 607 730 40 / 10
?	621 352 40	Seal	1	InternBDB: Bu. u. Lu. GS-55042-3800-46N \| InternKon: 607 730 40 / 9
?	607 744 40	Piston assy. fig-nos. 13 and 14 (finish work after bush is (installed)	1	InternKon: 607 730 40 / 3
?		Piston bush These parts are not sold separately	1	InternBDB: 607 737 40 \| InternKon: 607 744 40 / 2
?		Piston These parts are not sold separately	1	InternBDB: 607 742 40 \| InternKon: 607 744 40 / 1
?	269 577 40	O-ring	1	InternBDB: 367,67x7,0 \| InternKon: 607 730 40 / 17
?	414 051 40	Support ring	2	InternBDB: SP 250-259 \| InternKon: 607 730 40 / 18
?	269 577 40	O-ring	1	InternBDB: 367,67x7,0 \| InternKon: 607 730 40 / 15
?	621 355 40	Support ring	1	InternBDB: SS 11109-458-P \| InternKon: 607 730 40 / 16
?	607 741 40	Sealing flange fig-nos: 20 and 21 (finish work after bush is installed)	1	InternKon: 607 730 40 / 4
?		Bush These parts are not sold separately	1	InternBDB: 607 752 40 \| InternKon: 607 741 40 / 1
?	607 766 40	Bush	1	InternKon: 607 741 40 / 2
?	511 722 98	Screw	26	InternBDB: M30x180/912 -10.9 Kaltzдh \| InternKon: 607 730 40 / 20
?	505 164 98	Seal kit	1	InternBDB: 250x280x55,5 \| InternKon: 607 730 40 / 13
?	607 767 40	Support ring	1	InternKon: 607 730 40 / 7
?	607 768 40	Cover	1	InternKon: 607 730 40 / 6
?	504 574 98	Screw	20	InternBDB: M16x80/912 -10.9 Kaltzдh \| InternKon: 607 730 40 / 21
?	621 354 40	Stripper	1	InternBDB: Merkel PG 250/270x18 \| InternKon: 607 730 40 / 14
?	354 507 99	Feather key	1	InternBDB: A20x12x88/ 6885 \| InternKon: 607 730 40 / 19
?	763 304 73	Piston rod assy. fig-nos: 04,05 and 30	1	InternBDB: E-St
?		Piston rod These parts are not sold separately	1	InternBDB: 607 729 40 \| InternKon: 607 730 40 / 2
?		Shim	-2	InternBDB: Prдdifa
?	763 301 73	Seal kit for piston fig-nos. 08-11,15 and 16	-2	InternBDB: E-St
?	763 302 73	Seal kit for sealing flange fig-nos: 17,18,23 and 27	-2	InternBDB: E-St
