H135S S/N 61064

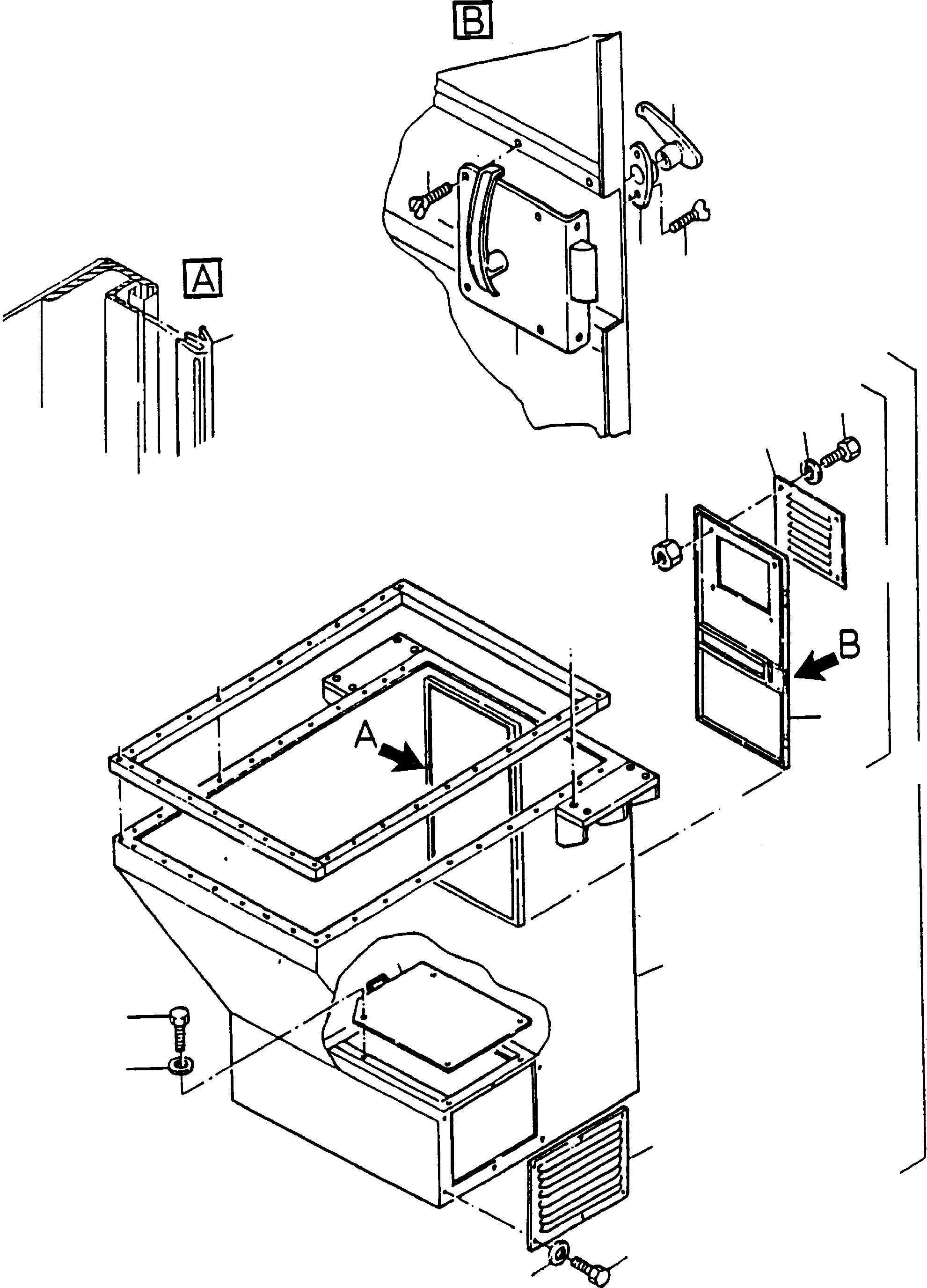

Komatsu parts book diagram for H135S S/N 61064: CAB SUPPORT

01 02 03 04 05 06 09 10 10 12 13 14 15 16 17 18 19 19 20 20

	#	Part Number	Partname	Quantity	Options	Reference
	01	427 900 40	Pedestal assy.	1	InternKon: 410 878 40 / 5
	02	410 000 40	Pedestal	1	InternKon: 427 900 40 / 1
	03	427 939 40	Door assy.	1	InternKon: 427 900 40 / 4
	04	294 022 40	Gill breather	1	InternKon: 427 900 40 / 5
	05	427 942 40	Gill breather	1	InternKon: 427 900 40 / 6
	06	427 937 40	Cover	1	InternKon: 427 900 40 / 7
	09	307 779 99	Bolt	4	InternBDB: M10x30 /933 \| InternKon: 427 900 40 / 13
	10	307 752 99	Bolt	10	InternBDB: M8x20 /933 8.8 \| InternKon: 427 900 40 / 15
	12	346 500 99	Lock washer	4	InternBDB: 10 /128 \| InternKon: 427 900 40 / 14
	13	332 111 99	Nut	4	InternBDB: M 8 /934 \| InternKon: 427 900 40 / 17
	14	167 694 40	Profiled joint Bulk ware, state length required	-2	InternBDB: GHE \| InternKon: 427 900 40 / 18
	15	427 940 40	Door	1	InternKon: 427 939 40 / 1
	16	081 238 40	Door lock	1	InternBDB: GHE 600 0186 \| InternKon: 427 939 40 / 2
	17	081 239 40	Handle	1	InternBDB: 580 0039 \| InternKon: 427 939 40 / 3
	18	236 040 40	Fitting	1	InternBDB: 580 0181 \| InternKon: 427 939 40 / 4
	19	318 375 99	Bolt	6	InternBDB: M5x16 /963 \| InternKon: 427 939 40 / 5
	20	346 510 99	Lock washer	10	InternBDB: 8 /128 \| InternKon: 427 900 40 / 16

Komatsu H135S S/N 61064 parts catalog PDF

CAB SUPPORT (116-1920a) in H135S S/N 61064. Diagram image and parts list.
