H135S S/N 61064

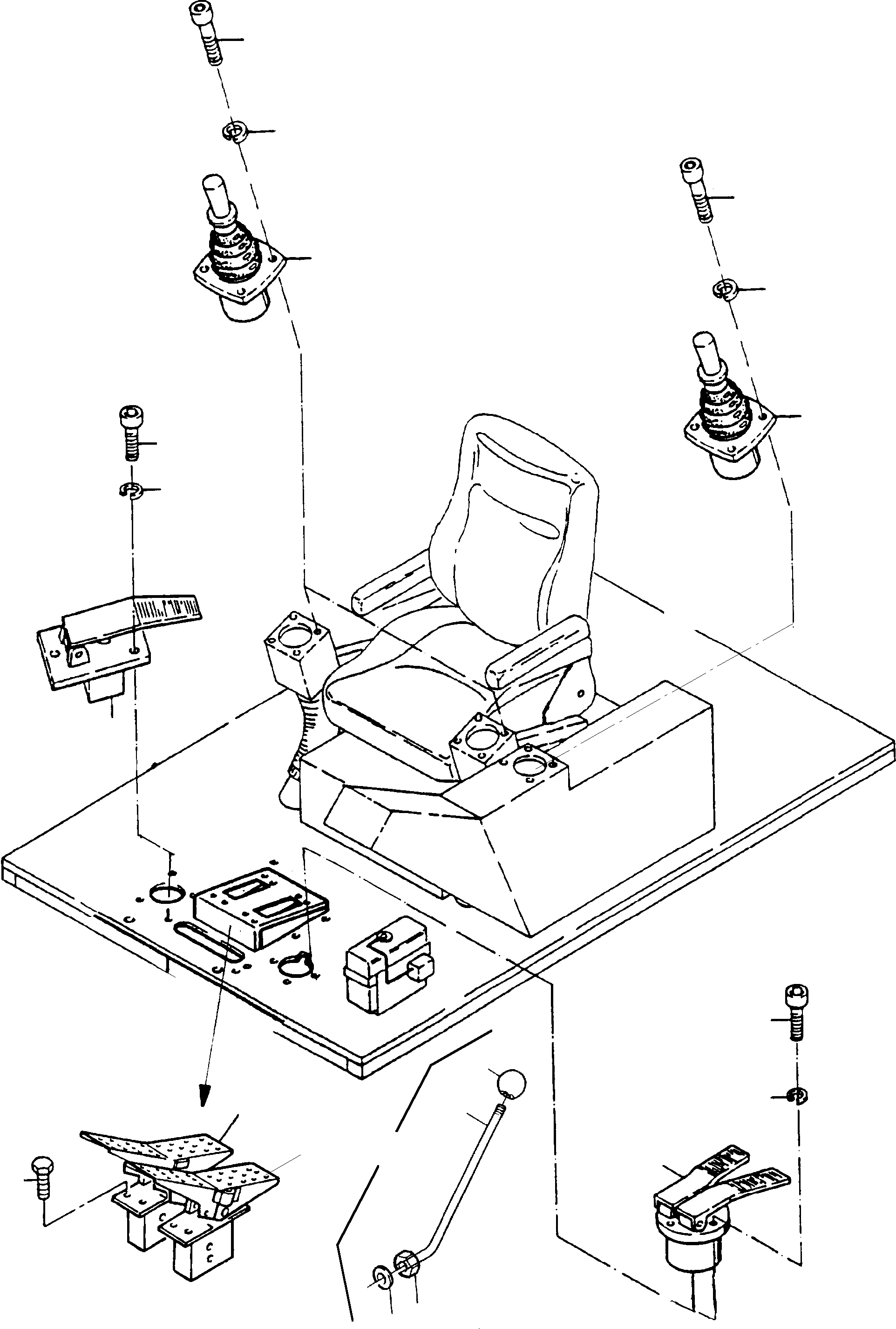

Komatsu parts book diagram for H135S S/N 61064: PILOT CONTROL ARR.

01 02 03 04 05 05 06 06 06 07 08 09 09 10 11 12 15 16 17 18 19

	#	Part Number	Partname	Quantity	Options	Reference
	01		Pilot oil unit	1	InternBDB: 635 229 40 \| InternKon: 651 673 40 / 26	090-3194
	02		Pilot oil unit	1	InternBDB: 604 750 40 \| InternKon: 651 673 40 / 3	090-2863
	03		Pilot oil unit	1	InternKon: 651 675 40 / 33
	04		Pilot oil unit	1	InternBDB: 346 567 40 \| InternKon: 651 673 40 / 4	090-0441
	05	320 214 99	Screw	8	InternBDB: M6x20 /912 \| InternKon: 651 673 40 / 19
	06	343 853 99	Lock washer	11	InternBDB: 6 /7980 \| InternKon: 651 673 40 / 23
	07	504 135 98	Screw	3	InternBDB: M6x55 /912 \| InternKon: 651 675 40 / 36
	08	307 425 99	Bolt	3	InternBDB: M8x20 /933 \| InternKon: 651 673 40 / 24
	09	346 510 99	Lock washer	11	InternBDB: 8 /128 \| InternKon: 651 673 40 / 25
	10	377 750 99	Bolt	8	InternBDB: M8x16 /933 \| InternKon: 651 673 40 / 30
	11		Pilot oil unit	1	InternBDB: 635 228 40 \| InternKon: 651 673 40 / 1	090-3193
	12		Pilot oil unit	1	InternBDB: 627 291 40 TL /604 750 40 \| InternKon: 651 673 40 / 2	090-2863
	15	651 554 40	Pedal control assy.	1
	16	651 553 40	Rod	2
	17	399 588 99	Ball knob	2	InternBDB: C 40 /319
	18	332 334 99	Nut	2	InternBDB: M 12 /934
	19	340 467 99	Washer	2	InternBDB: B 13,0 /125
