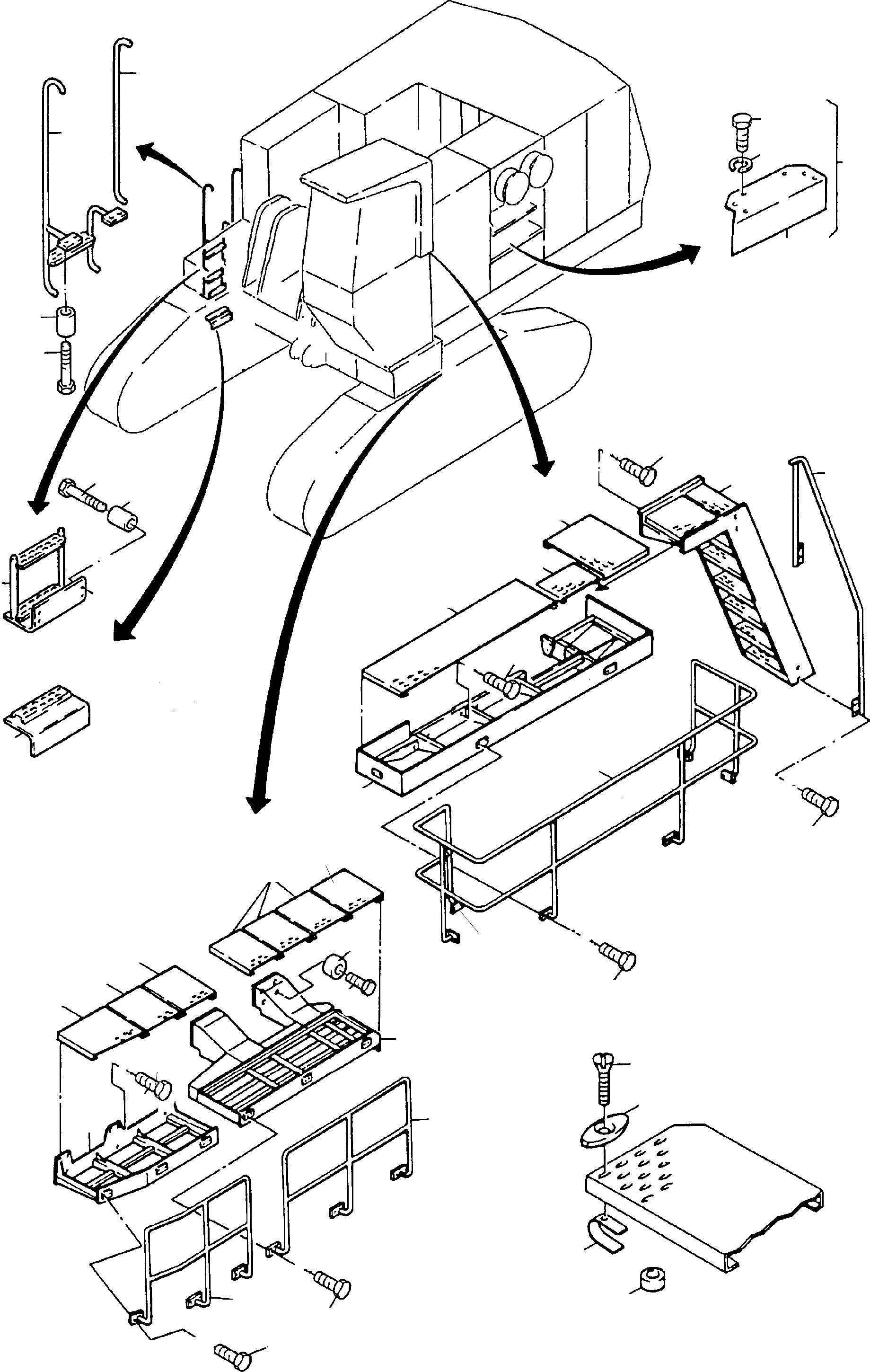

LADDERS | H135S S/N 61064 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	431 837 40	Grating	1	InternKon: 646 752 40 / 14
02	323 652 40	Grating	2	InternKon: 646 752 40 / 10
03	317 302 40	Grating	4	InternKon: 646 752 40 / 9
04	439 801 40	Catwalk	1	InternKon: 646 752 40 / 4
05	324 379 40	Grating	1	InternKon: 646 752 40 / 13
06	323 267 40	Grating	1	InternKon: 646 752 40 / 12
07	323 315 40	Grating	1	InternKon: 646 752 40 / 11
08	307 438 99	Bolt	8	InternBDB: M12x55/933 10.9 \| InternKon: 646 752 40 / 41
09	510 744 98	Resilient sleeve 13/25x32	26	InternBDB: WN 341 948 40 \| InternKon: 646 752 40 / 40
10	431 874 40	Stairway	1	InternKon: 646 752 40 / 3
11	643 856 40	Rail	1	InternKon: 646 752 40 / 17
12	646 873 40	Rail	1	InternKon: 646 752 40 / 15
13	651 646 40	Platform	1	InternKon: 646 752 40 / 1
14	646 871 40	Rail	1	InternKon: 646 752 40 / 6
15	646 862 40	Rail	1	InternKon: 646 752 40 / 16
16	431 870 40	Platform	1	InternKon: 646 752 40 / 2
17	308 634 99	Bolt	24	InternBDB: M16x70/933 \| InternKon: 646 752 40 / 38
18	510 729 98	Resilient sleeve 17/30x35	24	InternBDB: WN 341 948 40 \| InternKon: 646 752 40 / 39
19	308 416 99	Bolt	8	InternBDB: M20x70 /931 10.9 \| InternKon: 646 752 40 / 37
20	514 056 98	Resilient sleeve 21/35x20	8	InternBDB: WN 341 948 40 \| InternKon: 646 752 40 / 36
21	317 319 40	Thread piece	-2	InternKon: 646 752 40 / 28
22	317 318 40	Olive	-2	InternKon: 646 752 40 / 29
23	502 354 98	Screw	-2	InternBDB: M8x40/963 \| InternKon: 646 752 40 / 30
24	308 605 99	Bolt	26	InternBDB: M12x55/931 \| InternKon: 646 752 40 / 51
25	307 802 99	Bolt	4	InternBDB: M12x25 /933 \| InternKon: 646 752 40 / 49
26	414 516 40	Clip	-2
27	334 600 99	Nut	4	InternBDB: M 12 /985 \| InternKon: 646 752 40 / 50
30	457 994 40	Protection cover assy.	1
31	457 990 40	Protection cover	1	InternKon: 457 994 40 / 1
32	307 750 99	Bolt	6	InternBDB: M8x15 /933 \| InternKon: 457 994 40 / 5
33	346 510 99	Lock washer	6	InternBDB: 8 /128 \| InternKon: 457 994 40 / 6
35	457 998 40	Protection cover assy.	1
36	457 995 40	Protection cover	1	InternKon: 457 998 40 / 1
40	608 408 40	Ladder	1	InternKon: 608 400 40 / 1
41	608 404 40	Ladder	1	InternKon: 608 400 40 / 2
42	608 402 40	Ladder	1	InternKon: 608 400 40 / 3
43	608 450 40	Rail	1	InternKon: 608 400 40 / 4
44	516 801 40	Resilient sleeve	8	InternKon: 608 400 40 / 7
45	500 814 98	Bolt	4	InternBDB: M12x60 /931 \| InternKon: 608 400 40 / 8
46	308 605 99	Bolt	4	InternBDB: M12x55 /931 \| InternKon: 608 400 40 / 9
