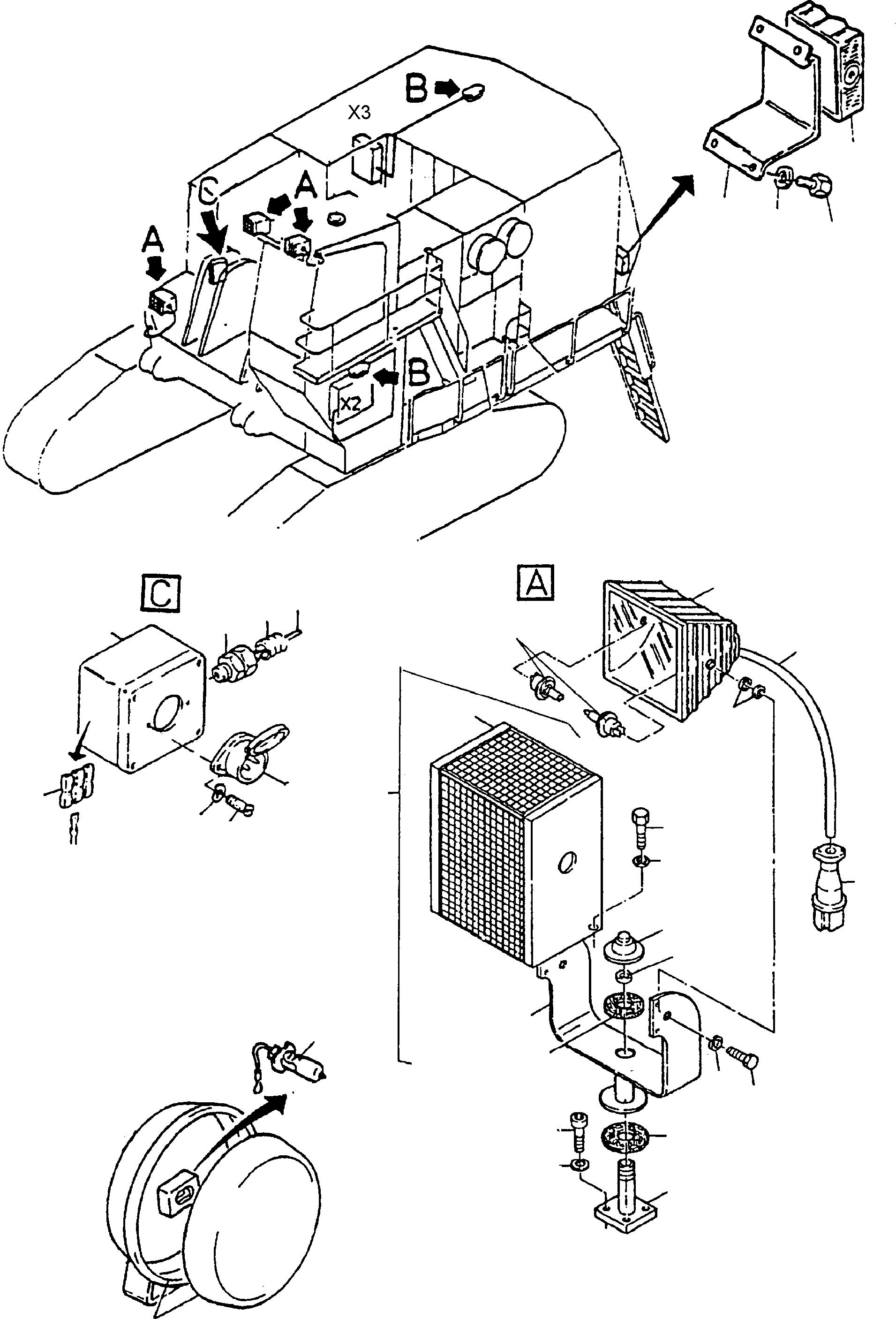

STANDARD LIGHTING EQUIPMENT | H135S S/N 61064 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	634 009 40	Spotlight	3	InternBDB: ABL /AB-5-03 \| InternKon: 431 196 40 / 15
02	507 383 99	Halogen lamp	3	InternBDB: ABL 11-50320 /H1, 24V 70W
03	320 977 99	Screw	2	InternBDB: AM 4x25 /84
04	346 408 99	Lock washer	2	InternBDB: 4 /128
05	057 296 40	Cable connector	-2
06	057 295 40	Socket	1	InternBDB: Bosch 0 332 030 002
07	255 034 40	Housing, empty	1	InternBDB: Bopla A 105
08	323 950 40	Cable union	1	InternBDB: PG 9/ 5010.100.009
09	356 238 40	Conduit Bulk ware, state length required	-2	InternBDB: PG 9 Sievert 2010.101.010
10	471 861 99	Cable Bulk ware, state length required	-2	InternBDB: blau 12
14	471 915 99	Cable Bulk ware, state length required	-2	InternBDB: 4x1,5
15	057 245 40	Plug 4-pol.	3	InternBDB: Bosch 0352 130 001
16	400 830 40	Headlamp housing, assy. fig-nos. 17-30	3
17	403 524 40	Protection casing	1	InternKon: 400 830 40 / 2
18	329 002 40	Head light mount	1	InternKon: 400 830 40 / 3
19	329 003 40	Support	1	InternKon: 400 830 40 / 4
20	329 004 40	Lock washer	1	InternKon: 400 830 40 / 5
21	329 005 40	Lock washer	1	InternKon: 400 830 40 / 6
22	342 096 40	Disk	1	InternKon: 400 830 40 / 7
23	340 409 99	Washer	1	InternBDB: 15 /433 \| InternKon: 400 830 40 / 9
24	340 467 99	Washer	4	InternBDB: 13 /125 \| InternKon: 400 830 40 / 10
25	307 802 99	Bolt	2	InternBDB: M12x25 /933 \| InternKon: 400 830 40 / 11
26	343 112 99	Lock washer	2	InternBDB: 12 /128 \| InternKon: 400 830 40 / 12
27	320 343 99	Screw	4	InternBDB: M10x15 /6912 \| InternKon: 400 830 40 / 15
28	346 500 99	Lock washer	4	InternBDB: 10 /128 \| InternKon: 400 830 40 / 16
29	307 339 99	Bolt	2	InternBDB: M12x15 /933 \| InternKon: 400 830 40 / 13
30	343 006 99	Washer	2	InternBDB: 13 /93 \| InternKon: 400 830 40 / 14
31	256 297 40	Headlamp	3	InternBDB: Schmidt 2x100 W PSH 500 24V
32	269 021 40	Halogen lamp 100 W /24 V	6	InternBDB: QJ 100W /24V Osram - 64460
33	318 719 40	Retainer	2	InternKon: 410 877 40 / 6
34	323 093 40	Rear reflector, red	2	InternBDB: Hella 8RA 003 660- 007 \| InternKon: 410 877 40 / 7
35	307 299 99	Bolt	8	InternBDB: M8x10 /933 \| InternKon: 410 877 40 / 8
36	346 510 99	Lock washer	8	InternBDB: 8 /128 \| InternKon: 410 877 40 / 9
