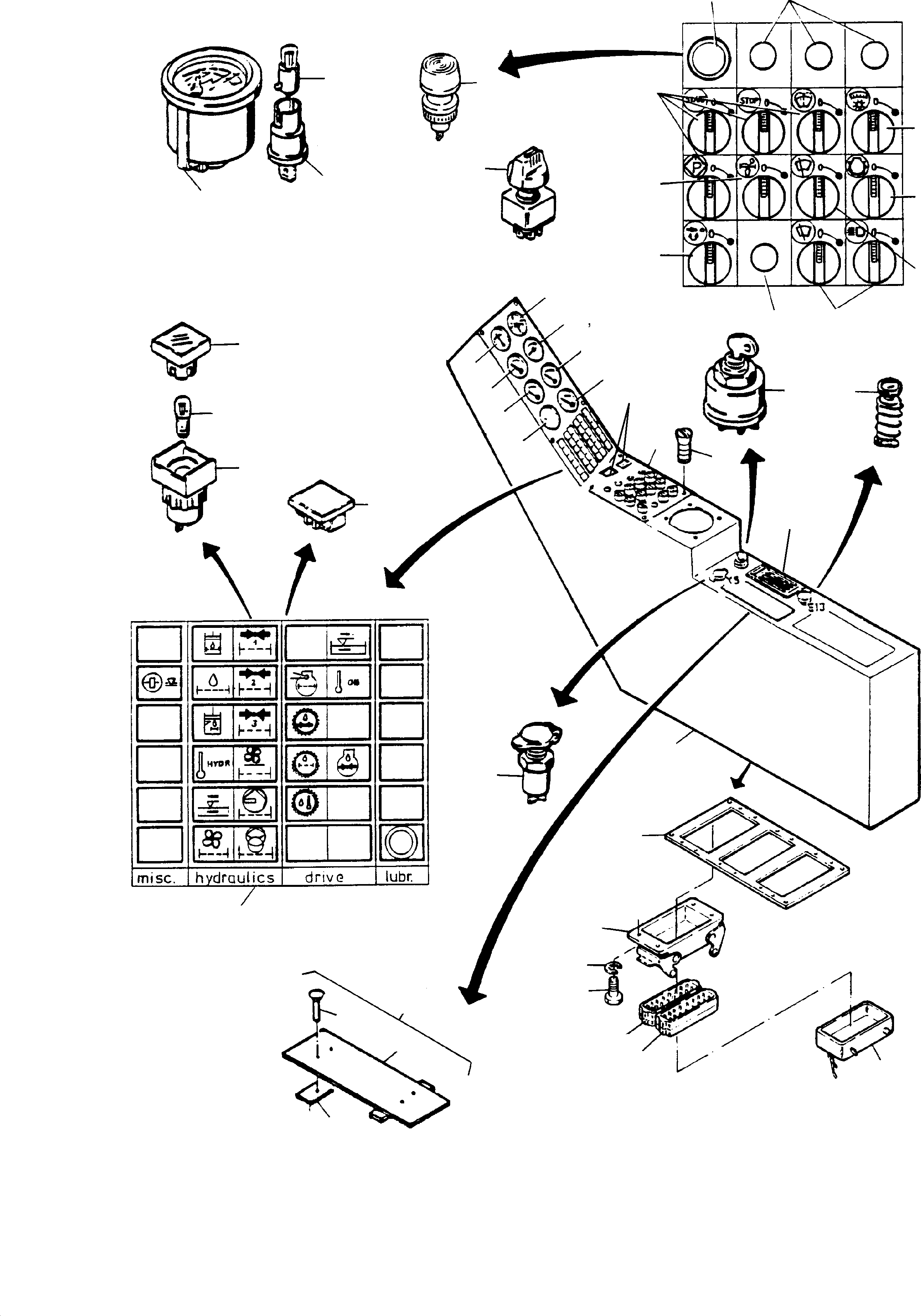

01 |
413 150 40
|
Operation panel,
w/o mounting parts |
1 |
InternKon: 413 142 40 / 1
|
|
|
|
02 |
404 967 40
|
Instrument panel |
1 |
InternKon: 413 142 40 / 2
|
|
|
|
03 |
413 141 40
|
Plate |
1 |
InternKon: 413 142 40 / 3
|
|
|
|
04 |
302 018 40
|
Cover assy.
fig-nos. 05-07 |
1 |
InternKon: 413 142 40 / 4
|
|
|
|
05 |
302 009 40
|
Cover |
1 |
InternKon: 302 018 40 / 1
|
|
|
|
06 |
302 017 40
|
Retainer |
1 |
InternKon: 302 018 40 / 2
|
|
|
|
07 |
347 520 99
|
Rivet |
4 |
InternBDB: 3x6 /661 | InternKon: 302 018 40 / 3
|
|
|
|
08 |
318 575 99
|
Screw |
8 |
InternBDB: M4x16 /964 4.8 B2E | InternKon: 413 142 40 / 5
|
|
|
|
09 |
385 235 40
|
Ashtray |
1 |
InternBDB: Happich 550 0081 | InternKon: 413 142 40 / 6
|
|
|
|
10 |
385 213 40
|
Cigarette lighter |
1 |
InternBDB: Hella 8EZ 00459512 | InternKon: 413 142 40 / 7
|
|
|
|
11 |
414 866 40
|
Key switch |
1 |
InternBDB: Merit 327 000 B | InternKon: 413 142 40 / 8
|
|
|
|
12 |
270 441 40
|
Socket |
1 |
InternBDB: Bosch 0 986 352 804 | InternKon: 413 142 40 / 9
|
|
|
|
13 |
324 401 40
|
Turn switch |
6 |
InternBDB: Merit 260 400 0-1 | InternKon: 413 142 40 / 10
|
|
|
|
14 |
324 402 40
|
Turn switch |
1 |
InternBDB: 263 400 0-1-2 | InternKon: 413 142 40 / 11
|
|
|
|
15 |
399 702 40
|
Turn switch |
1 |
InternBDB: 262 000 1-2 | InternKon: 413 142 40 / 12
|
|
|
|
16 |
324 400 40
|
Turn switch |
4 |
InternBDB: 261 000 0-1 rf | InternKon: 413 142 40 / 13
|
|
|
|
17 |
324 602 40
|
Dummy plug |
3 |
InternBDB: A.R. Lцrrach AK 11832/ 10517 | InternKon: 413 142 40 / 14
|
|
|
|
18 |
461 733 40
|
Square head plug |
2 |
InternBDB: Pцppelmann GPN 270 / 30203 R | InternKon: 413 142 40 / 15
|
|
|
|
19 |
431 160 40
|
Hour meter |
1 |
InternBDB: Moto-Meter 643.003.1013 | InternKon: 413 142 40 / 16
|
|
|
|
20 |
431 161 40
|
Clock |
1 |
InternBDB: 639.006.1022 | InternKon: 413 142 40 / 17
|
|
|
|
21 |
431 156 40
|
Fuel gauge |
1 |
InternBDB: 609.060.5555 | InternKon: 413 142 40 / 18
|
|
|
|
22 |
431 162 40
|
Ammeter |
1 |
InternBDB: 615.052.4141 120-0-120A | InternKon: 413 142 40 / 19
|
|
|
|
23 |
431 154 40
|
Oil pressure gauge |
1 |
InternBDB: 644.060.1015 | InternKon: 413 142 40 / 20
|
|
|
|
24 |
431 153 40
|
Remote thermometer,
cooling water |
1 |
InternBDB: 641.012.1001 | InternKon: 413 142 40 / 34
|
|
|
|
25 |
431 152 40
|
Remote thermometer,
(hydraulic) |
1 |
InternBDB: 641.012.1000 | InternKon: 413 142 40 / 21
|
|
|
|
26 |
507 384 99
|
Bulb 3 W |
-2 |
InternBDB: 4.124.143 BA 7S /72601
|
|
|
|
27 |
697 235 73
|
Socket |
-2 |
InternBDB: 521.010.2200
|
|
|
|
28 |
490 518 40
|
Warning buzzer |
1 |
InternBDB: Lumitas 14.810.902 | InternKon: 413 142 40 / 36
|
|
|
|
31 |
414 829 40
|
Blank cover |
1 |
InternBDB: 842 040 001 | InternKon: 413 142 40 / 22
|
|
|
|
32 |
385 209 40
|
Signal light |
21 |
InternBDB: Lumitas 51.050.002 | InternKon: 413 142 40 / 23
|
|
|
|
33 |
385 210 40
|
Push hood, red |
21 |
InternBDB: 51.955.2 | InternKon: 413 142 40 / 24
|
|
|
|
34 |
356 156 40
|
Bulb 28 V |
21 |
InternBDB: 31-963.28 | InternKon: 413 142 40 / 25
|
|
|
|
35 |
385 212 40
|
Blank cover |
15 |
InternBDB: 51-948.0 | InternKon: 413 142 40 / 26
|
|
|
|
36 |
385 223 40
|
Mounting box |
3 |
InternBDB: Contact 10.4720 | InternKon: 413 142 40 / 27
|
|
|
|
37 |
385 227 40
|
Insert (1-16) |
3 |
InternBDB: 10.5320 | InternKon: 413 142 40 / 28
|
|
|
|
38 |
385 228 40
|
Insert (17-32) |
3 |
InternBDB: 10.5420 | InternKon: 413 142 40 / 29
|
|
|
|
39 |
358 263 40
|
Safety cover |
3 |
InternBDB: 10.4815 | InternKon: 413 142 40 / 30
|
|
|
|
40 |
320 975 99
|
Screw |
12 |
InternBDB: AM 4x16 /84 | InternKon: 413 142 40 / 31
|
|
|
|
41 |
346 508 99
|
Lock washer |
12 |
InternBDB: 4 /128 | InternKon: 413 142 40 / 32
|
|
|
|
42 |
646 915 40
|
Switch plate - rotaflare light |
1 |
InternKon: 413 142 40 / 37
|
|
|
|
43 |
385 839 40
|
Graphical symbol |
1 |
InternBDB: TL /A3 | InternKon: 413 142 40 / 33
|
|
|
|
44 |
058 244 40
|
Bulb |
1 |
InternBDB: 24V /1W Philips 13521 A9
|
|
