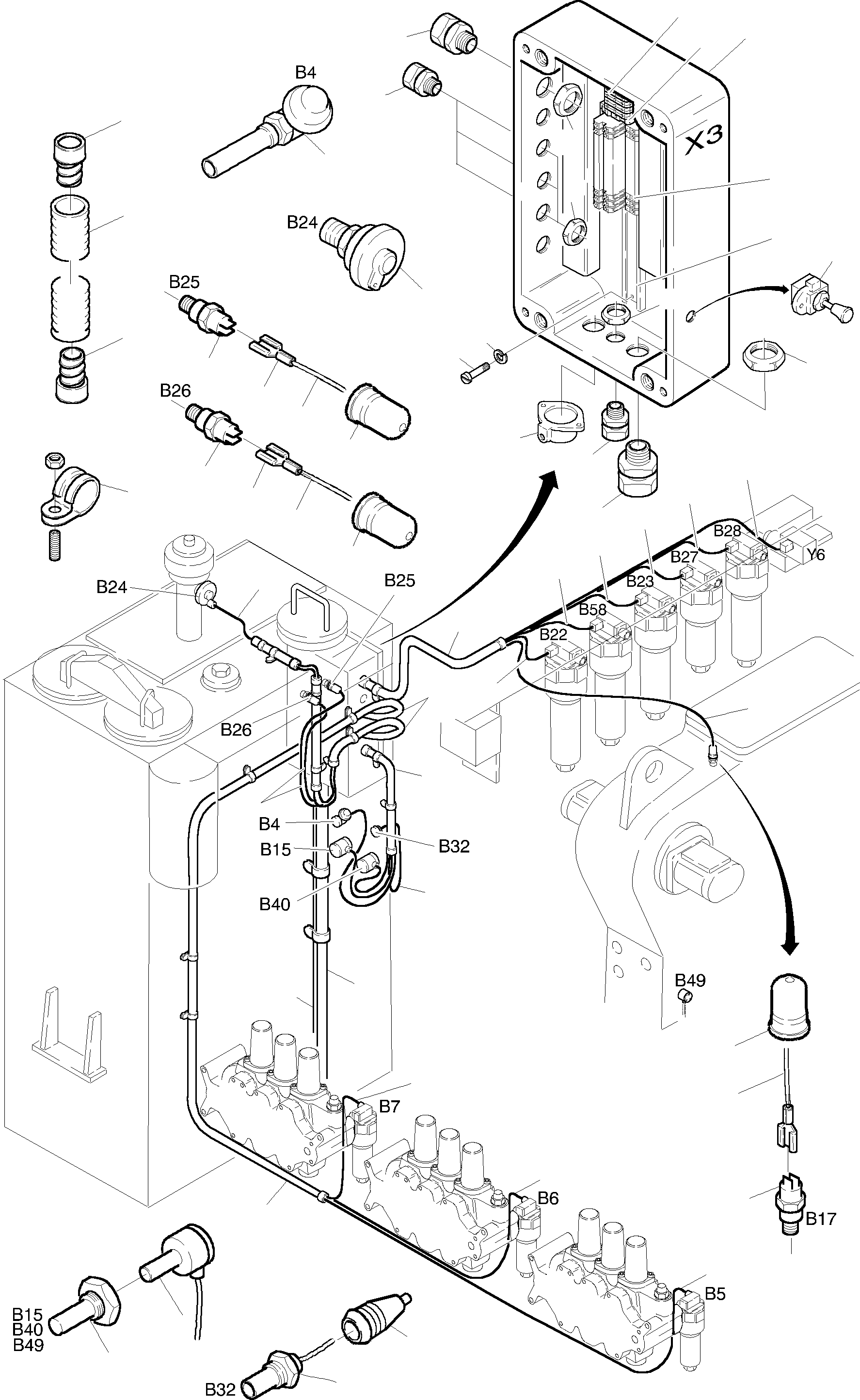

WIRE LAYOUT - OIL TANK | H135S S/N 61064 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	255 032 40	Housing, empty	1	InternBDB: Bopla A 160
02	256 722 40	Rubber grommet	1	InternBDB: Helm 320.31120
03	323 592 40	Rubber grommet	3	InternBDB: Suco 107.00.08
04	057 125 40	Pull switch	1
05	490 920 40	Oil pressure switch	1	InternBDB: Suco 0166 404 010 13
06	055 515	Cable ca. 3500 mm Bulk ware, state length required	1	InternBDB: 2x0,75
07	055 515	Cable ca. 4000 mm Bulk ware, state length required	1	InternBDB: 2x0,75
08	356 238 40	Cable protection hose PG 9 Bulk ware, state length required	-2	InternBDB: 2010.101.010
09	356 241 40	Cable protection hose PG 16 Bulk ware, state length required	-2	InternBDB: 220.101.017
10	356 242 40	Cable protection hose PG 21 Bulk ware, state length required	-2	InternBDB: 220.101.021
11	055 515	Cable ca. 4500 mm Bulk ware, state length required	1	InternBDB: 2x0,75
12	356 246 40	Socket PG 9	-2	InternBDB: 520.030.009
13	356 249 40	Socket PG 16	-2	InternBDB: 520.030.016
14	356 250 40	Socket PG 21	-2	InternBDB: 520.030.021
15	006 303 98	Clamp	10	InternBDB: RSGU 1100 22/15
16	502 050 98	Clamp	4	InternBDB: RSGU 1100 28/12
17	055 515	Cable ca. 1500 mm Bulk ware, state length required	2	InternBDB: 2x0,75
18	055 515	Cable ca. 1000 mm Bulk ware, state length required	4	InternBDB: 2x0,75
19	055 515	Cable ca. 1200 mm Bulk ware, state length required	1	InternBDB: 2x0,75
20	055 515	Cable ca. 2000 mm Bulk ware, state length required	1	InternBDB: 2x0,75
21	055 515	Cable ca. 2500 mm Bulk ware, state length required	1	InternBDB: 2x0,75
22	055 100 40	Cable shoe	15
23	055 515	Cable ca. 1300 mm Bulk ware, state length required	1	InternBDB: 2x0,75
24	055 515	Cable ca. 1400 mm Bulk ware, state length required	1	InternBDB: 2x0,75
25	055 515	Cable ca. 1600 mm Bulk ware, state length required	1	InternBDB: 2x0,75
26	055 515	Cable ca. 1800 mm Bulk ware, state length required	1	InternBDB: 2x0,75
27	471 861 99	Cable ca. 2200 mm Bulk ware, state length required	1	InternBDB: 1mm
28	471 861 99	Cable 1 qmm Bulk ware, state length required	-2
29	471 731 99	Cable 6 qmm Bulk ware, state length required	-2
30	255 721 40	Maintenance switch	1	InternBDB: Ma. u. Hu. 390 062 /903
31	621 846 40	Oil level transmitter	1	InternBDB: SK1-HT125-FS-JR3/8PS-KL
32	269 870 40	Cover tube	3	InternBDB: Noris MX2 /R12 R 1/2
33	440 382 40	Sensor	3	InternBDB: TP 31
34	192 165 40	Pressure switch	1	InternBDB: 441 0140 210
35	084 020 40	Pressure switch	1	InternBDB: 441 0140 050
36	431 168 40	Thermosender	1	InternBDB: 642.007.1006
37	356 266 40	Cover plate	1	InternBDB: Entrelec 118499.23
38	356 264 40	Twin terminal	21	InternBDB: 115271-22
39	356 265 40	Clamp	1	InternBDB: 103002-26
40	505 940 99	Assembly rail Bulk ware, state length required	-2	InternBDB: Weidmьller 1228.0 TS32
41	323 953 40	Cable union	1	InternBDB: Sievert PG 16 5010.100.016
42	323 950 40	Cable union	3	InternBDB: PG 9 5010.100.009
43	323 354 40	Cable union	1	InternBDB: PG 21 5010.100.021
44	490 372 40	Ground wire-series terminal	-2
45	320 816 99	Screw	2	InternBDB: AM 5x10 /84
46	343 852 99	Lock washer	2	InternBDB: 5 /7980
47	057 278 40	Socket	1	InternBDB: 0352 221 001
48	504 546 99	Cable nut	3	InternBDB: APG9 /46258
49	600 805 99	Cable nut	1	InternBDB: APG 16 /46258
50	501 677 98	Cable nut	1	InternBDB: APG 21 /46258
