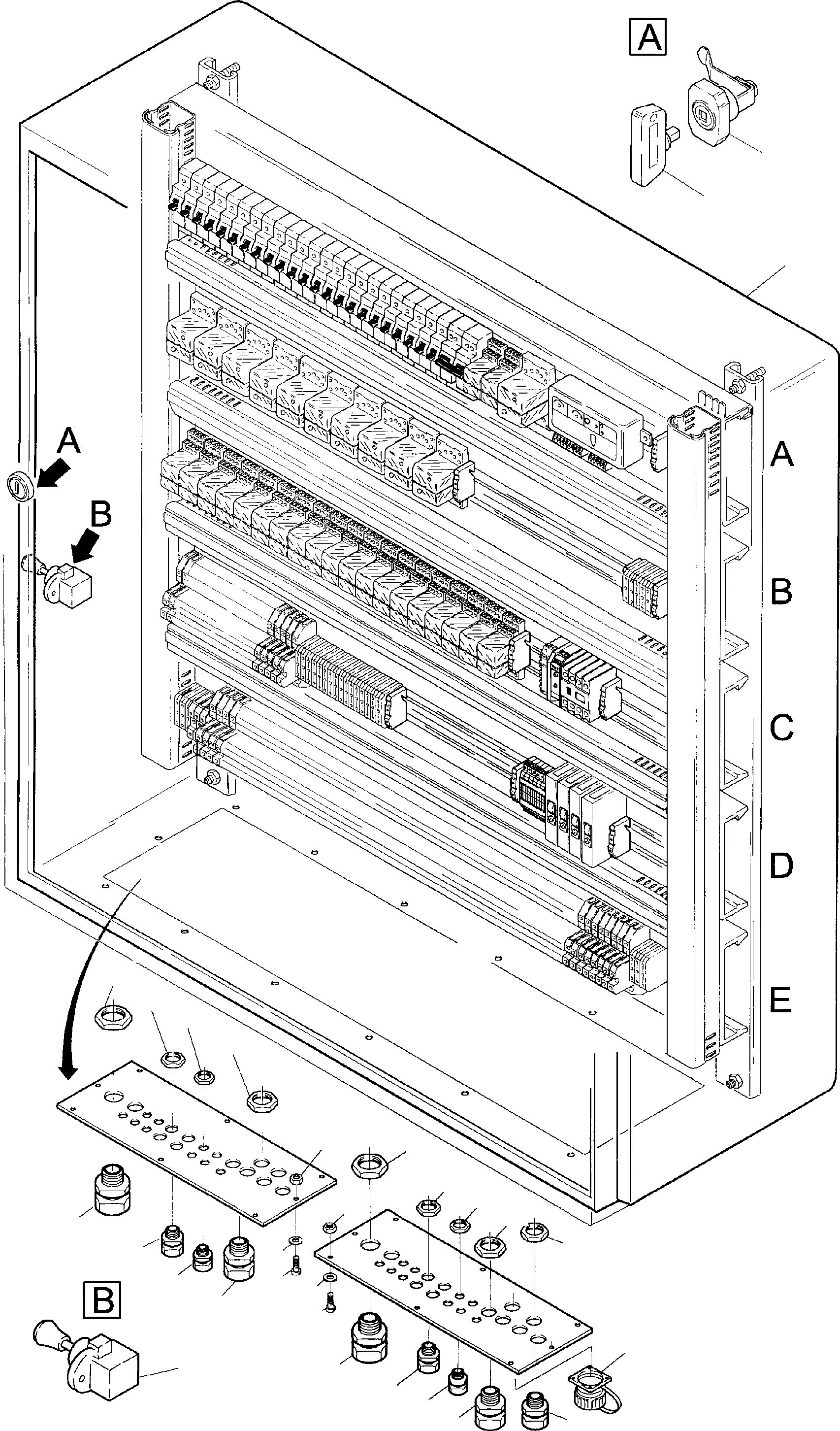

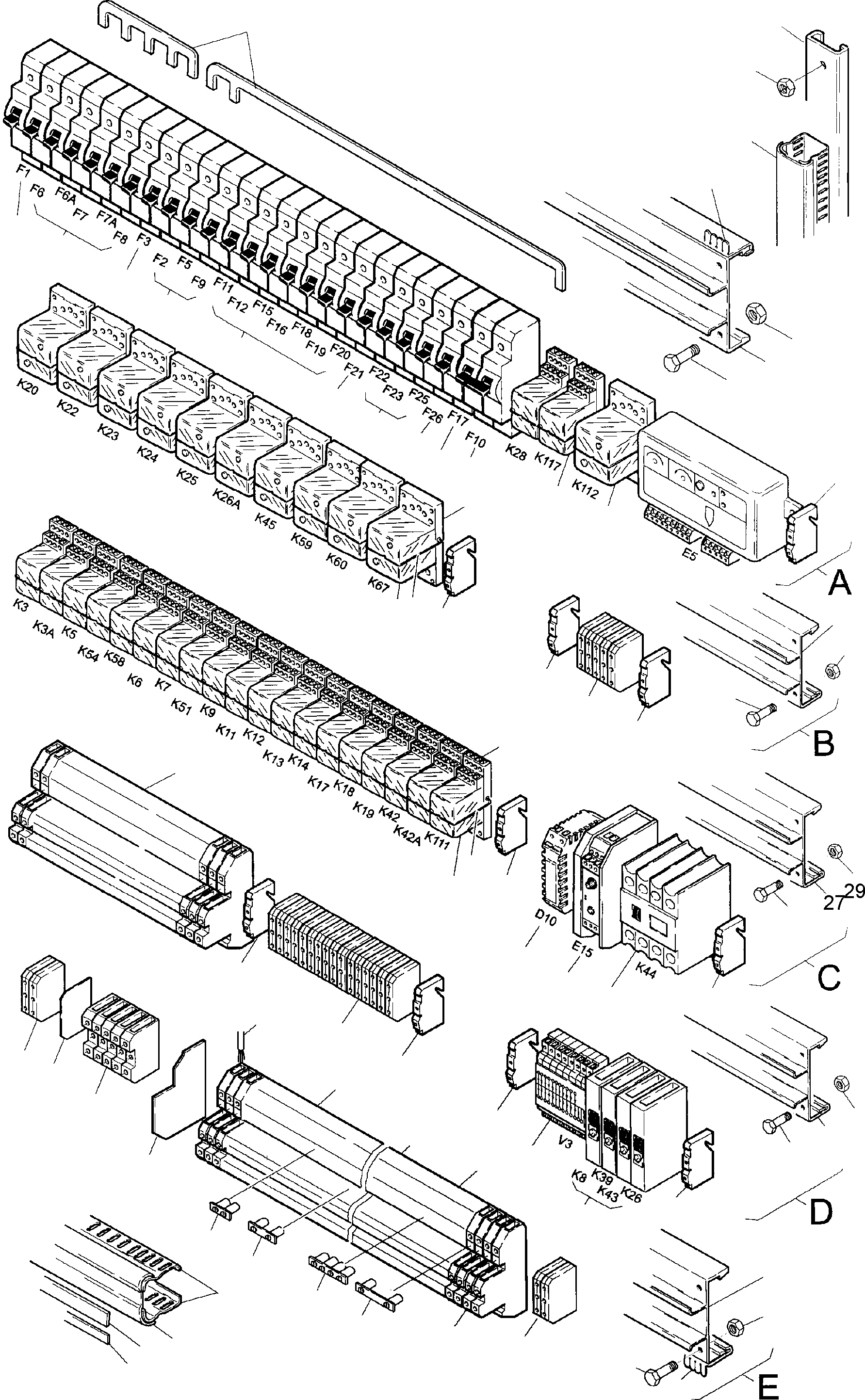

Diagram image 1 of 2

H135S S/N 61064

01 02 03 04 05 05 06 06 07 07 08 08 09 10 11 12 13 13 14 14 15 16 17 17 18 18 19 19 20 21

H135S S/N 61064

25 26 26 27 27 28 28 28 28 28 29 29 29 29 29 30 31 32 32 32 32 33 33 33 34 35 35 35 35 35 35 35 35 35 35 36 36 37 37 38 38 39 40 41 42 43 44 45 46 46 47 47 48 48 49 50 51 52 52 53 53 54 54 55 55 56 57 58 59 59 59 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74

#	Part Number	Partname	Quantity	Options
01	764 789 73	Square key	1	InternBDB: Fa. Southco E-3-4
02	057 125 40	Pull switch	1
03	057 300 40	Flanged socket	1	InternBDB: Cannon MS3102 R10S-3 P
04	145 777 40	Dust cap	1	InternBDB: MS 25043-10C
05	323 950 40	Cable union	8	InternBDB: Sievert 5010.100.009
06	504 546 99	Cable nut	8	InternBDB: HPG9 /46258
07	501 677 98	Cable nut	8	InternBDB: APG 21 /46258
08	323 354 40	Cable union	8	InternBDB: Sievert 5010.100.021
09	323 951 40	Cable union	2	InternBDB: 5010.100.011
10	600 803 99	Cable nut	2	InternBDB: APG 11 /46528
11	323 952 40	Cable union	1	InternBDB: 5010.100.013
12	600 804 99	Cable nut	1	InternBDB: APG 13,5/46528
13	323 355 40	Cable union	2	InternBDB: 5010.100.029
14	501 654 98	Cable nut	2	InternBDB: APG 29 /46528
15	323 953 40	Cable union	3	InternBDB: 5010.100.016
16	600 805 99	Cable nut	3	InternBDB: APG16 /46258
17	320 816 99	Screw	16	InternBDB: AM5x10 /84
18	340 462 99	Washer	16	InternBDB: 5,3 /125
19	332 109 99	Nut	16	InternBDB: M5 /934
20	764 790 73	Locking bar E-3	1
21	631 557 40	Switch box	1	InternBDB: TL \| InternKon: 431 195 40 / 1
25	323 759 40	Assembly rail	2	InternBDB: Luetze CP 750 Best.Nr. \| InternKon: 431 195 40 / 2
26	323 237 40	Wiring fan	10	InternBDB: KP 300 Best.Nr.33004 \| InternKon: 431 195 40 / 7
27	358 297 40	Sectional plate	3	InternBDB: SA 120x700 Best.Nr.33333 \| InternKon: 431 195 40 / 4
28	308 252 99	Screw	20	InternBDB: M8x16 /933 \| InternKon: 431 195 40 / 13
29	334 673 99	Nut	24	InternBDB: M 8 /985 \| InternKon: 431 195 40 / 14
30	323 766 40	Automatic breaker 50 Amp.	1	InternBDB: Klцckner Mцller FAZG 50 A \| InternKon: 431 195 40 / 16
31	323 767 40	Automatic breaker 25 Amp.	1	InternBDB: FAZG 25 A \| InternKon: 431 195 40 / 17
32	323 768 40	Automatic breaker 16 Amp.	10	InternBDB: FAZG 16 A \| InternKon: 431 195 40 / 18
33	323 769 40	Automatic breaker 6 Amp.	11	InternBDB: FAZG 6 A \| InternKon: 431 195 40 / 19
34	358 256 40	Automatic breaker 1 Amp.	1	InternBDB: FAZG 1 A-2 \| InternKon: 431 195 40 / 21
35	356 265 40	Clamp	10	InternBDB: Entrelec 103 002-26 \| InternKon: 431 195 40 / 41
36	592 338 40	Plate (14-pol.)	21	InternBDB: Fa.Schrack ZG 78700 \| InternKon: 431 195 40 / 11
37	399 773 40	Relay	21	InternBDB: RA 900282 \| InternKon: 431 195 40 / 15
38	414 369 40	Spring	21	InternBDB: RA 28802 \| InternKon: 431 195 40 / 79
39	323 233 40	Wiring profile ca. 700 lg. Bulk ware, state length required	8	InternBDB: Luetze LV 78 Best.Nr.33002 \| InternKon: 431 195 40 / 6
40	323 234 40	Cover ca. 700 lg. Bulk ware, state length required	4	InternBDB: 25 BN Best.Nr.30071 \| InternKon: 431 195 40 / 8
41	323 235 40	Marking strips ca. 700 lg. Bulk ware, state length required	4	InternBDB: Best.Nr.30093 \| InternKon: 431 195 40 / 9
42	323 236 40	Covering Bulk ware, state length required	4	InternBDB: Best.Nr.30092 Luetze 30092 \| InternKon: 431 195 40 / 10
43	471 731 99	Cable Bulk ware, state length required	-2	InternBDB: 6 qmm
44	471 861 99	Cable Bulk ware, state length required	-2	InternBDB: 1 qmm
45	270 873 40	Cable channel ca. 700 lg. Bulk ware, state length required	2	InternBDB: Fa. Sievert 131083
46	323 911 40	Spring	11	InternBDB: Fa. Schrack RN 28801 \| InternKon: 431 195 40 / 33
47	356 184 40	Relay	11	InternKon: 431 195 40 / 31
48	323 910 40	Socket (11-pol.)	11	InternBDB: RN 78750 \| InternKon: 431 195 40 / 32
49	346 543 40	Rail collector Bulk ware, state length required	-2	InternBDB: Hager-K61M Hagen K 61M \| InternKon: 431 195 40 / 34
50	490 252 40	Current breaker	1	InternBDB: Klц.-Mцll. DIL 00M-G, 24 V \| InternKon: 431 195 40 / 37
51	368 057 40	Time lag relay 0,1s-6 sec.	1	InternBDB: Entrelec RBR 1 10575-21 \| InternKon: 431 195 40 / 80
52	356 266 40	Cover plate	6	InternBDB: Entrelec 118 499-23 \| InternKon: 431 195 40 / 42
53	356 264 40	Clamp	160	InternBDB: 115 271-22 \| InternKon: 431 195 40 / 40
54	440 202 40	Sectional plate	2	InternBDB: Luetze CA 80x700 Best.Nr.33382 \| InternKon: 431 195 40 / 3
55	358 298 40	Sectional plate	2	InternBDB: AA 23x700 Best.Nr.33393 \| InternKon: 431 195 40 / 5
56	356 272 40	Cover plate	1	InternBDB: Entrelec 118 368-16 \| InternKon: 431 195 40 / 48
57	356 274 40	Clamp	6	InternBDB: 115 120-17 \| InternKon: 431 195 40 / 50
58	576 308 40	Limit selector	4	InternBDB: RP 31 \| InternKon: 431 195 40 / 35
59	490 372 40	Groung clamp	20
60	414 649 40	Electron. fuel gauge	1	InternBDB: Fa. Gematronic \| InternKon: 431 195 40 / 39
61	323 942 40	Sleeve marker	-2	InternBDB: Weidmьller 2521.0 "0" \| InternKon: 431 195 40 / 25
62	323 943 40	Sleeve marker	-2	InternBDB: 2521.0 blau \| InternKon: 431 195 40 / 26
63	270 318 40	Sleeve marker	-2	InternBDB: 2526.0 "0" \| InternKon: 431 195 40 / 27
64	323 944 40	Sleeve marker	-2	InternBDB: 2394.0 \| InternKon: 431 195 40 / 28
65	356 267 40	Cross connection OV 2	-2	InternBDB: Entrelec 173515-11 \| InternKon: 431 195 40 / 43
66	356 268 40	Cross connection OV 3	-2	InternBDB: 173516-12 \| InternKon: 431 195 40 / 44
67	356 269 40	Cross connection OV 4	-2	InternBDB: 173517-13 \| InternKon: 431 195 40 / 45
68	356 270 40	Cross connection OV 10	-2	InternBDB: 173520-22 \| InternKon: 431 195 40 / 46
69	356 275 40	Cross connection OV 10	-2	InternBDB: 173615-25 \| InternKon: 431 195 40 / 51
70	356 276 40	Bulkhead	-2	InternBDB: 113003-10 \| InternKon: 431 195 40 / 52
71	356 279 40	Cross connection OV 4	-2	InternBDB: 173618-00 \| InternKon: 431 195 40 / 55
72	356 280 40	Cross connection OV 10	-2	InternBDB: 173620-06 \| InternKon: 431 195 40 / 56
73	323 347 40	Diode array	1	InternBDB: DGE-22-P-1A/ 1000V/71806 \| InternKon: 431 195 40 / 12
74	997 892 73	Marking strips - set	-2

Komatsu H135S S/N 61064 parts catalog PDF

MAIN SWITCH BOX IN CABIN SUPPORT (116-2115g) in H135S S/N 61064. Diagram image and parts list.
