H135S S/N 61064

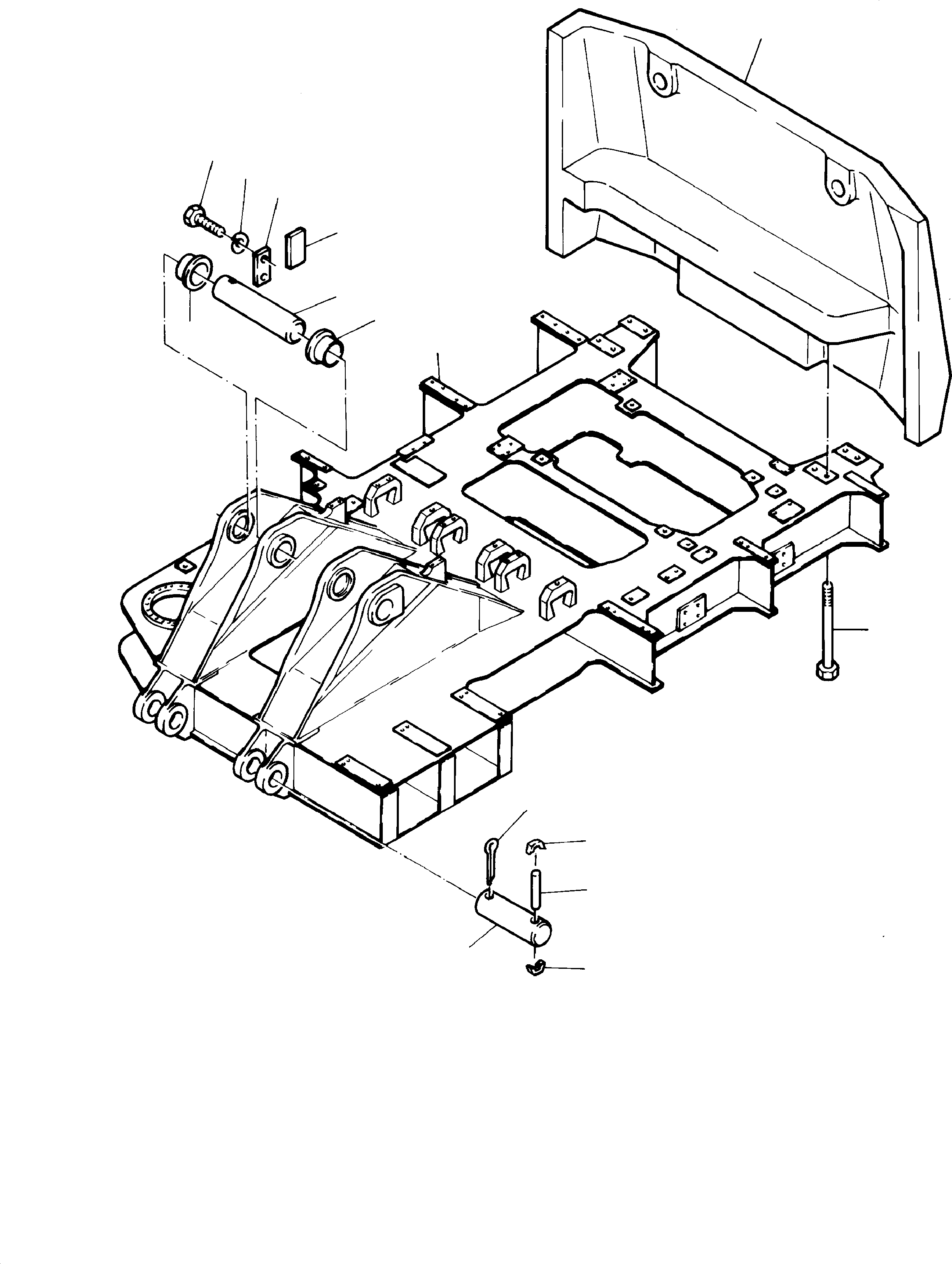

Komatsu parts book diagram for H135S S/N 61064: PLATFORM WITH COUNTERWEIGHT

01 02 03 04 05 06 06 07 08 09 09 10 11 12 13

	#	Part Number	Partname	Quantity	Options	Reference
	01	439 888 40	Superstructure platform	1	InternKon: 410 878 40 / 1
	02	425 328 40	Counterweight 20 000 kg.	1
	02	439 863 40	Counterweight 23 000 kg.	1
	03	505 965 98	Bolt	8	InternBDB: M36x570 /931 10.9 \| InternKon: 410 878 40 / 48
	03	506 847 98	Bolt	8	InternBDB: M36x570 /931 10.9 Kaltzдh \| InternKon: 410 878 40 / 48
	04	130 706 40	Pin	2	InternKon: 410 878 40 / 25
	04	431 643 40	Pin (cold weather design)	2	InternKon: 410 878 40 / 25
	05	436 088 40	Boom pin	2	InternKon: 410 878 40 / 21
	05	508 385 40	Boom pin (cold weather design)	2	InternKon: 410 878 40 / 21
	06	436 085 40	Bush	4	InternKon: 410 878 40 / 22
	07	436 086 40	Axle stirrup	2	InternKon: 410 878 40 / 23
	08	436 087 40	Stop	2	InternKon: 410 878 40 / 24
	09	218 520 40	Pin lock	4	InternBDB: WN 223 977 40 \| InternKon: 410 878 40 / 26
	10	335 144 99	Pin	2	InternBDB: 20H9x165 / 1433 \| InternKon: 410 878 40 / 27
	11	342 185 99	Cotter pin	2	InternBDB: 20x180 /94 \| InternKon: 410 878 40 / 28
	12	307 604 99	Bolt	4	InternBDB: M24x65 /933 10.9 \| InternKon: 410 878 40 / 49
	13	343 119 99	Lock washer	4	InternBDB: B 24 /127 \| InternKon: 410 878 40 / 59

Komatsu H135S S/N 61064 parts catalog PDF

PLATFORM WITH COUNTERWEIGHT (116-1000) in H135S S/N 61064. Diagram image and parts list.
