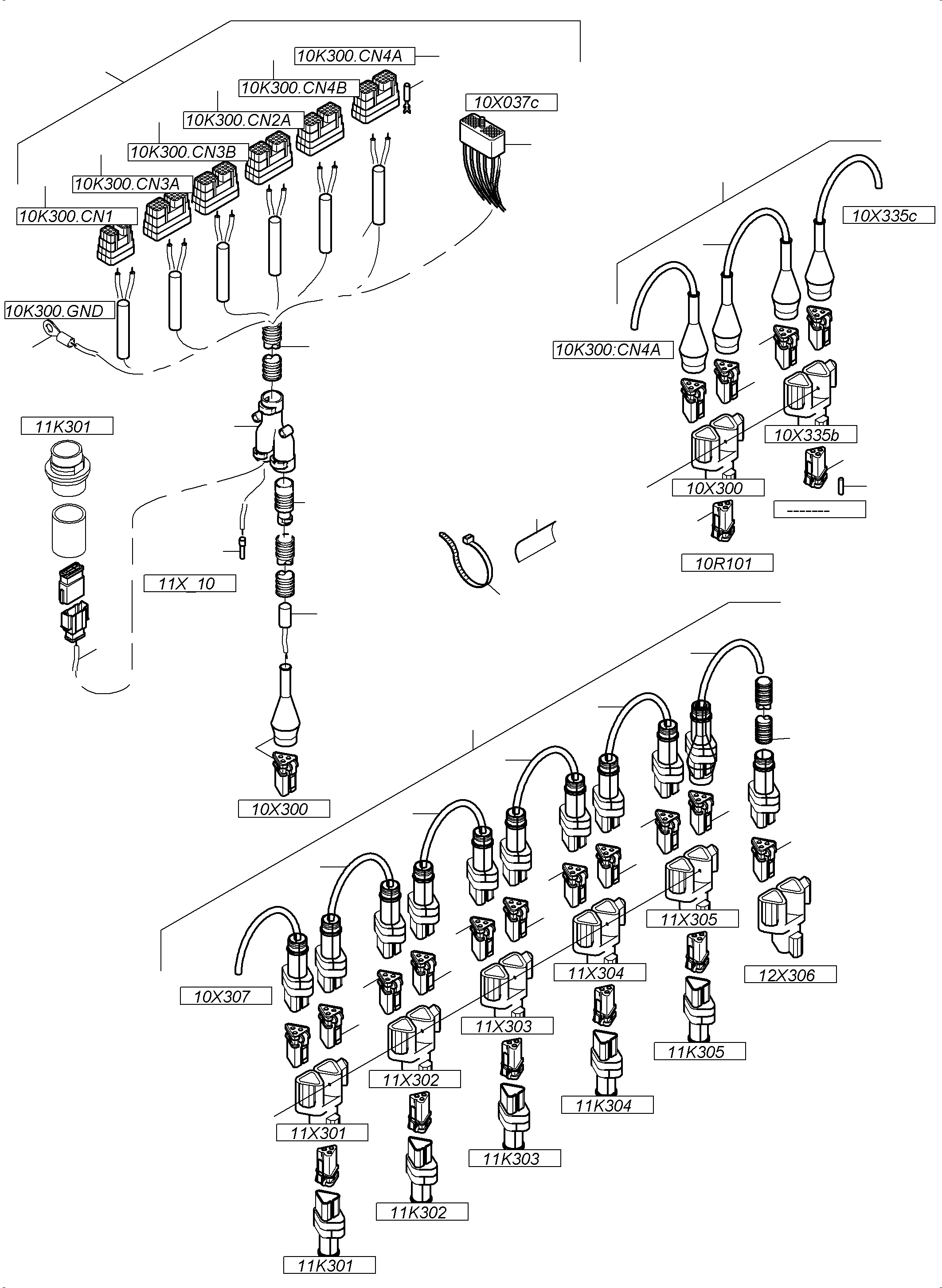

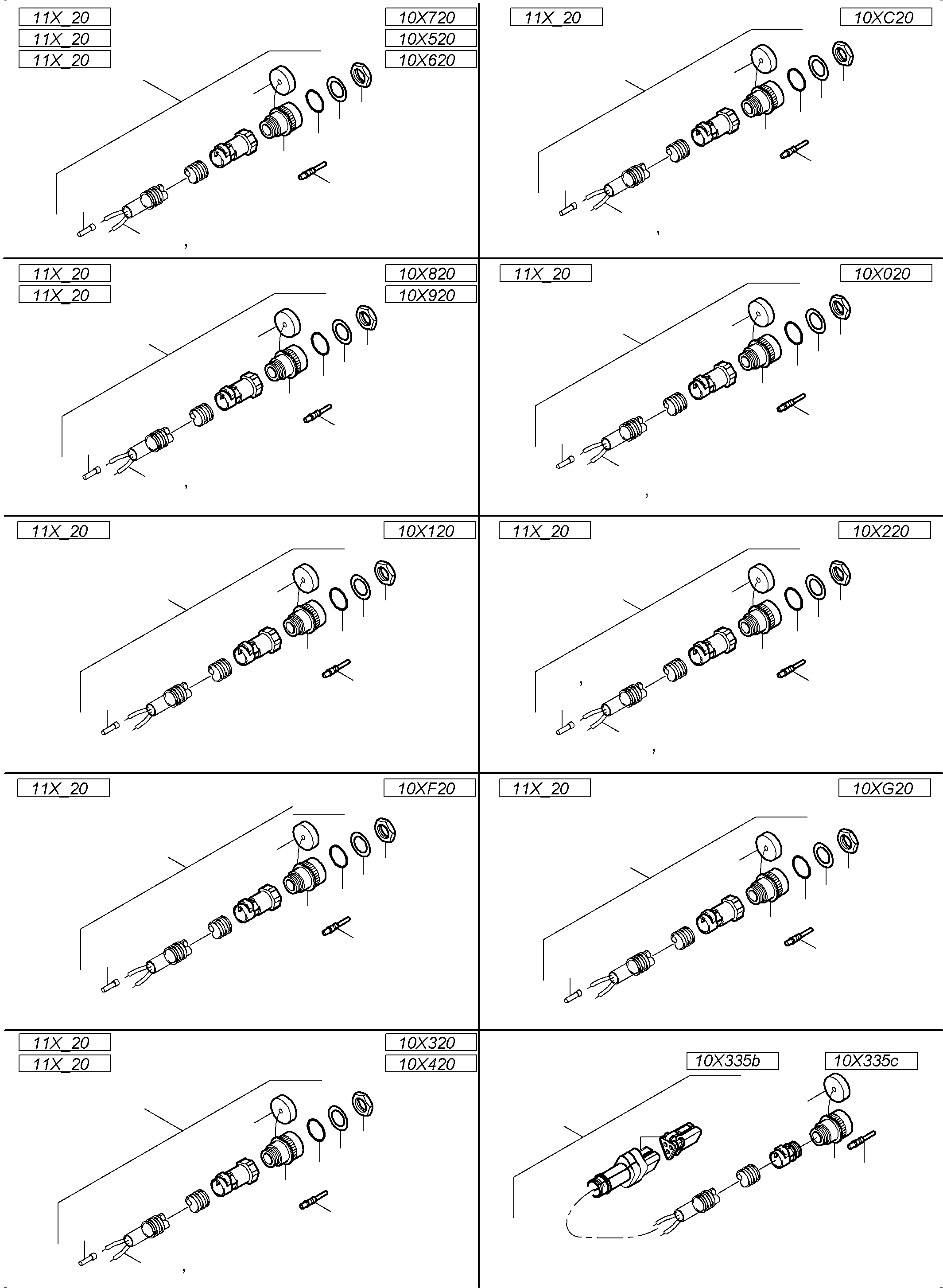

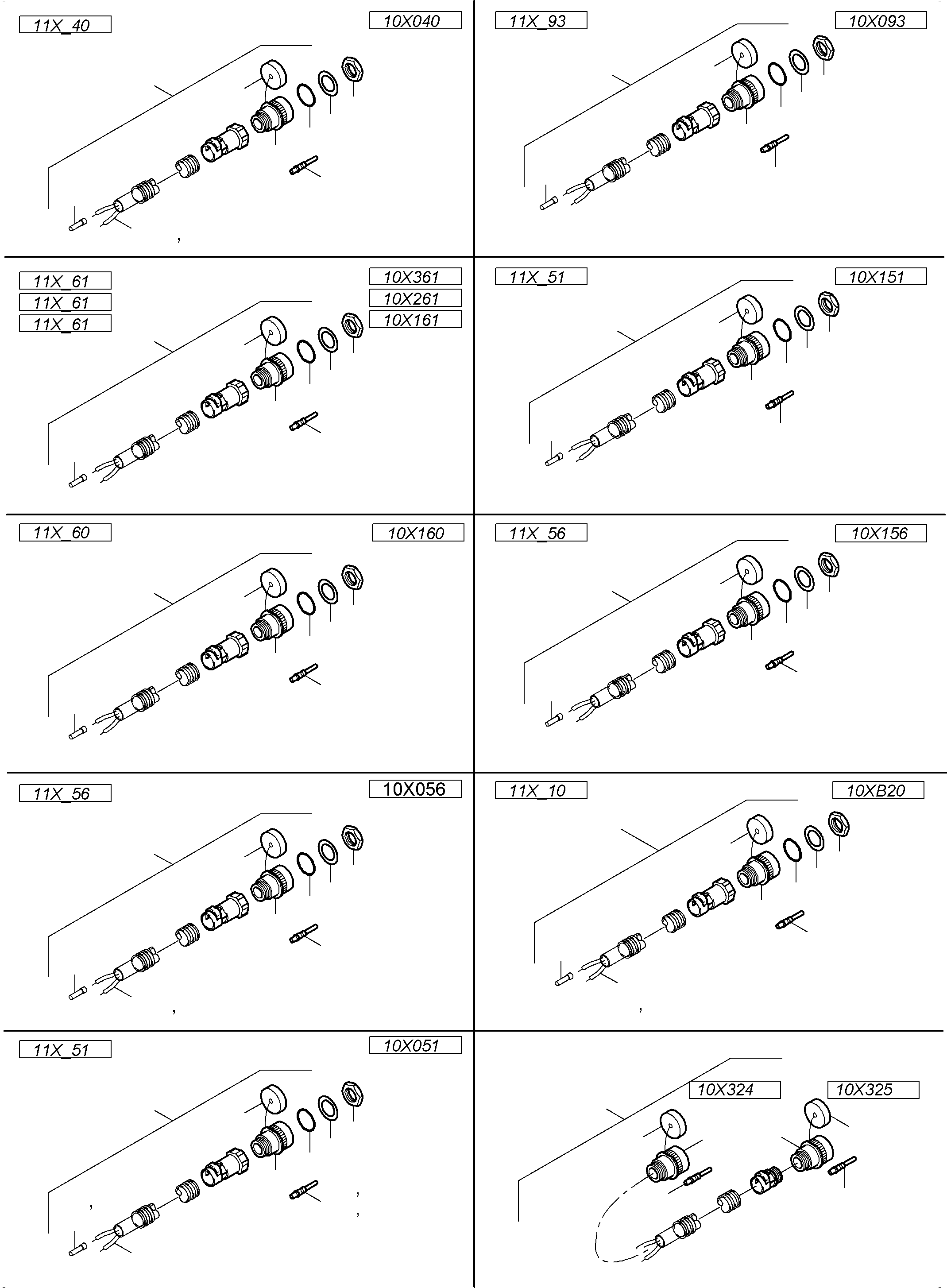

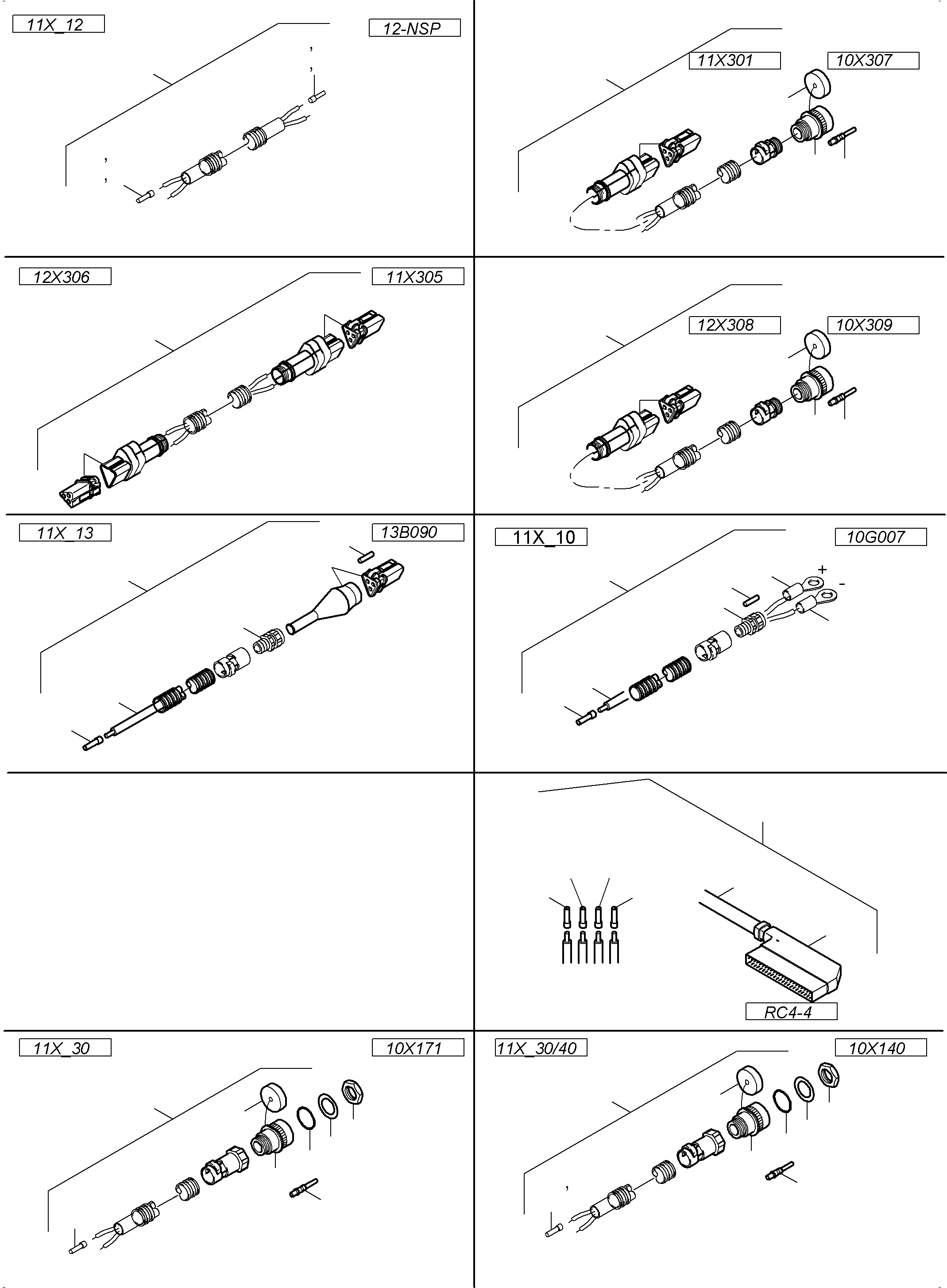

Diagram image 1 of 4

PC5500-6E S/N 15124

03 04 08 101 117 117 117 117 117 117 118 120 130 137 140 147 148 149 150 150 151 168 170 170 170 170 170 170 171 171 171 171 171 171 171 173 173 179 181 182 190 201 205 207 208 211 212 219

PC5500-6E S/N 15124

01 02 05 06 07 101 101 101 101 101 101 101 102 103 103 103 103 104 105 106 108 108 119 121 122 123 138 139 153 157 158 159 160 160 162 162 163 163 164 164 167 170 170 171 171 180 183 183 184 185 186 187 187 189 189 192 192 194 195 196 197 198 199 21 214 216 218 22 221 221 222 23 45

PC5500-6E S/N 15124

101 101 101 101 101 101 101 106 106 107 107 107 11 12 13 14 15 152 152 152 155 155 157 157 157 157 158 158 158 158 159 159 159 159 159 16 17 18 182 182 182 183 183 183 183 183 183 186 186 186 186 186 186 186 186 187 187 187 187 188 188 188 19 194 194 194 194 195 195 195 195 196 196 196 196 197 197 197 197 197 198 198 198 198 198 199 199 199 199 199 20 216 217 217 217 218 218 218 222 222 222 24 48

PC5500-6E S/N 15124

101 101 101 101 101 103 103 106 106 106 107 107 146 152 154 155 156 157 157 157 157 158 158 158 158 158 159 159 159 159 160 162 163 164 170 182 182 182 183 183 183 183 183 183 186 186 186 186 186 186 186 187 187 188 188 189 192 193 194 194 194 194 194 195 195 195 195 195 196 196 196 196 196 197 197 197 197 198 198 198 198 199 199 199 199 214 214 216 216 216 216 217 217 218 218 218 218 218 218 222 31 33 34 35 36 37 38 39 40 41 43 44 46 47

#	Part Number	Partname	Quantity
01		Inner harnesses	-1
01	952 931 40	Harness ambient temperature 11X_13-12B090	1
02	952 932 40	Harness horn 11X_10-10G007	1
03	953 080 40	Harness VHMS-Controller	1
04	958 922 40	Harness CAN-BUS	1
05	976 635 40	Harness plug load limitation valve	1
06	959 424 40	Harness 11X_12-NSP	1
07	955 666 40	Data connection CAN-BUS 12X306-11X305	1
08	959 400 40	Harness	1
11	952 937 40	Supply line Controller / Hydraulictank 11X_40-10X040	1
12	952 940 40	Supply line Controller / Pump area 11X_56-10X056	1
13	959 494 40	Supply line Controller / Engine 11X_51-10X051	1
14	976 639 40	Supply line Controller / Cable drum 11X_93-10X093	1
15	967 825 40	Harness 11X_51-10X151	1
16	967 826 40	Harness 11X_56-10X156	1
17	952 988 40	Harness 11X_60-10X160	1
18	952 990 40	Harness Control plate 11X_61-10X161	1
19	952 991 40	Harness Control plate 11X_61-10X261	1
20	952 994 40	Harness Control plate 11X_61-10X361	1
21	953 028 40	Harness 11X_30-10X171	1
22	967 802 40	Harness 11X_30/40-10X140	1
23	957 099 40	Data connection CAN-BUS 12X308-10X309	1
24	952 995 40	Harness 11X_10-10XB20	1
31	958 926 40	Data connection CAN-BUS 10X335B-10X335C	1
33	963 384 40	Harness 11X_20-10XC20	1
34	953 029 40	Harness 11X_20-10X720	1
35	953 030 40	Harness 11X_20-10X820	1
36	953 031 40	Harness 11X_20-10X920	1
37	953 032 40	Harness 11X_20-10X520	1
38	953 034 40	Harness 11X_20-10X620	1
39	953 045 40	Supply line Contoller / Cabin 11X_20-10X020	1
40	956 077 40	Harness 11X_20-10X120	1
41	960 601 40	Harness 11X_20-10X220	1
43	956 720 40	Harness 11X_20-10XF20	1
44	957 906 40	Harness 11X_20-10XG20	1
45	958 945 40	Data connection CAN-BUS 11X301-10X300	1
46	953 098 40	Harness 11X_20-10X320	1
47	954 501 40	Harness 11X_20-10X420	1
48		Data connection CAN-BUS cable drum	-2
\|$40		Harnesses single parts	-1
101	056 070 40	Cable sleeve 1,0-1,5	284
102	941 766 40	Cable shoe 1,5-2,5	1
103	056 071 40	Cable sleeve 2,5	20
104	055 108 40	Cable lug, blue 2,5 M5	1
105	907 641 40	Wire end ferrule	20
106	500 090 98	Wire end ferrule 0,75-6	85
107	269 078 40	Wire end ferrule 16/28,7	5
108	906 668 40	Cable sleeve	4
117	950 435 40	Cable CAN-BUS	-2
118	950 419 40	Connection line	-2
119	907 653 40	Insulating tube	-2
120	940 460 40	Insulating tube B4x0,5	-2
121	940 461 40	Insulating tube B5x0,6	-2
122	940 462 40	Insulating tube B6x0,6	-2
123	940 468 40	Insulating tube B16x1	-2
130	941 843 40	Protective hose DN 29	-2
137	655 634 40	Pipe adapter DN 23/17	1
138	907 703 40	Cable union 4x3	1
139	907 704 40	Cable union 3x3,5	1
140	907 947 40	Connector distributor DN 29/23	1
146	950 117 40	Socket	1
147	906 631 40	Plug	1
148	940 453 40	Plug	1
149	906 632 40	Plug	1
150	906 633 40	Plug	2
151	906 634 40	Plug	1
152	950 119 40	Socket	4
153	950 122 40	Socket	1
154	950 124 40	Socket	2
155	950 125 40	Socket	5
156	950 140 40	Socket	1
157	950 146 40	Socket	10
158	950 129 40	Protection cap	11
159	950 130 40	Protection cap	11
160	950 177 40	Protection cap	1
162	950 171 40	Socket	2
163	950 178 40	Body	2
164	950 173 40	O-ring	2
167	955 627 40	Plug assy.	1
168	907 865 40	Plug	1
170	958 955 40	Bushing assy., protective cover	10
171	958 956 40	Bushing assy., protective cover	8
173	906 647 40	T-Splitter	5
179	0819100710	Plug	31
180	932 947 40	Plug assy.	1
181	0819107610	Bushing contact	9
182	0819100770	Plug	13
183	940 852 40	Plug	116
184	896 520 40	End pin	1
185	896 521 40	End pin	1
186	0819105420	Bushing contact	291
187	621 699 40	Female contact 1-2 qmm	8
188	941 426 40	Bushing contact	5
189	950 175 40	Bushing contact	3
190	906 635 40	Contact	67
192	950 179 40	Contact element	1
193	941 443 40	Plug	2
194	0819110808	Nut	11
195	0819110809	Lock washer	11
196	950 897 40	Seal ring	11
197	0819150808	Nut	11
198	950 318 40	Lock washer	13
199	950 898 40	Seal ring	13
201	950 207 40	End grommet DN 10	5
205	950 210 40	End grommet DN 29	1
207	174 411 40	Cable strap	112
208	941 777 40	Plate	56
211	0819213200	Body	1
212	941 144 40	End resistor	1
214	0819105440	Bushing contact	13
216	950 503 40	Shrinkdown tubing	-2
217	950 505 40	Shrinkdown tubing	-2
218	950 508 40	Resin strip	-2
219	055 107 40	Cable lug, blue 2,5 M4	1
221	324 484 40	Cable sleeve 6,0	2
222	635 042 40	Cable sleeve 1,5	3

Komatsu PC5500-6E S/N 15124 parts catalog PDF

CABIN SUPPORT HARNESSES (715-2214f) in PC5500-6E S/N 15124. Diagram image and parts list.
