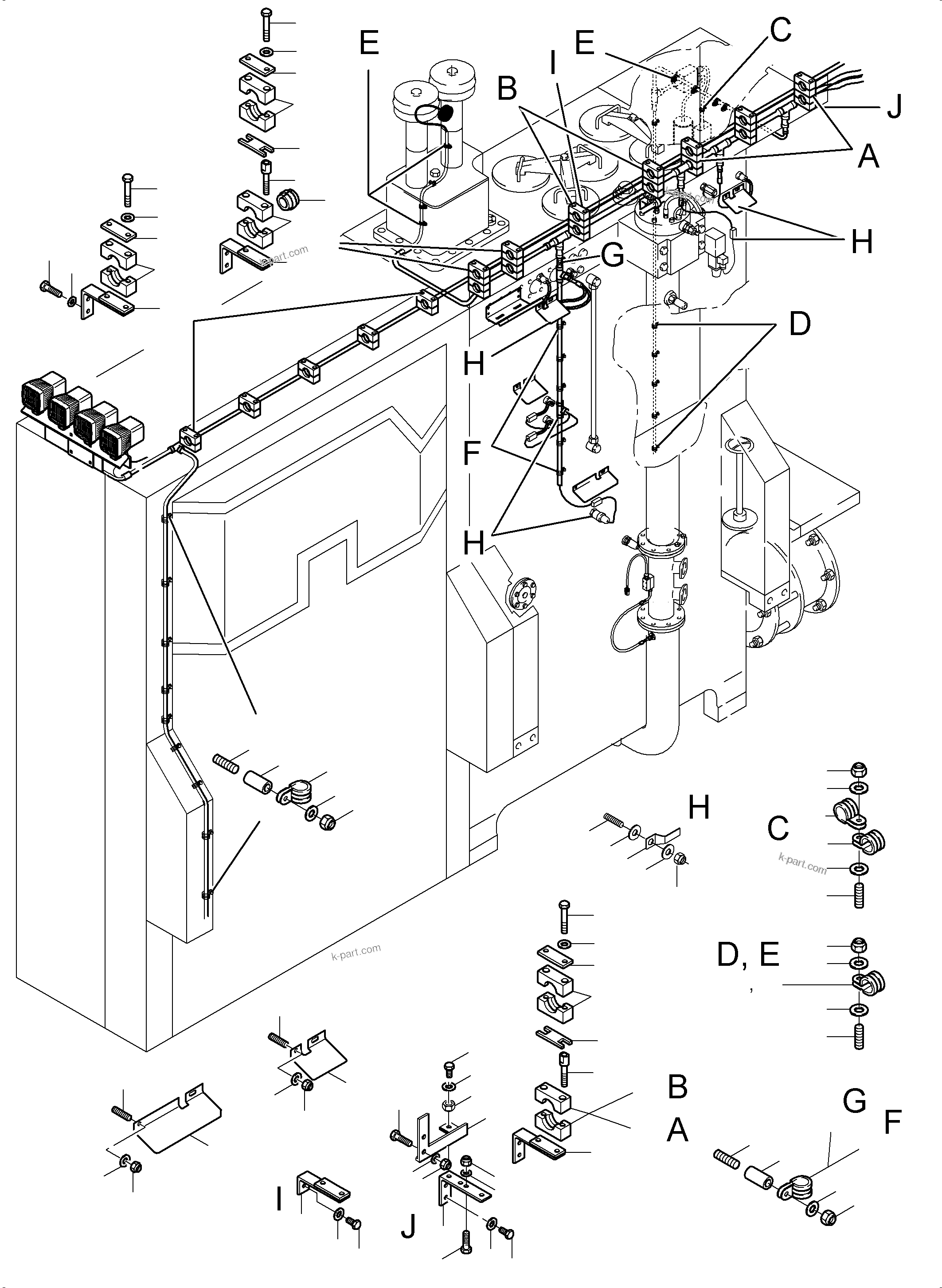

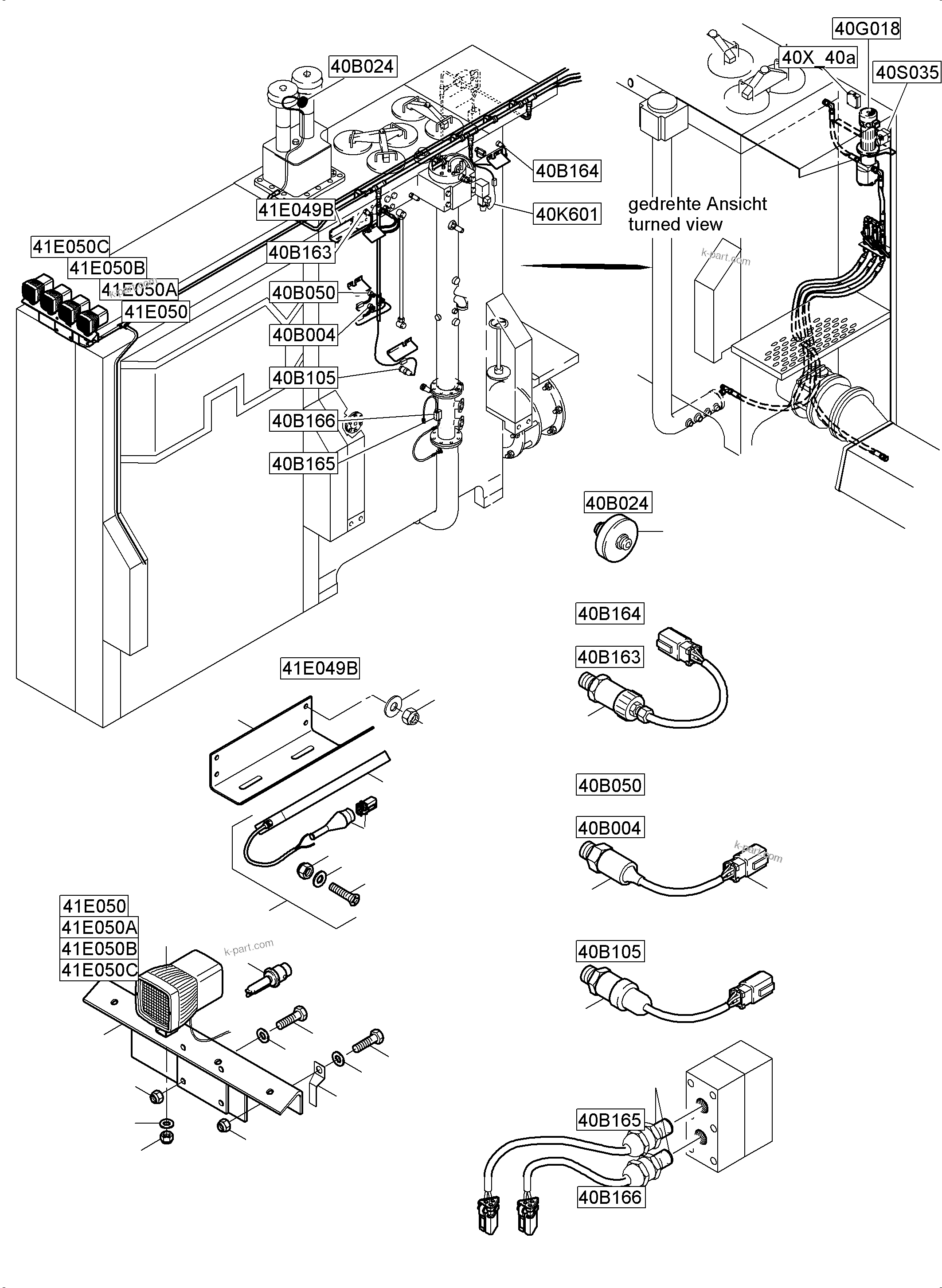

Diagram image 1 of 2

PC5500-6E S/N 15124

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6E S/N 15124

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	0443451312	Clamp DN 10	1
?	0443451512	Clamp DN 12	11
?	515 229 98	Thread pin	38
?	0443452711	Clamp DN 23	5
?	0443453411	Clamp DN 29	1
?	507 037 98	Nut	72
?	518 547 98	Lock washer	93
?	944 608 40	Plate	3
?	0819320010	Clip	13
?	507 596 98	Washer	34
?	952 665 40	Plate	1
?	534 004 99	Cover plate	10
?	518 042 98	Clamp set Ш 34	15
?	308 581 99	Bolt	24
?	0443452112	Clamp DN 17	16
?	504 789 98	Catch	6
?	504 788 98	Screw	12
?	518 032 98	Clamp set	2
?	907 991 40	Thread pin	14
?	515 628 98	Grommet	2
?	654 652 40	Maintenance switch	1
?	963 868 40	Pressure measuring transducer with cable 0-6 Bar	2
?	963 869 40	Pressure measuring transducer with cable 0-60 Bar	2
?	340 111 99	Washer	7
?	949 186 40	Lamp retainer	1
?	952 617 40	Lamp assy.	1
?	500 853 98	Bolt	18
?	963 872 40	Pressure measuring transducer with cable 0-250 mBar	1
?	950 346 40	Level probe	2
?	307 737 99	Bolt	2
?	340 506 99	Washer	4
?	307 740 99	Bolt	2
?	509 869 98	Nut	2
?	977 034 40	Retainer	1
?	959 461 40	Retainer	1
?	959 459 40	Retainer	1
?	516 095 98	Clamp set Ш 42	3
?	959 433 40	Retainer	10
?	941 560 40	LED-light	1
?	509 555 98	Screw	4
?	507 025 98	Nut	4
?	350 762 99	Washer	4
?	958 963 40	Socket assy. with rubber grommet	1
?	955 670 40	Plug assy. with rubber grommet	1
?	950 158 40	Head light assy.	4
?	954 996 40	Retainer	1
?	307 780 99	Bolt	5
?	340 465 99	Washer	17
?	0443453211	Clamp NW29	9
?	607 492 40	Resilient sleeve	9
?	307 777 99	Bolt	10
?	343 005 99	Washer	20
?	307 775 99	Bolt	4
?	797 352 73	Bulb	2

Komatsu PC5500-6E S/N 15124 parts catalog PDF

OIL TANK, OIL COOLER AND TRANSFUSING PUMP - ELECTRIC PARTS (715-2241d) in PC5500-6E S/N 15124. Diagram image and parts list.
