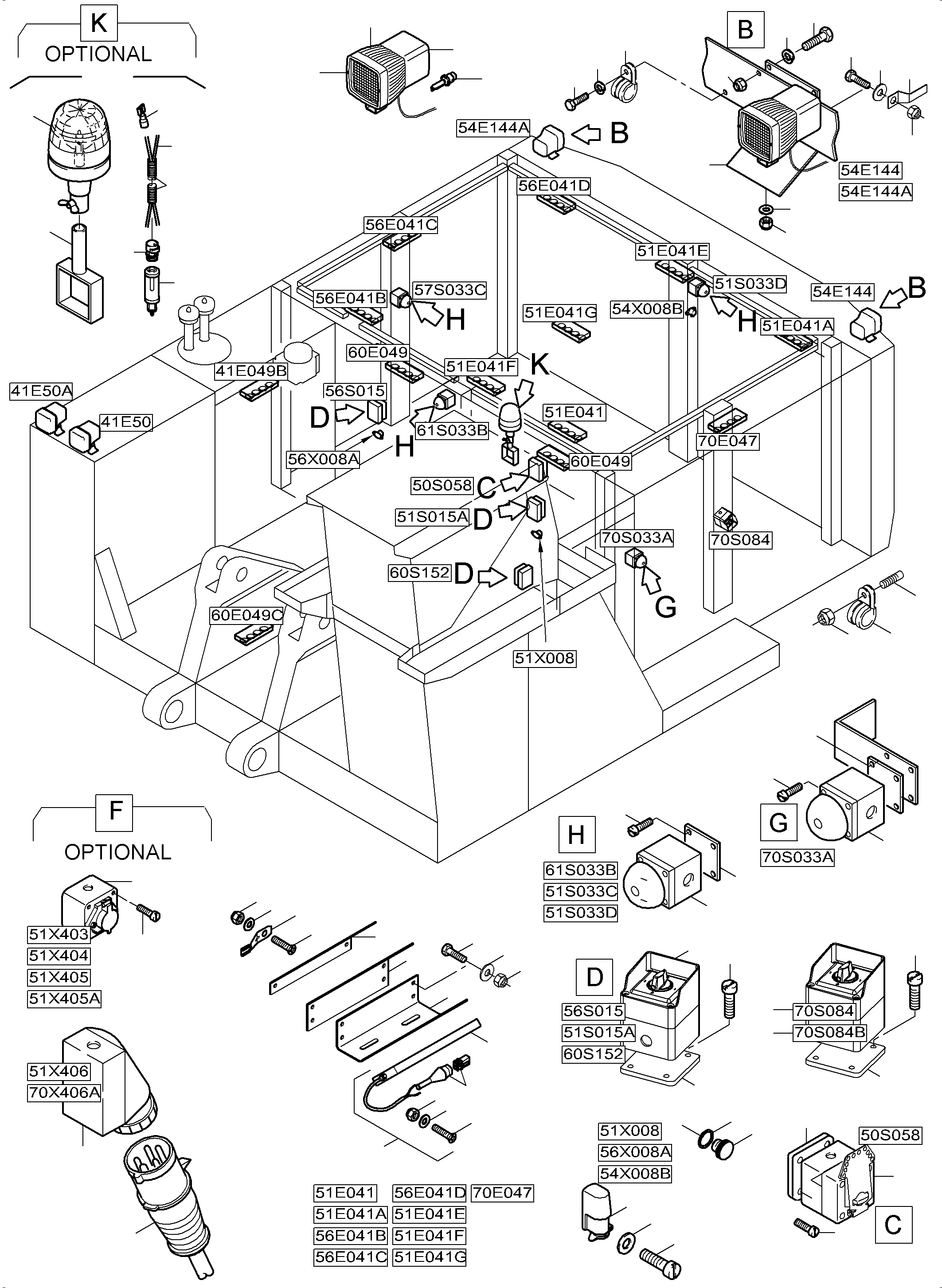

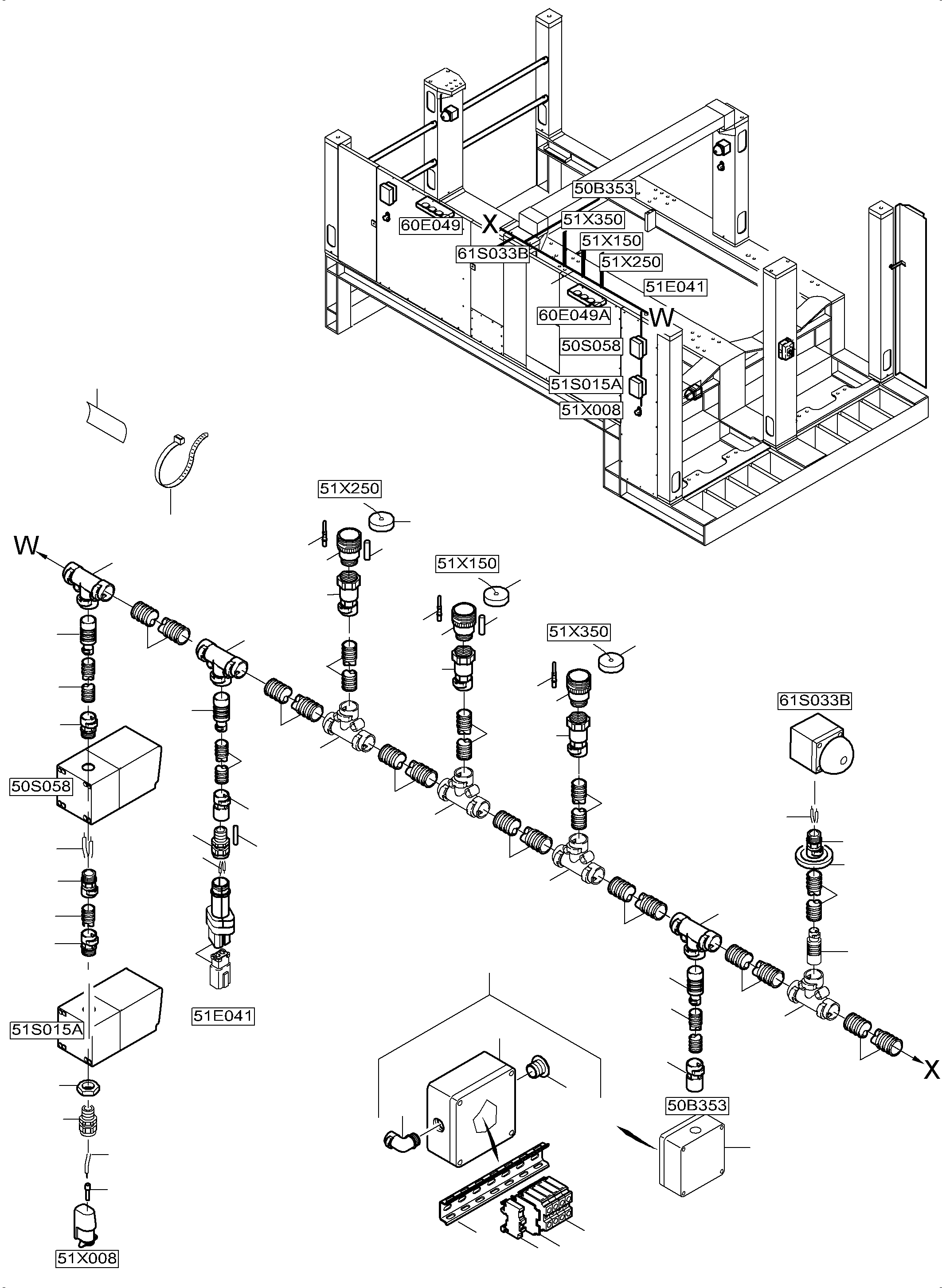

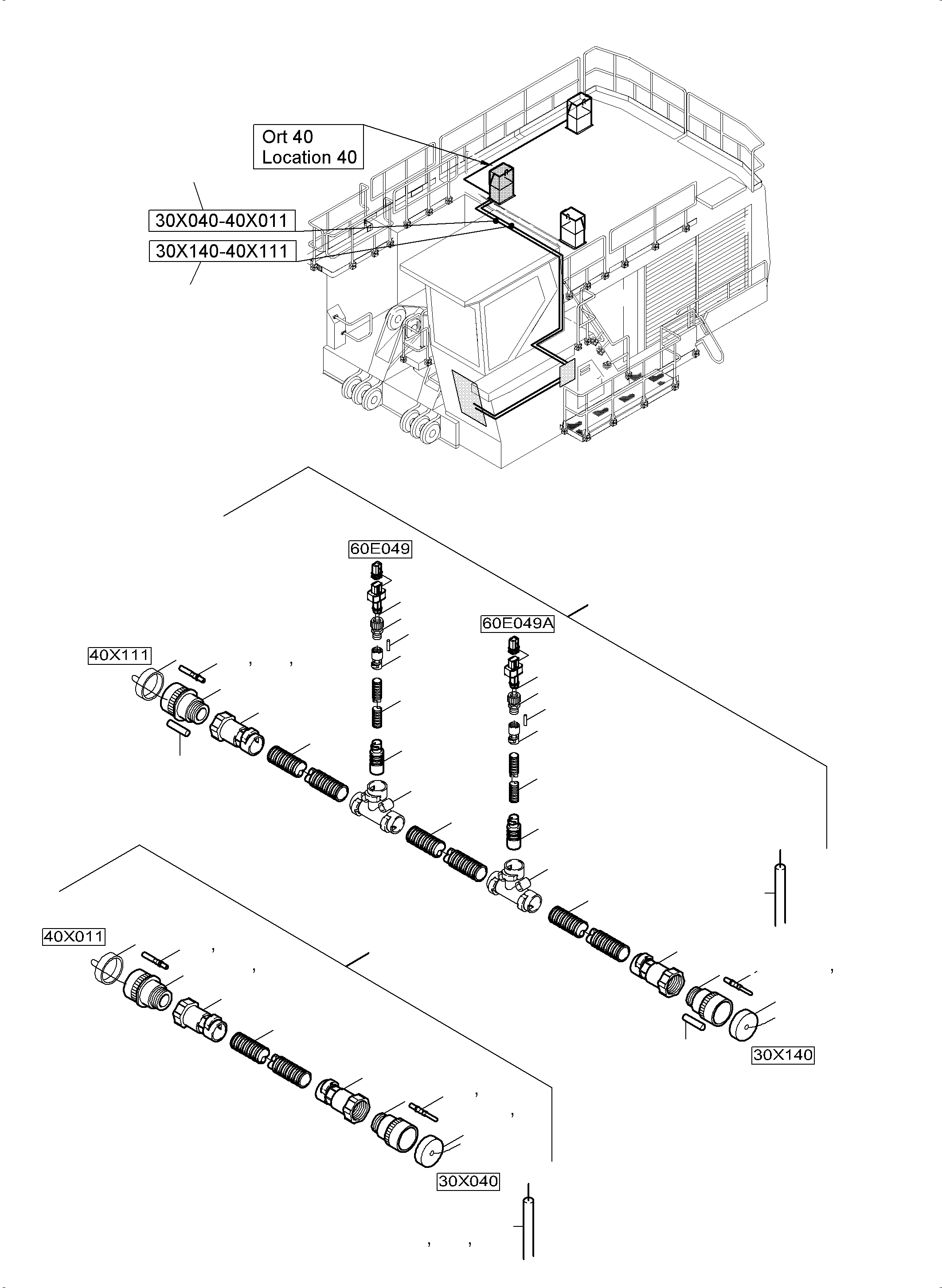

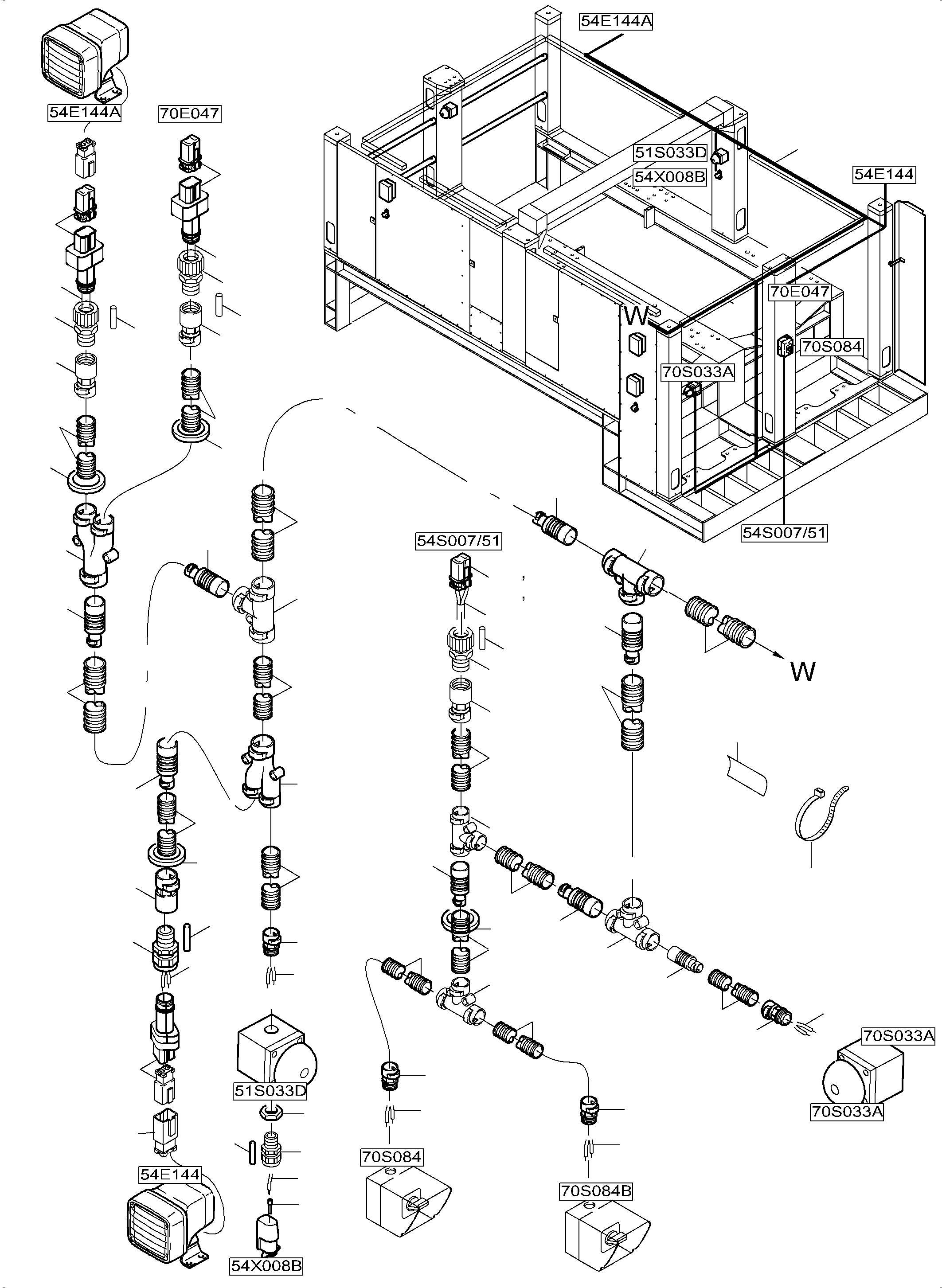

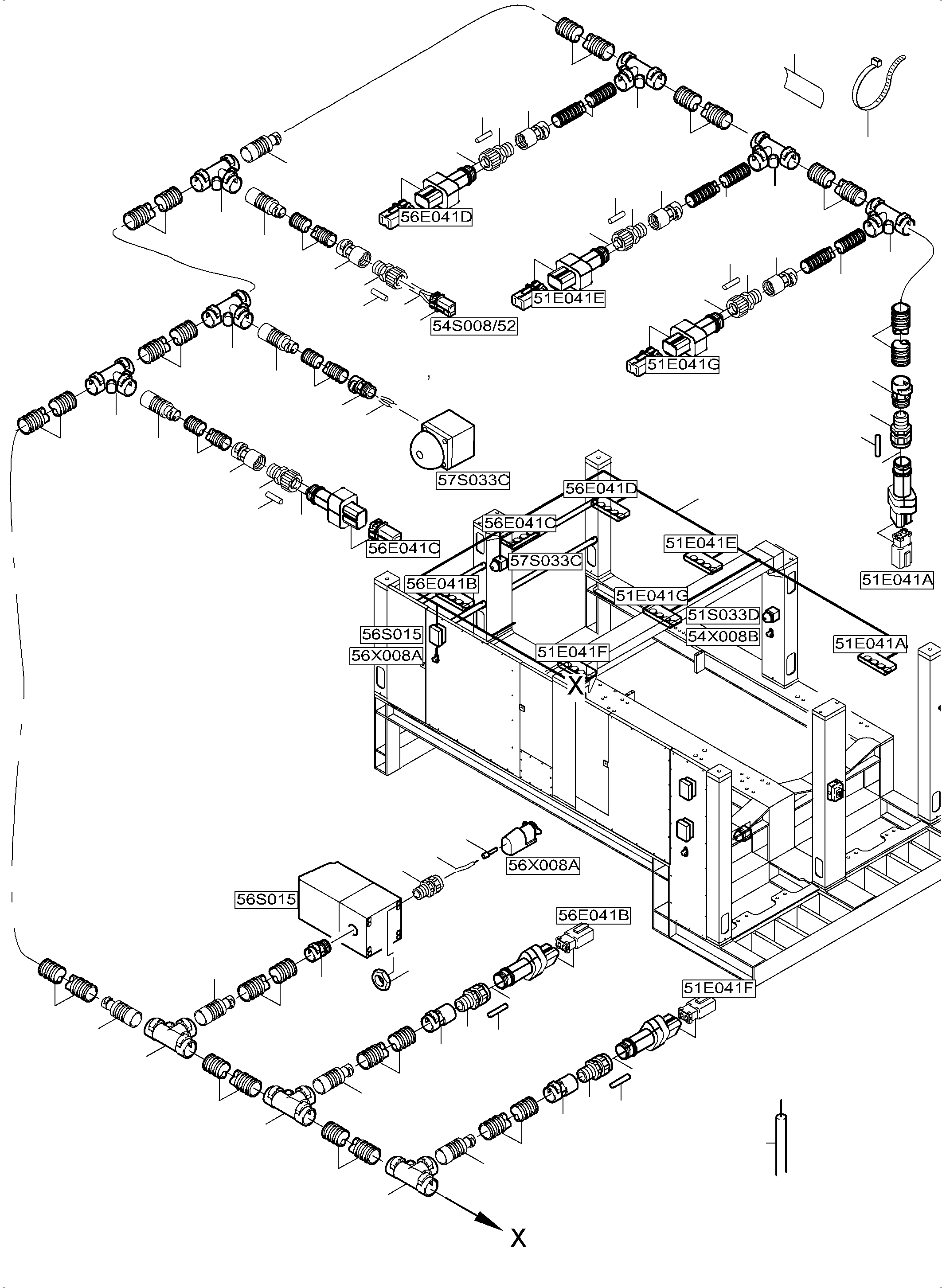

MACHINERY HOUSE ELECTRIC - ROOF AND DRIVE FRAME | PC5500-6E S/N 15124

Diagram image 1 of 6

PC5500-6E S/N 15124

01 02 03 03 04 05 07 07 07 07 07 08 08 08 08 08 09 09 10 11 12 122 13 13 13 13 14 14 14 14 15 15 15 15 16 17 177 21 210 211 212 213 214 215 216 217 22 221 222 227 23 233 234 236 26 27 28 32 33 35 36 37 37 38 38 39 41 42 43

PC5500-6E S/N 15124

101 102 102 103 104 105 105 106 108 108 108 109 109 110 111 111 113 113 113 113 114 115 115 115 116 118 118 118 120 121 122 122 122 122 122 122 122 122 123 123 123 124 124 124 125 129 130 131 131 131 131 132 133 133 133 133 134 135 135 135 135 135 136 137 138 138 138 138 138 147 150 153 22 25

PC5500-6E S/N 15124

101 103 103 103 103 103 103 103 107 111 112 112 115 116 117 117 117 119 122 123 123 124 124 125 125 125 125 125 125 125 125 125 125 129 130 131 131 132 133 133 135 135 138 138 140 140 142 142 143 144 144 146 147 147 148 149 150 151 152 152 161 162 163 164 165 166 167 25 29 34 34

PC5500-6E S/N 15124

101 101 101 101 101 101 101 103 103 103 104 104 104 105 105 105 109 109 109 110 111 112 112 112 114 115 116 118 118 118 118 118 119 119 120 122 122 122 122 122 122 122 122 122 123 123 123 123 124 124 124 124 125 125 127 128 129 130 131 132 133 133 133 133 133 133 133 133 134 135 135 135 135 135 135 135 135 135 136 137 138 138 138 138 138 138 138 138 138 147 150 25

PC5500-6E S/N 15124

115 115 116 122 123 14 16 177 187 188 191 192 193 194 195 196 197 198 199 200 201 202 224 225 225 226 228 229 230 231 232 235 45 45 45 45 46 47 48 48 48 48 48 49 49 49 49 49 50 50 50 50 50 53 54 55 56 57 58 59 60 60 85 86 87 88

PC5500-6E S/N 15124

102 102 103 103 107 107 118 118 122 122 125 125 125 125 127 127 128 133 133 135 135 138 138 140 140 140 140 142 142 142 142 144 144 147 147 147 147 152 172 173 174 175 175 176 177 178 181 182 183 184 185 186 186 187 188 30 30 31 31

#	Part Number	Partname	Quantity
01	940 869 40	Socket	3
02	940 728 40	Safety switch	1
03	940 729 40	Emergency switch-off	4
04	940 726 40	Switch assy.	3
05	592 188 40	Socket	4
07	946 316 40	Retainer	8
08	321 010 99	Screw	32
09	320 976 99	Bolt	22
10	340 904 99	Washer	6
11	949 021 40	Retainer	2
12	950 158 40	Head light assy.	2
13	307 777 99	Bolt	14
14	340 465 99	Washer	28
15	507 037 98	Nut	14
16	0443451210	Clamp DN 10	4
17	0819320010	Clip	2
21		Housing with ballast	-2
22		Light Unit (Lense, reflector, seals, spring with screw)	-2
23	797 352 73	Bulb	-2
25	967 844 40	Harness roof frame	1
26	940 727 40	Ladder button	1
27	950 525 40	Confirm button ladder	1
28	952 617 40	Lamp assy.	11
29	170 495 40	Cable sleeve	1
30	967 843 40	Harness 30X140-40X111	1
31	967 845 40	Harness 30X040-40X011	1
32	949 186 40	Lamp retainer	-2
33	949 185 40	Lamp retainer	-2
34		Terminal box assy.	1
35	941 560 40	Lamp	1
36	509 555 98	Bolt	4
37	507 025 98	Nut	4
38	350 762 99	Washer	4
39	958 963 40	Socket assy. with rubber grommet 2 pole	1
41	006 301 98	Clamp 12/15	3
42	510 210 98	Thread pin	3
43	507 025 98	Nut	3
45	906 413 40	Cable channel 50/100	-2
46	507 037 98	Nut	37
47	507 596 98	Washer	37
48	307 727 99	Bolt	40
49	346 499 99	Lock washer	40
50	350 762 99	Washer	40
53	334 600 99	Nut	4
54	340 652 99	Washer	4
55	307 802 99	Bolt	4
56	919 436 40	Retainer 50/100	10
57	919 437 40	Retainer 50/100	11
58	941 482 40	Thread pin	37
59	517 118 98	Lock washer	4
60	944 947 40	Retainer 50/100	40
85	954 553 40	Harness sockets 51X403-51X404	1
86	954 554 40	Harness sockets 51X405-51X405A	1
87	966 031 40	Harness wall socket 51X406	1
88	966 030 40	Harness wall socket 70X406A	1
101	966 667 40	Plug assy. with rubber grommet 2 pole	9
102	952 675 40	Plug assy. with rubber grommet 2 pole	2
103	907 733 40	T-Distributor DN 23	11
104	655 628 40	T-Distributor DN 10	4
105	655 629 40	T-Distributor DN 17	5
106	906 420 40	T-Distributor DN 12	1
107	940 666 40	Pipe adapter DN 23/10	2
108	655 631 40	Pipe adapter DN 12/10	3
109	655 632 40	Pipe adapter DN 17/10	6
110	655 633 40	Pipe adapter DN 17/12	2
111	655 634 40	Pipe adapter DN 23/17	4
112	907 971 40	Pipe adapter DN 23/12	5
113	056 054 40	Grommet	4
114	907 705 40	Cable union 5x2,5	2
115	940 271 40	Cable union M20/DN10	5
116	907 623 40	Cable union M20/DN12	3
117	907 478 40	Cable union M20/DN17	3
118	940 471 40	Fitting M16/DN10	8
119	907 692 40	Fitting M16/DN12	3
120	940 520 40	Fitting M20/DN12	2
121	655 625 40	Distributor DN 12/10	1
122	655 649 40	Cable protection hose DN 10	-2
123	655 650 40	Cable protection hose DN 12	-2
124	655 651 40	Cable protection hose DN 17	-2
125	655 652 40	Cable protection hose DN 23	-2
127	515 213 40	Cable 1,0	-2
128	655 873 40	Cable 1,5	-2
129	941 777 40	Plate	-2
130	174 411 40	Cable strap	-2
131	056 070 40	Cable sleeve 1,0-1,5	26
132	635 042 40	Wire end ferrule 1,5	13
133	907 703 40	Cable union 4x3	14
134	081 921 69 10	Plug assy.	2
135	896 520 40	End pin 3,0x25	32
136	0819216000	Socket assy.	2
137	0819216300	Wedge	2
138	940 462 40	Insulating tube B6x0,6	-2
140	950 132 40	Protection cap	6
142	907 980 40	Fitting DN 23	6
143	950 112 40	Plug	1
144	0819105320	Pin contact	47
146	950 110 40	Plug	1
147	940 852 40	Plug	33
148	950 131 40	Protection cap	1
149	950 136 40	Plug	1
150	517 327 98	Reducing	3
151	907 976 40	Fitting	1
152	621 698 40	Contact plug 1-2 qmm	26
153	655 626 40	Distributor DN 17/12	1
161	944 948 40	Housing empty	1
162	907 972 40	Union	1
163	507 783 98	Assembly rail	-2
164	490 925 40	Clamp	4
165	940 722 40	Clamp	2
166	414 498 40	Cover plate	1
167	517 332 98	Plug	1
172	950 109 40	Plug assy.	1
173	950 108 40	Plug	1
174	0819105440	Female contact	4
175	0819105420	Female contact	12
176	0819105340	Pin contact	4
177	515 214 40	Cable 2,5	-2
178	621 699 40	Female contact	1
181	950 104 40	Plug assy.	1
182	950 103 40	Plug assy.	1
183	907 553 40	Cable 16,0	-2
184	941 426 40	Bushing contact	1
185	941 427 40	Pin contact	1
186	0819100770	Sealing plate	2
187	950 505 40	Shrinkdown tubing	-2
188	950 508 40	Resin strip	-2
191	634 736 40	Cable 2,5 sw	-2
192	655 082 40	Cable 2,5 ge/gwn	-2
193	056 071 40	Cable sleeve 2,5	24
194	950 208 40	End grommet	2
195	515 215 40	Cable 25mm2	-2
196	950 780 40	Cable 25,0gr/ye	-2
197	906 023 40	Cable 25,0bl	-2
198	906 670 40	Wire end ferrule 25,0	20
199	655 834 40	Cable protection hose DN 36	-2
200	907 691 40	Cable union DN 36	2
201	950 211 40	End grommet	2
202	940 664 40	Seal	2
210	898 629 40	Rotaflare light yellow assy.	1
211	970 526 40	Retainer	1
212	896 497 40	Rotaflare light 24 yellow	1
213	655 621 40	Cable union PG9/DN 10	1
214	180 322 40	Plug	1
215	323 960 40	Tab	2
216	440 461 40	Wall socket 63A, water proofed	2
217	440 462 40	Plug, water proofed	2
221	950 726 40	Plug	1
222	950 899 40	Seal	1
224	959 433 40	Retainer	7
225	343 005 99	Washer	28
226	307 777 99	Bolt	26
227	966 000 40	Lamp retainer	1
228	518 042 98	Clamp set	7
229	534 004 99	Cover plate	7
230	308 581 99	Bolt	14
231	950 468 40	Cable channel 60/200	-2
232	966 001 40	Retainer	8
233	0819320010	Clip	11
234	343 110 99	Lock washer	14
235	0443452711	Clamp DN 23	2
236	307 729 99	Bolt	44
