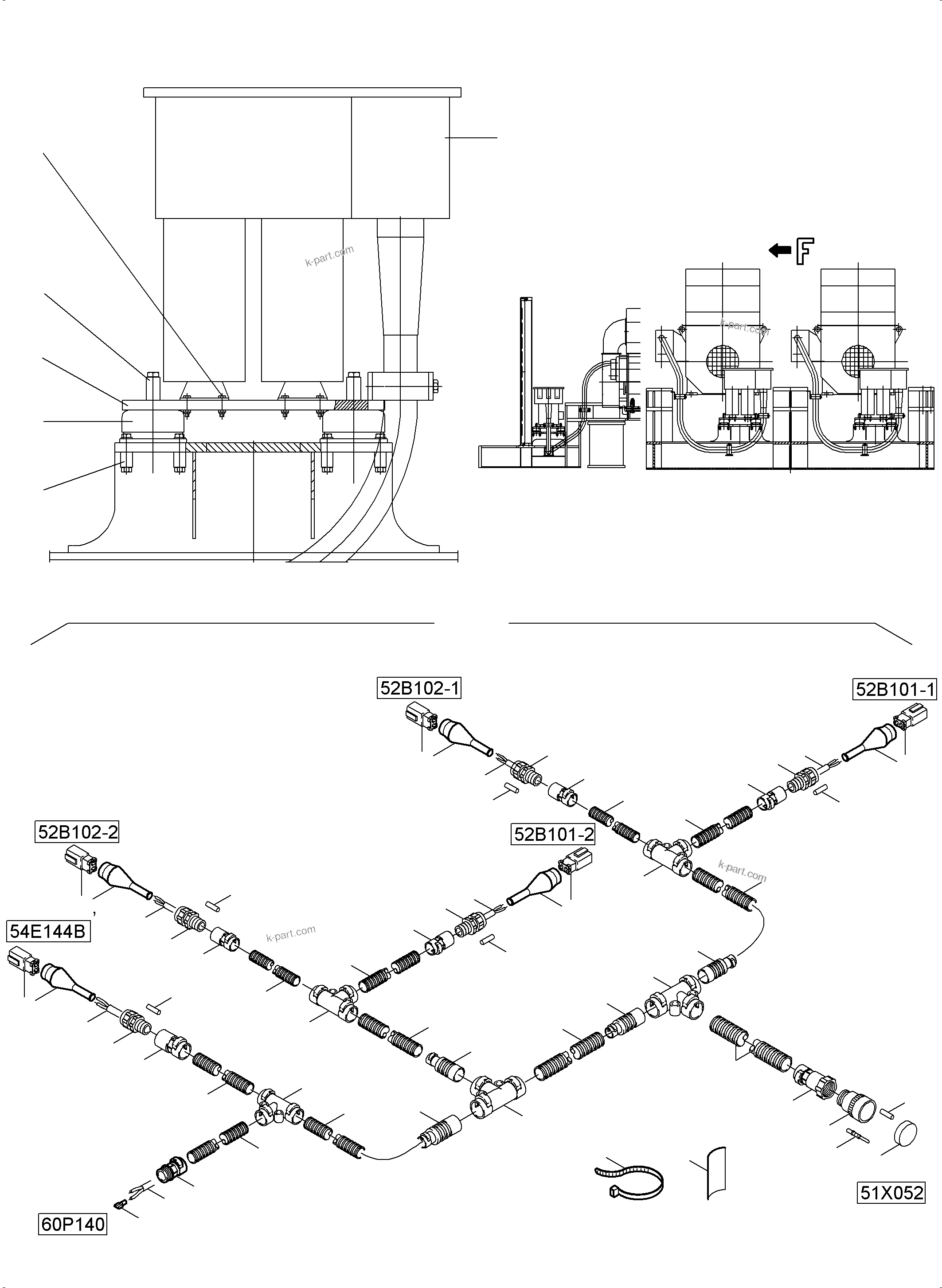

Diagram image 1 of 2

PC5500-6E S/N 15124

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6E S/N 15124

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?		Capacitor aasy.	2
?	969 198 40	Plate	2
?	896 741 40	Shock absorber	8
?	308 638 99	Bolt	8
?	510 733 98	Resilient sleeve	8
?	308 610 99	Bolt	32
?	510 744 98	Resilient sleeve	32
?	316 216 99	Washer	32
?	308 554 99	Bolt	16
?	334 599 99	Nut	16
?	340 464 99	Washer	32
?	332 334 99	Nut	32
?	966 004 40	Cable harness capacitor / movement signal	1
?	515 213 40	Cable 1,0	-2
?	950 136 40	Plug	1
?	0819105340	Pin contact	8
?	940 852 40	Plug	16
?	950 131 40	Protection cap	1
?	907 975 40	Fitting DN17	1
?	955 627 40	Plug 3 pole	4
?	940 461 40	Insulating tube B5x0,6	-2
?	940 471 40	Fitting M16/DN10	5
?	907 703 40	Cable union 4x3,0	5
?	896 520 40	End pin 3,0x25	10
?	941 777 40	Plate	-2
?	174 411 40	Cable strap	-2
?	952 675 40	Plug assy. with rubber grommet 2 pole	1
?	940 271 40	Cable union DN 10	1
?	056 070 40	Cable sleeve 1,0-1,5	2
?	655 628 40	T-Distributor DN 10	3
?	906 420 40	T-Distributor DN 12	1
?	655 629 40	T-Distributor DN 17	1
?	655 631 40	Pipe adapter DN 12/10	2
?	655 632 40	Pipe adapter DN 17/10	2
?	655 633 40	Pipe adapter DN 17/12	1
?	655 649 40	Cable protection hose DN 10	-2
?	941 840 40	Protective hose DN 12	-2
?	655 651 40	Cable protection hose DN 17	-2
?		Connection side left	-1
?	953 083 40	Harness - winding temperature - motor 1 , left hand	1
?	953 085 40	Harness - heater - motor 1 , left hand	1
?	953 084 40	Harness - winding temperature - motor 2 , left hand	1
?	953 086 40	Harness - heater - motor 2 , left hand	1
?		Connection side right	-1
?	958 561 40	Harness - winding temperature - motor 1 , right hand	1
?	958 564 40	Harness - heater - motor 1 , right hand	1
?	958 566 40	Harness - heater - motor 2 , right hand	1
?	958 567 40	Harness - winding temperature - motor 2 , right hand	1
?		Option end	-1
?	950 110 40	Plug	2
?	0819105320	Pin contact	40
?	950 132 40	Protection cap	2
?	500 090 98	Wire end ferrule 0,75-6	40
?	940 169 40	Cable 4x1	-2
?	907 981 40	Fitting 35"/DN29	2
?	655 696 40	Cable protection hose DN 29	-2
?	907 947 40	Connector distributor DN 29/23	2
?	655 634 40	Pipe adapter DN 23/17	2
?	655 652 40	Cable protection hose DN 23	-2
?	655 627 40	Distributor DN 23/17	2
?	950 207 40	End grommet	2
?	950 209 40	End grommet	4
?	907 890 40	Cable 1,5sw	-2
?	655 873 40	Cable 1,5	-2
?	655 079 40	Cable 1.5 gr/ge	-2
?	655 621 40	Cable union DN 10	2
?	635 042 40	Wire end ferrule 1,5	2
?	950 207 40	End grommet	2
?	955 680 40	Ground cable Cover-Box M1	-2
?	955 681 40	Ground cable Terminal-Base M1	-2
?	955 682 40	Ground cable Terminal-Base-Motor M1	-2
?	955 683 40	Ground cable Motor-Motorframe M1	-2
?	955 684 40	Ground cable Capacitor-Base M1	-2
?	955 685 40	Ground cable Capacitor-Frame-Base M1	-2
?	955 687 40	Ground cable Cover-Box M2	-2
?	955 688 40	Ground cable Terminal-Base M2	-2
?	955 689 40	Ground cable Terminal-Base-Motor M2	-2
?	955 690 40	Ground cable Motor-Motorframe M2	-2
?	955 691 40	Ground cable Capacitor-Base M2	-2
?	955 692 40	Ground cable Capacitor-Frame-Base M2	-2
?	056 076 40	Protection cap	-2
?	654 425 40	Cable lug 50/12	-2
?	517 392 98	Cable 50,0	-2
?	654 424 40	Cable lug 50/10	-2

Komatsu PC5500-6E S/N 15124 parts catalog PDF

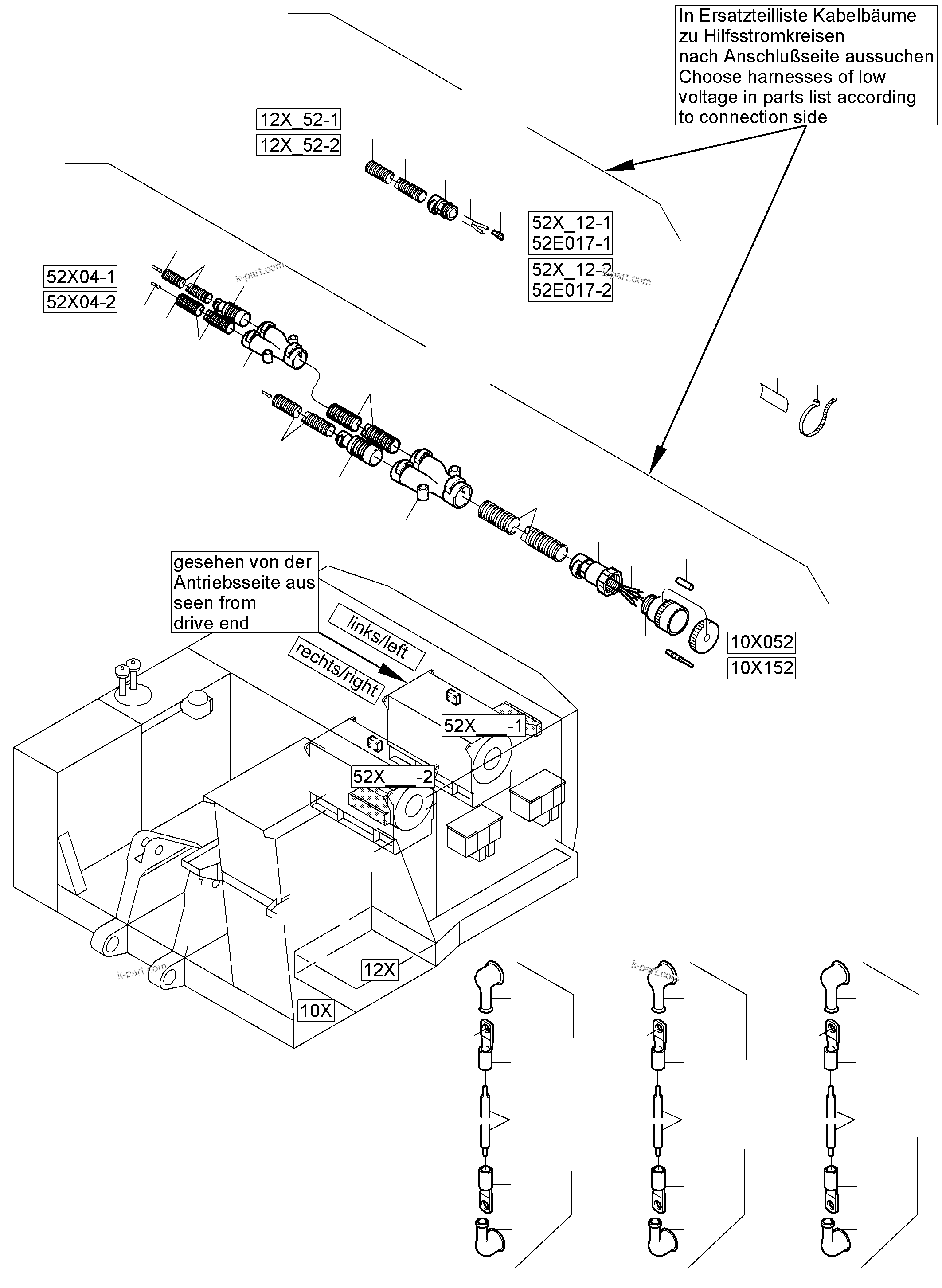

MACHINE HOUSE - CAPACITOR ARR. - MOTOR HARNESSES (715-2252f) in PC5500-6E S/N 15124. Diagram image and parts list.
