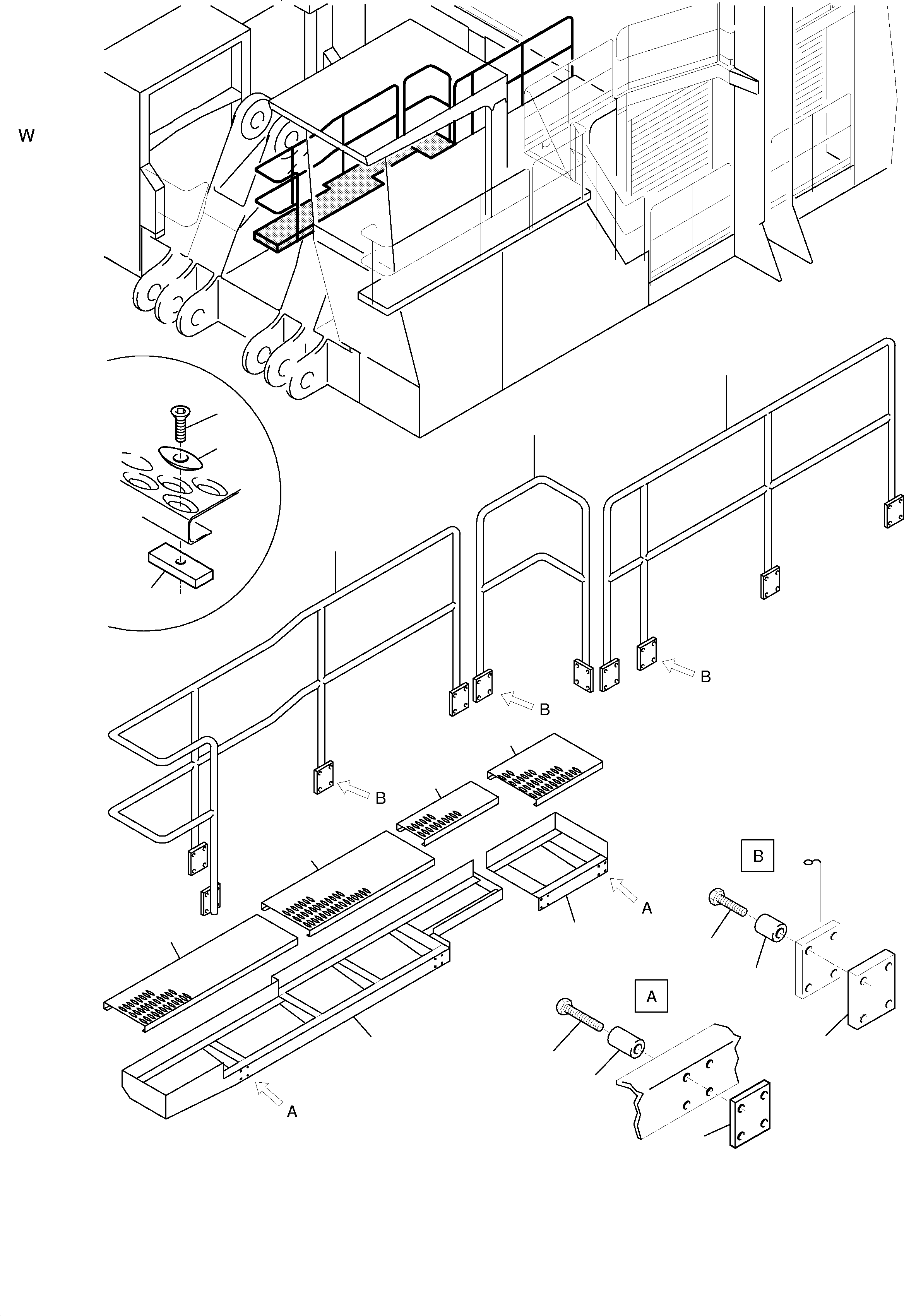

Komatsu parts book diagram for H455-SD S/N 15009: CATWALK, CABIN R.H.

01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18

	#	Part Number	Partname	Quantity	Options	Reference
	01	872 270 40	Catwalk	1	InternKon: 872 273 40 / 1
	02	872 271 40	Catwalk	1	InternKon: 872 273 40 / 2
	03	346 517 40	Grid 300x1170	1	InternKon: 872 273 40 / 10
	04	371 493 40	Grid 360x930	1	InternKon: 872 273 40 / 11
	05	346 516 40	Grid 180x510	1	InternKon: 872 273 40 / 12
	06	323 314 40	Grid 360x480	1	InternKon: 872 273 40 / 13
	07	872 272 40	Thread plate	4	InternKon: 872 273 40 / 6
	08	510 730 98	Resilient sleeve	16	InternBDB: 17/30x55 \| InternKon: 872 273 40 / 7
	09	308 426 99	Bolt	16	InternBDB: M16x80 \| InternKon: 872 273 40 / 8
	10	494 284 40	Thread plate	10
	11	510 744 98	Resilient sleeve	40	InternBDB: 13/25x32
	12	308 605 99	Bolt	40	InternBDB: M12x55
	13	502 354 98	Bolt	16	InternBDB: M8x40 \| InternKon: 872 273 40 / 16
	14	317 318 40	Wing nut, plastic	16	InternKon: 872 273 40 / 15
	15	317 319 40	Threaded block	16	InternKon: 872 273 40 / 14
	16	661 665 40	Rail	1	InternKon: 872 273 40 / 3
	17	661 662 40	Rail	1	InternKon: 872 273 40 / 4
	18	661 660 40	Rail	1	InternKon: 872 273 40 / 5

Komatsu H455-SD S/N 15009 parts catalog PDF

CATWALK, CABIN R.H. (515-1055) in H455-SD S/N 15009. Diagram image and parts list.
