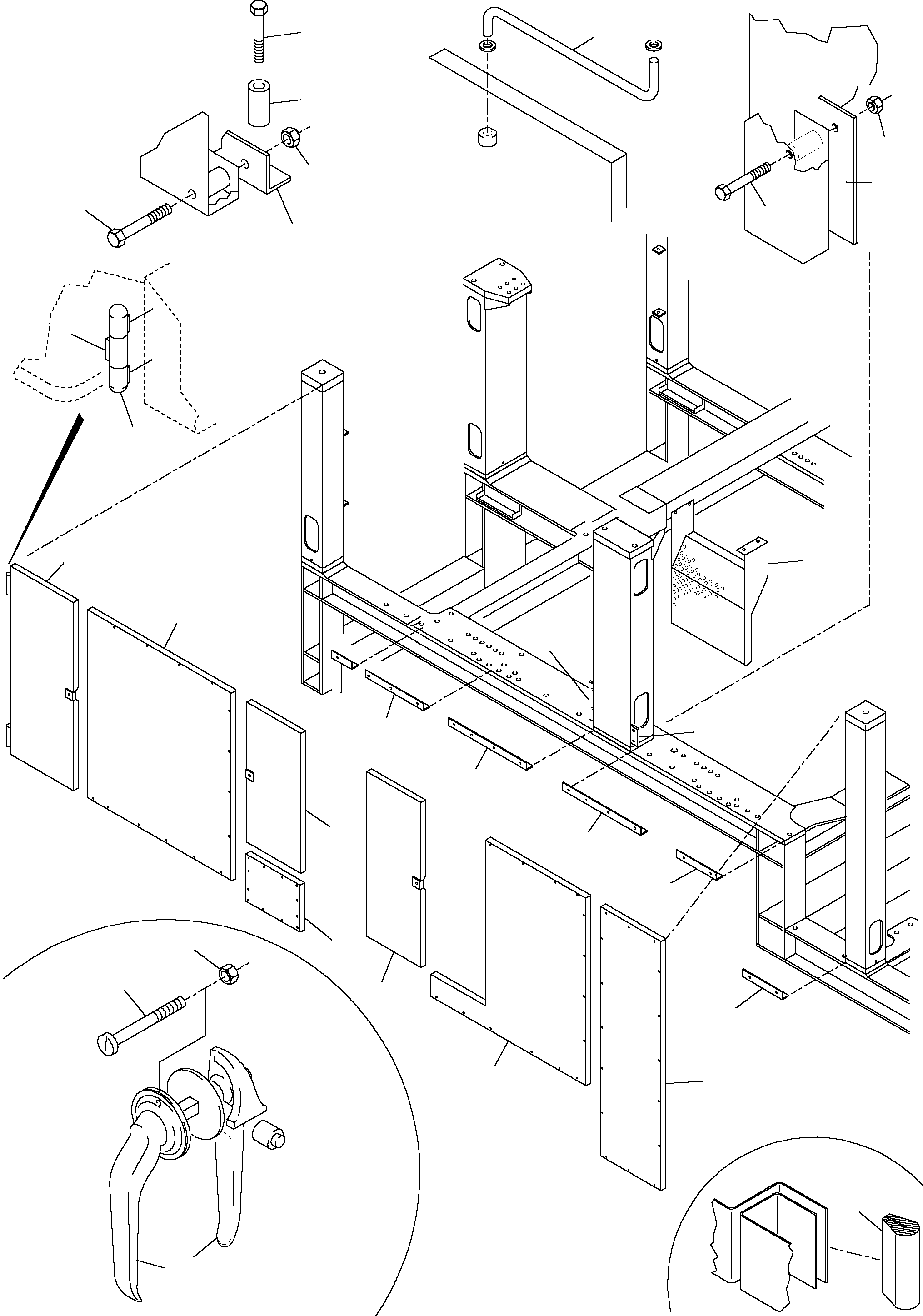

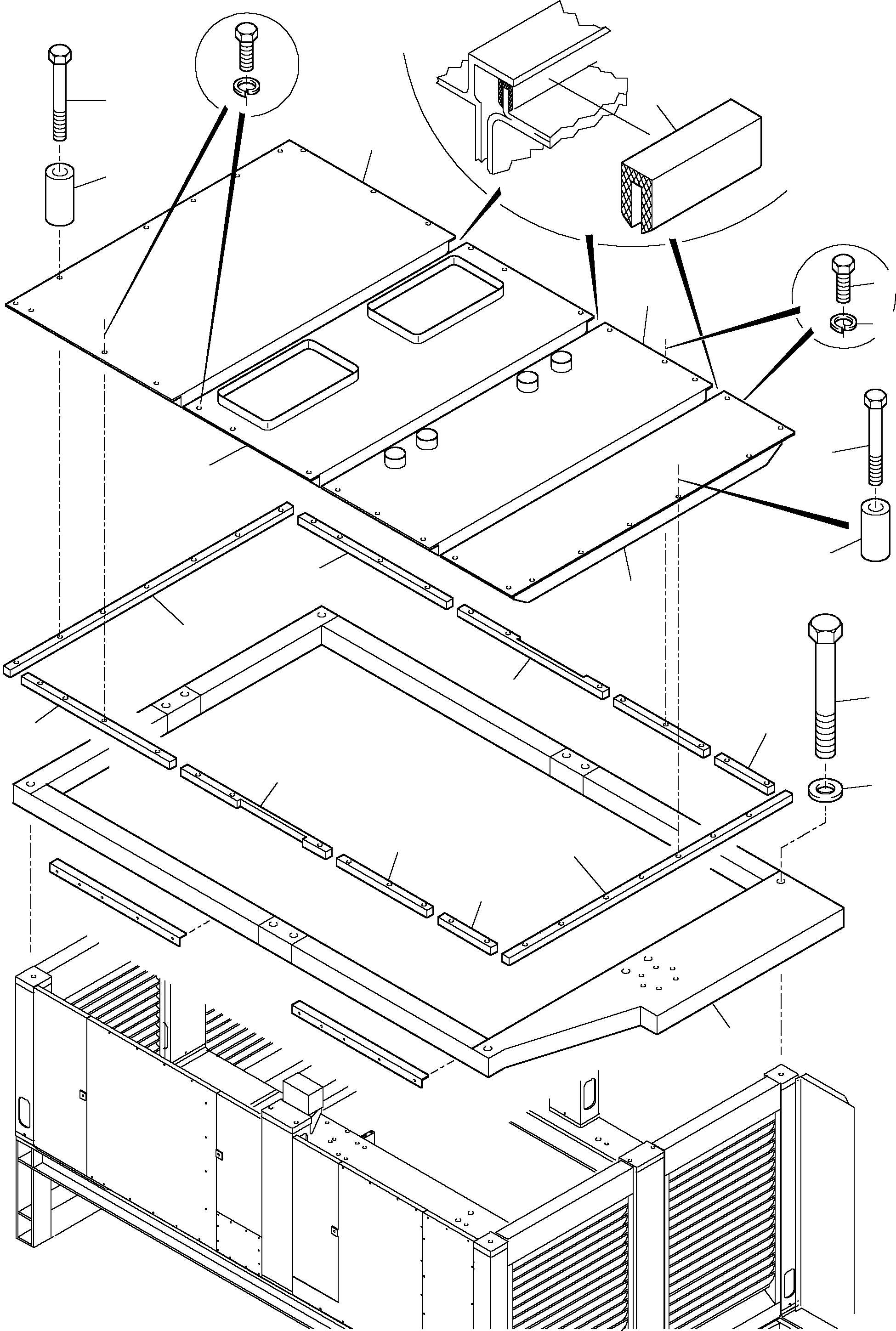

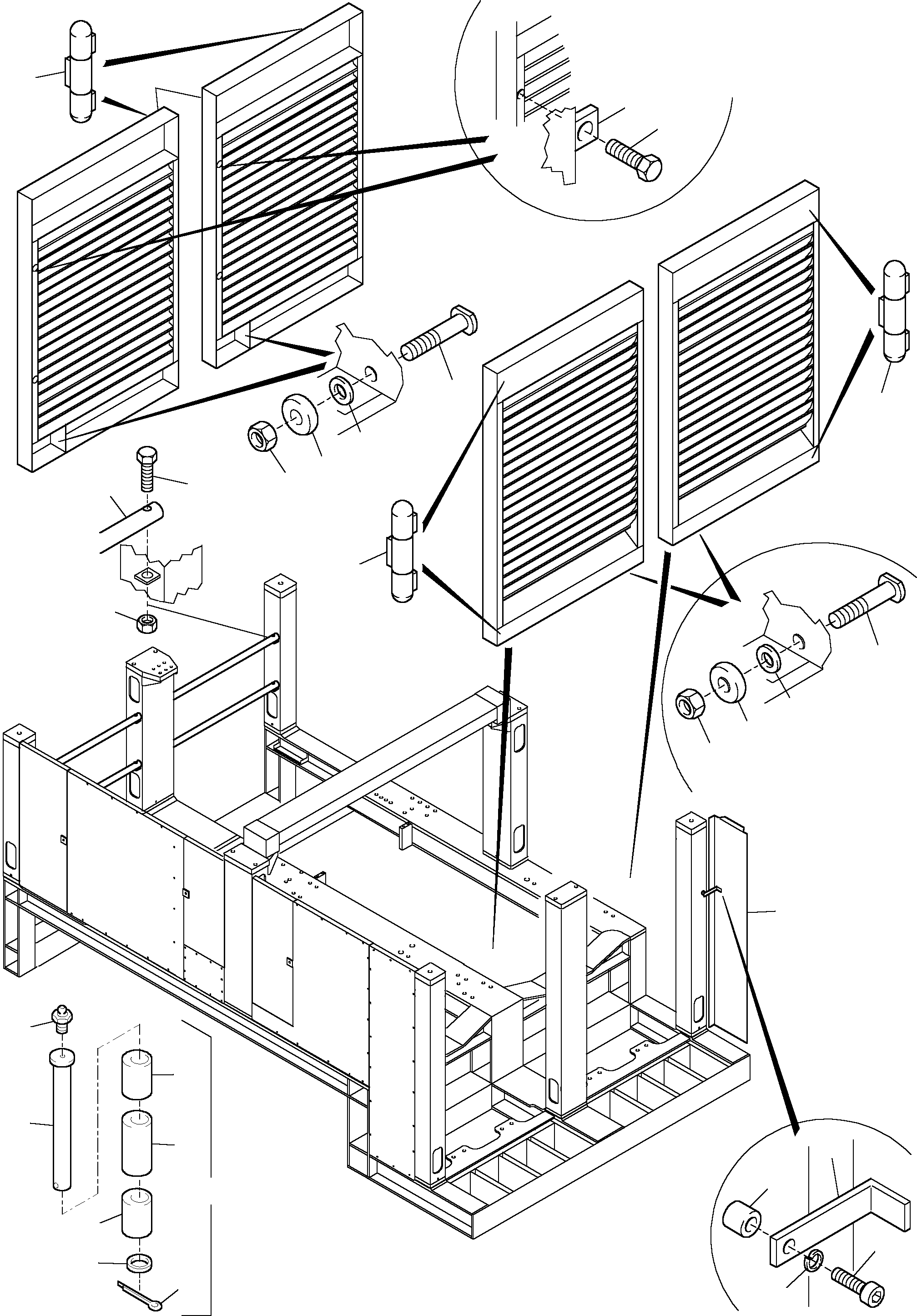

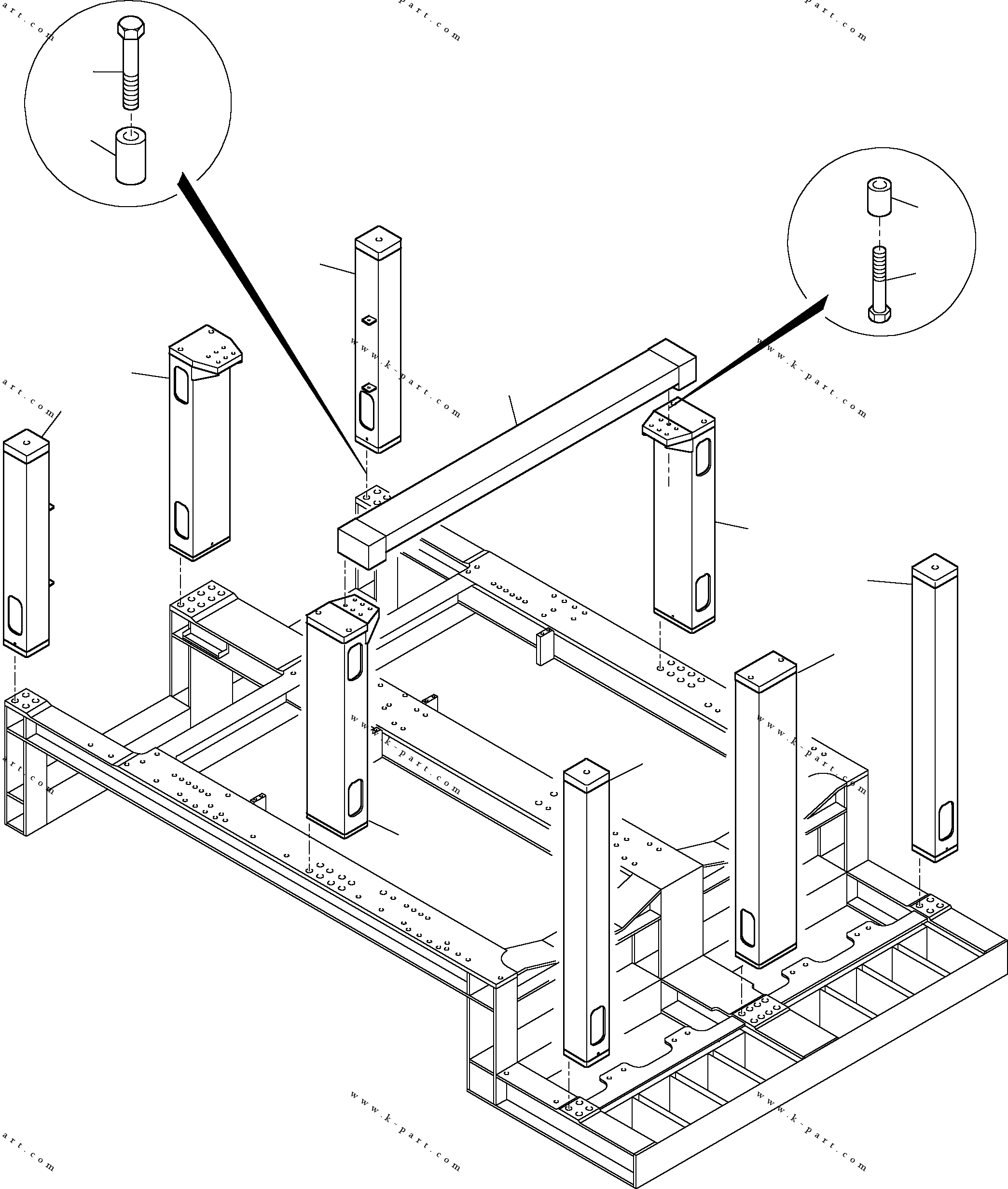

Diagram image 1 of 4

H455-SD S/N 15009

01 02 03 04 05 06 06 07 07 08 09 10 11 11 12 12 13 14 15 16 16 20 21

H455-SD S/N 15009

25 26 26 26 26 27 28 29 29 30 31 32 35 36 37 37 38 38 39 39 40 40 41 42 43 44 45 46 47 48

H455-SD S/N 15009

26 50 51 52 53 54 55 56 57 58 59 60 60 61 62 63 63 64 65 66 67 68 69 70 71 71 72 72 73 90

H455-SD S/N 15009

75 76 77 78 79 80 81 82 83 84 85 86 87

#	Part Number	Partname	Quantity	Options
01	660 010 40	Roof frame	1	InternKon: 653 560 40 / 1
02	660 015 40	Roof section	1	InternKon: 660 005 40 / 1
03	652 846 40	Roof section	1	InternKon: 660 005 40 / 2
04	660 025 40	Roof section	1	InternKon: 660 005 40 / 3
05	887 086 40	Roof section	1	InternKon: 660 005 40 / 4
06	308 436 99	Bolt	50	InternBDB: M12x75 \| InternKon: 660 005 40 / 12
07	510 741 98	Resilient sleeve	50	InternKon: 660 005 40 / 11
08	592 259 40	Profiled joint Bulk ware, state length required	-2	InternBDB: GHE 461 0075 ca 11 mm \| InternKon: 660 005 40 / 13
09	307 802 99	Bolt	12	InternBDB: M12x25 \| InternKon: 660 005 40 / 15
10	346 498 99	Lock washer	12	InternKon: 660 005 40 / 16
11	660 003 40	Threaded rail	2	InternKon: 660 005 40 / 5
12	660 004 40	Threaded rail	2	InternKon: 660 005 40 / 6
13	660 007 40	Threaded rail	1	InternKon: 660 005 40 / 8
14	660 006 40	Threaded rail	1	InternKon: 660 005 40 / 7
15	660 008 40	Threaded rail	2	InternKon: 660 005 40 / 9
16	660 009 40	Threaded rail	2	InternKon: 660 005 40 / 10
20	304 172 99	Bolt	12	InternBDB: M36x260 \| InternKon: 653 550 40 / 15
21	255 056 40	Washer	12	InternBDB: 37 \| InternKon: 653 550 40 / 16
25	653 599 40	Outer door	2	InternKon: 653 550 40 / 9
26	390 199 40	Hinge assy.	4	InternKon: 653 550 40 / 17
27	350 562 99	Grease nipple	4	InternBDB: AM 10x1 \| InternKon: 390 199 40 / 6
28	621 108 40	Pin	4	InternKon: 390 199 40 / 1
29	390 600 40	Bushing	8	InternKon: 390 199 40 / 2
30	390 601 40	Bushing	4	InternKon: 390 199 40 / 3
31	340 612 99	Washer	4	InternKon: 390 199 40 / 4
32	342 061 99	Cotter pin	4	InternBDB: 4x32 \| InternKon: 390 199 40 / 5
35	308 321 99	Bolt	8	InternBDB: M16x90 \| InternKon: 653 550 40 / 19
36	674 901 40	Plate	8	InternKon: 653 550 40 / 18
37	621 084 40	Pin	4	InternKon: 653 599 40 / 3
38	340 621 99	Washer	4	InternBDB: 32 \| InternKon: 653 599 40 / 4
39	390 636 40	Roller	4	InternKon: 653 599 40 / 2
40	504 441 98	Nut	4	InternBDB: 30 /439 \| InternKon: 653 599 40 / 5
41	674 904 40	Pipe	4	InternKon: 653 550 40 / 26
42	307 806 99	Bolt	8	InternBDB: M12x40 \| InternKon: 653 550 40 / 27
43	334 600 99	Nut	8	InternBDB: M 12 \| InternKon: 653 550 40 / 28
44	674 902 40	Wall	1	InternKon: 653 550 40 / 20
45	882 716 40	Retainer	1	InternKon: 653 550 40 / 21
46	324 596 40	Bearing	1	InternBDB: Freudenberg B 52 18 124 \| InternKon: 650 582 40 / 22
47	346 510 99	Lock washer	1	InternBDB: 8 \| InternKon: 650 582 40 / 24
48	377 750 99	Bolt	1	InternBDB: M8x16 \| InternKon: 650 582 40 / 23
50	660 864 40	Door	1	InternKon: 661 600 40 / 1
51	660 867 40	Wall	1	InternKon: 661 600 40 / 2
52	886 919 40	Door	1	InternKon: 661 600 40 / 3
53	886 915 40	Wall	1	InternKon: 661 600 40 / 4
54	660 879 40	Door	1	InternKon: 661 600 40 / 5
55	873 077 40	Wall	1	InternKon: 661 600 40 / 6
56	660 887 40	Wall	1	InternKon: 661 600 40 / 7
57	551 182 40	Fastener	3	InternBDB: Emka 1091-U1 \| InternKon: 661 600 40 / 16
58	318 116 99	Screw	6	InternBDB: AM 4x50 \| InternKon: 661 600 40 / 20
59	332 442 99	Nut	6	InternBDB: M 4 \| InternKon: 661 600 40 / 21
60	661 613 40	Angle	1	InternKon: 661 600 40 / 8
61	661 614 40	Angle	1	InternKon: 661 600 40 / 9
62	661 615 40	Angle	1	InternKon: 661 600 40 / 10
63	872 282 40	Shackle	1	InternKon: 661 600 40 / 11
64	539 761 40	Pipe	3	InternKon: 661 600 40 / 12
65	661 618 40	Angle	1	InternKon: 661 600 40 / 13
66	661 619 40	Angle	1	InternKon: 661 600 40 / 14
67	661 620 40	Angle	1	InternKon: 661 600 40 / 15
68	166 575 40	Profiled joint Bulk ware, state length required	-2	InternBDB: GHE 461 0048 \| InternKon: 661 600 40 / 18
69	510 741 98	Resilient sleeve	15	InternBDB: 13/25x50 \| InternKon: 661 600 40 / 23
70	308 608 99	Bolt	15	InternBDB: M12x70 \| InternKon: 661 600 40 / 19
71	308 610 99	Bolt	34	InternBDB: M12x80 / 931 \| InternKon: 661 600 40 / 24
72	334 600 99	Nut	34	InternBDB: M12 / 985 \| InternKon: 661 600 40 / 22
73	872 283 40	Door catch	2	InternKon: 653 550 40 / 33
75	624 002 40	Post	1	InternKon: 653 550 40 / 1
76	651 870 40	Post	1	InternKon: 653 550 40 / 2
77	624 000 40	Post	1	InternKon: 653 550 40 / 3
78	624 004 40	Post	1	InternKon: 653 550 40 / 4
79	651 877 40	Post	1	InternKon: 653 550 40 / 5
80	675 681 40	Post	1	InternKon: 653 550 40 / 6
81	651 873 40	Post	1	InternKon: 653 550 40 / 7
82	651 880 40	Bridge	1	InternKon: 653 550 40 / 8
83	510 742 98	Resilient sleeve	12	InternKon: 653 550 40 / 13
84	510 725 98	Resilient sleeve	48	InternKon: 653 550 40 / 11
85	304 369 99	Bolt	48	InternBDB: M30x180 \| InternKon: 653 550 40 / 10
86	308 404 99	Bolt	12	InternBDB: M24x140 \| InternKon: 653 550 40 / 14
87	873 082 40	Post	1	InternKon: 653 550 40 / 29
90	873 001 40	Cover plate	1	InternBDB: DKG

Komatsu H455-SD S/N 15009 parts catalog PDF

MACHINERY HOUSE (515-1064a) in H455-SD S/N 15009. Diagram image and parts list.
