H455-SD S/N 15009

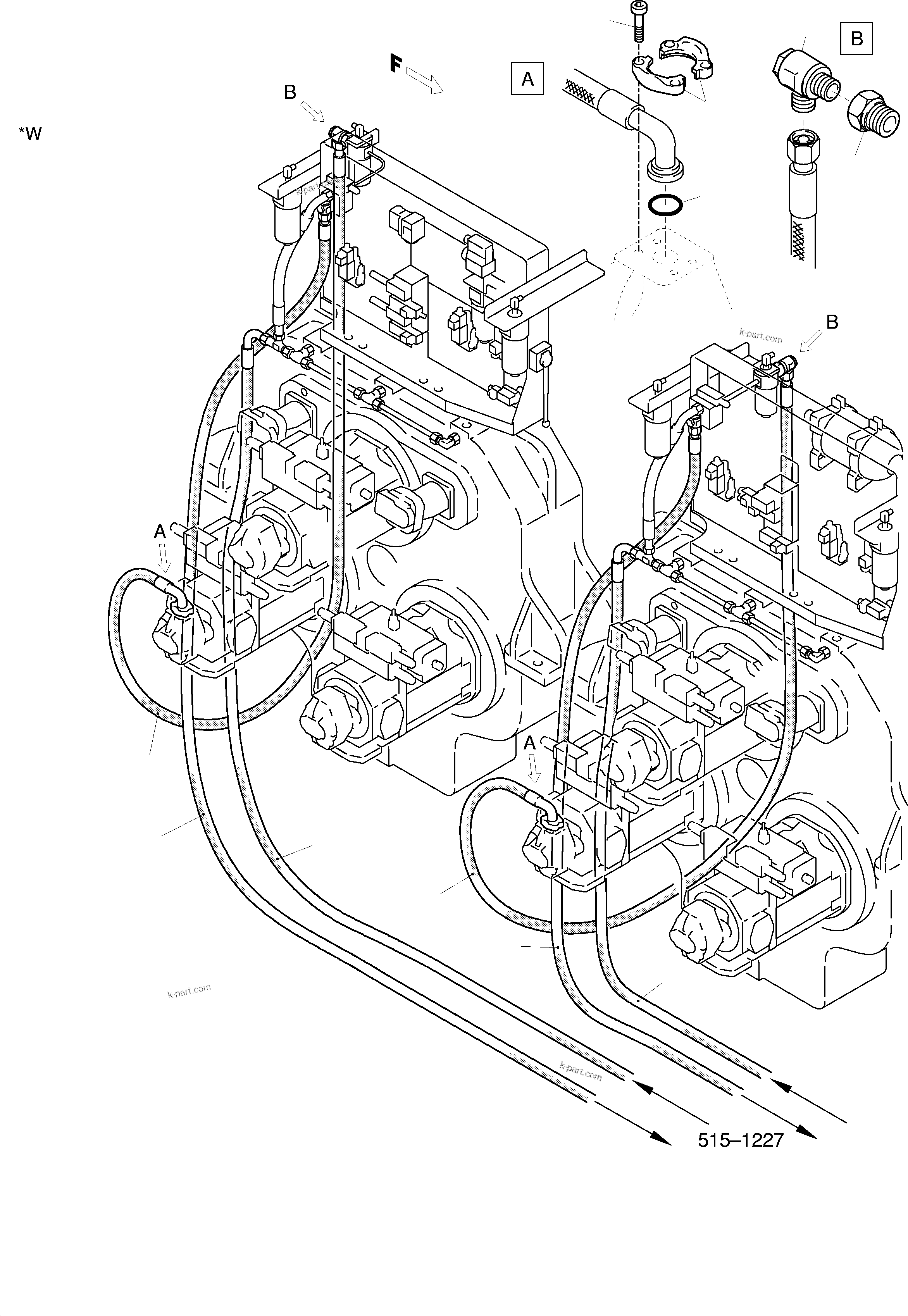

Komatsu parts book diagram for H455-SD S/N 15009: COOLING - DISTRIBUTOR GEAR (PUMP)

? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	513 828 98	Hose assy. DN 25 x 3800	2	InternBDB: DOL 28 / FL 1 1/4-90 \| InternKon: 674 955 40 / 9
	?	514 173 98	Hose assy. DN 25 x 8200	1	InternBDB: DOL 28 / DOL 28 \| InternKon: 674 955 40 / 16
	?	514 174 98	Hose assy. DN 25 x 9100	1	InternBDB: DoL 28 / DOL 28 \| InternKon: 674 955 40 / 17
	?	512 376 98	Hose assy. DN 25 x 9850	1	InternBDB: DOL 28 / DOL 28-90 \| InternKon: 674 955 40 / 18
	?	513 835 98	Hose assy. DN 25x10000	1	InternKon: 674 955 40 / 19
	?	356 210 40	O-ring	2	InternBDB: 1 1/4 \| InternKon: 674 955 40 / 50
	?	006 633 40	Half flange	4	InternBDB: 32 /210 \| InternKon: 674 955 40 / 49
	?	319 257 99	Bolt	8	InternBDB: M10x30 \| InternKon: 674 955 40 / 51
	?	006 895 98	Union	1	InternBDB: 28-LR \| InternKon: 674 927 40 / 21
	?	372 885 99	Union	1	InternBDB: RI 1 1/4 x 1 \| InternKon: 674 927 40 / 20
	?	006 895 98	Union	1	InternBDB: 28-LR \| InternKon: 674 928 40 / 31
	?	372 885 99	Union	1	InternBDB: RI 1 1/4 x 1 \| InternKon: 674 928 40 / 30

Komatsu H455-SD S/N 15009 parts catalog PDF

COOLING - DISTRIBUTOR GEAR (PUMP) (515-1225b) in H455-SD S/N 15009. Diagram image and parts list.
