H455-SD S/N 15009

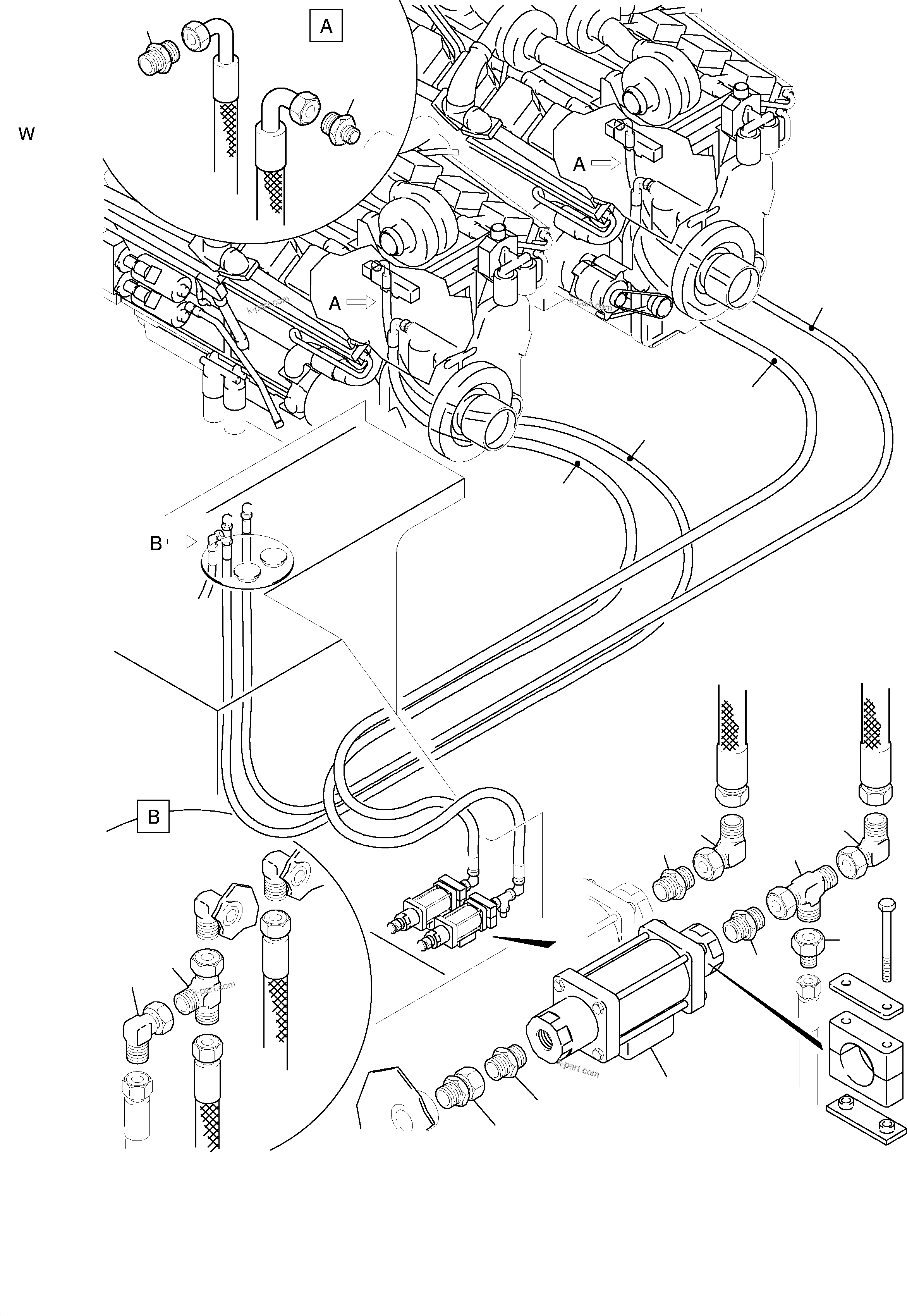

Komatsu parts book diagram for H455-SD S/N 15009: FUEL LINES

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?		Check valve part	2	InternBDB: 449 186 40 ( Mьller MK 25 ) \| InternKon: 480 716 40 / 1	515-2015
	?	374 439 99	Union	4	InternBDB: L 28 /3901 \| InternKon: 872 269 40 / 2
	?	371 941 99	Union	2	InternBDB: EVGE 28-LM \| InternKon: 872 269 40 / 3
	?	371 957 99	Union	2	InternBDB: FFL 28 /2353 \| InternKon: 872 269 40 / 4
	?	372 916 99	Union	1	InternBDB: KOR 28/18-L \| InternKon: 872 269 40 / 5
	?	371 955 99	Union	2	InternBDB: FFL 18 \| InternKon: 872 269 40 / 6
	?	372 174 99	Union	1	InternBDB: DDL 18 \| InternKon: 872 269 40 / 7
	?	372 176 99	Union	2	InternBDB: DDL 28
	?	374 437 99	Union	2	InternBDB: L 18 - G 1/2 \| InternKon: 652 851 40 / 28
	?	330 987 40	Union	2	InternBDB: DKG \| InternKon: 652 851 40 / 27
	?	514 064 98	Hose assy. DN 16x10900	1	InternBDB: DOL 18 DKJ7/8 90 \| InternKon: 652 851 40 / 30
	?	514 063 98	Hose assy. DN 16x8900	1	InternBDB: DOL 18 DKJ7/8 90 \| InternKon: 652 851 40 / 26
	?	513 976 98	Hose assy. DN 25x6100	1	InternBDB: DOL 28 /DOL 28-90 \| InternKon: 652 851 40 / 29
	?	512 620 98	Hose assy. DN 25x4200	1	InternBDB: DOL 28 /DOL 28-90 \| InternKon: 652 851 40 / 25

Komatsu H455-SD S/N 15009 parts catalog PDF

FUEL LINES (515-1275a) in H455-SD S/N 15009. Diagram image and parts list.
