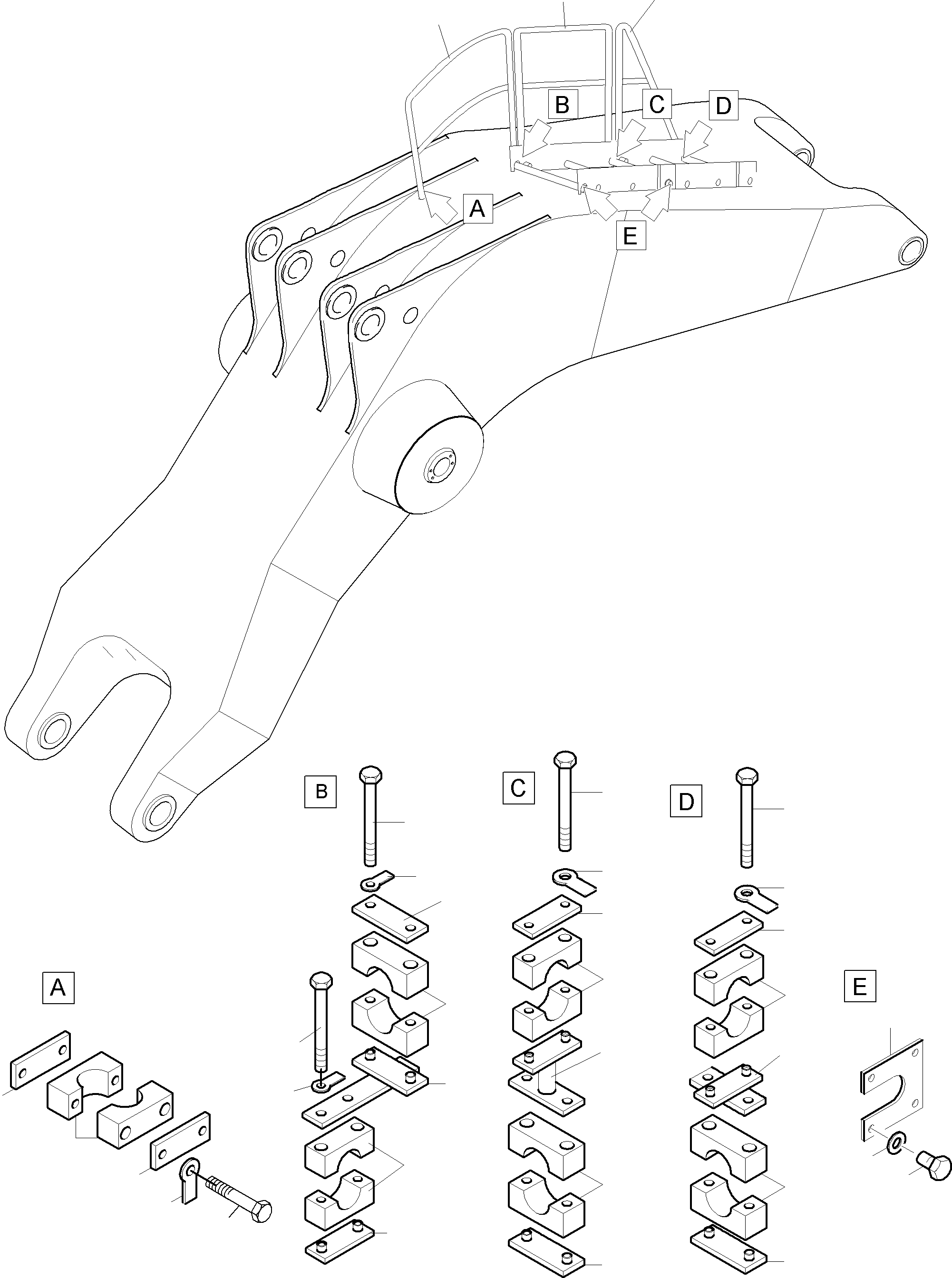

Komatsu parts book diagram for PC3000-6 S/N 46174: LADDER WITH RAIL - BACKHOE BOOM 8,6 M

01 02 03 04 05 06 07 08 08 08 09 09 09 1 1 1 1 10 10 10 10 11 11 11 11 12 12 12 12 13 13 13 13 14 15 15 16 16 17

	#	Part Number	Partname	Quantity	Options	Reference
	01	936 969 40	Ascent segment	1	InternKon: 942 613 40 / 1
	02	936 973 40	Ascent segment	1	InternKon: 942 613 40 / 2
	03	942 614 40	Ascent segment	1	InternKon: 942 613 40 / 3
	04	937 665 40	Retainer	2	InternKon: 942 613 40 / 4
	05	936 988 40	Retainer	2	InternKon: 942 613 40 / 5
	06	942 617 40	Retainer	1	InternKon: 942 613 40 / 6
	07	942 619 40	Retainer	1	InternKon: 942 613 40 / 7
	08	504 004 98	Half clamp	7	InternBDB: S-4-R-38 / AL / DIN 03015 \| InternKon: 942 613 40 / 8
	09	534 008 99	Cover plate	7	InternBDB: S-DP-A-4 / W1 / DIN 03015 \| InternKon: 942 613 40 / 9
	10	308 612 99	Hexagon screw	26	InternBDB: M12 x 100 / 8.8 / DIN 00931 \| InternKon: 942 613 40 / 10
	11	509 310 98	Lock washer	7	InternBDB: SG-BL SI 6 / UST1203 / WN 01183999 \| InternKon: 942 613 40 / 11
	12	504 445 98	Half clamp	5	InternBDB: S-4-R-65 / AL / DIN 03015 \| InternKon: 942 613 40 / 12
	13	534 009 99	Weld on plate	7	InternBDB: A-Platte S-AP-A-4 / W1 / DIN 03015 \| InternKon: 942 613 40 / 13
	14	502 976 98	Half clamp	1	InternBDB: S-4-R-50 / AL / DIN 03015 \| InternKon: 942 613 40 / 14
	15	936 985 40	Plate	4	InternBDB: 90 x 110 \| InternKon: 942 613 40 / 15
	16	307 775 99	Hexagon screw	16	InternBDB: M10 x 20 / 8.8 / DIN 00933 \| InternKon: 942 613 40 / 16
	17	343 065 99	Washer	16	InternBDB: 10,5 / ST / DIN 00463 \| InternKon: 942 613 40 / 17

Komatsu PC3000-6 S/N 46174 parts catalog PDF

LADDER WITH RAIL - BACKHOE BOOM 8,6 M (485-4025d) in PC3000-6 S/N 46174. Diagram image and parts list.
