01 |
931 505 40
|

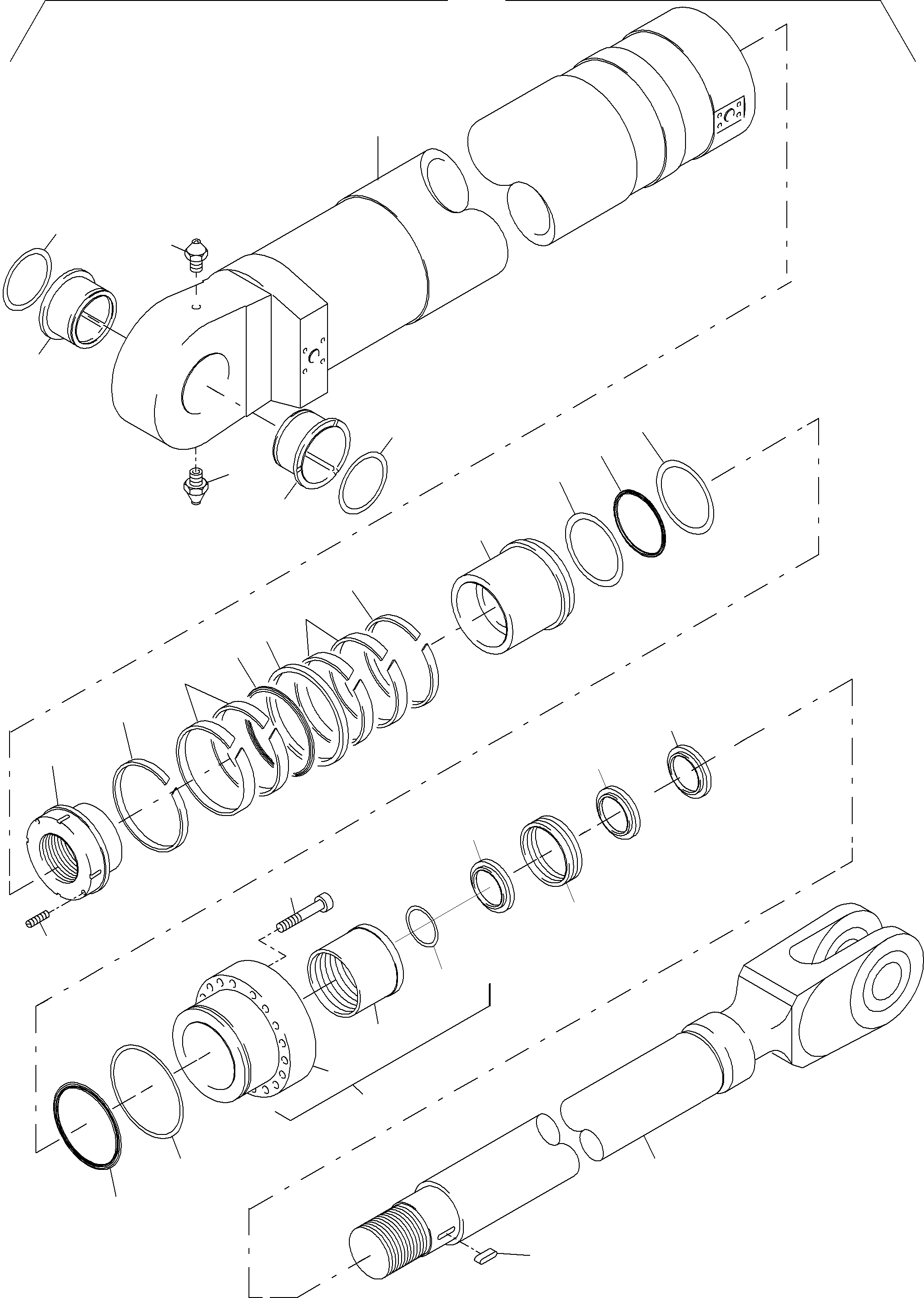

Hydraulic Cylinder assy. (Standard) |
1 |
InternBDB: 280x190x2045 (3795) | InternKon: 945 479 40 / 1
|
|
|
|
01 |
945 480 40
|
Hydraulic Cylinder assy. (Cold weather design) |
1 |
InternBDB: 280x190x2045 (3795) | InternKon: 945 479 40 / 1
|
|
|
|
02 |
|
Cylinder |
1 |
InternBDB: 931 504 40 | InternKon: 945 480 40 / 1
|
|
|
|
03 |
501 025 98
|
Thread pin |
1 |
InternBDB: M12x35 / DIN 915 10.9 | InternKon: 945 480 40 / 26
|
|
|
|
04 |
290 798 40
|
Groove nut |
1 |
InternKon: 945 480 40 / 6
|
|
|
|
05 |
909 394 40
|
Piston |
1 |
InternKon: 945 480 40 / 5
|
|
|
|
08 |
304 103 40
|
Piston slyding strip |
2 |
InternKon: 945 480 40 / 11
|
|
|
|
09 |
324 478 40
|
Piston wear-ring |
4 |
InternBDB: GP 75-02800-C900 | InternKon: 945 480 40 / 10
|
|
|
|
10 |
256 911 40
|
Seal |
1 |
InternBDB: TURCON-GLYD-RING PG-44- 02800-T46 | InternKon: 945 480 40 / 8
|
|
|
|
11 |
502 112 98
|
O-ring |
1 |
InternBDB: 253,37x7B NB70 / WN 011 745 99 | InternKon: 945 480 40 / 9
|
|
|
|
12 |
270 355 40
|
Back-up ring |
2 |
InternKon: 945 480 40 / 21
|
|
|
|
13 |
501 900 98
|
O-ring |
1 |
InternBDB: 183,52x5,33 | InternKon: 945 480 40 / 20
|
|
|
|
14 |
517 633 98
|
O-ring |
1 |
InternBDB: 266,07x7,0 NB 70 | InternKon: 945 480 40 / 18
|
|
|
|
15 |
907 780 40
|
Support ring |
1 |
InternBDB: 280 x 6,1 x 1,25 | InternKon: 945 480 40 / 19
|
|
|
|
16 |
926 865 40
|
Sealing flange consist. of fig-nos: 17-18 and 20 (finish work after bush is installed) |
1 |
InternKon: 945 480 40 / 3
|
|
|
|
17 |
|
Bush |
1 |
InternBDB: 926 864 40 | InternKon: 926 865 40 / 1
|
|
|
|
18 |
926 863 40
|
Bush |
1 |
InternKon: 926 865 40 / 2
|
|
|
|
19 |
514 626 98
|
Bolt |
18 |
InternBDB: M30X200 10.9 DIN 00912 | InternKon: 945 480 40 / 24
|
|
|
|
19 |
514 625 98
|
Bolt (Cold weather design) |
18 |
InternBDB: M30X200 10.9 KALTZ DIN 00912 | InternKon: 945 480 40 / 24
|
|
|
|
20 |
342 603 99
|
Retaining ring |
1 |
InternBDB: 215 x 5 / DIN 472 | InternKon: 926 865 40 / 3
|
|
|
|
21 |
907 719 40
|
Buffer Ring |
1 |
InternBDB: 190x215,0x9,6 U641 80NP HBY NOK / 7075119810 | InternKon: 945 480 40 / 12
|
|
|
|
22 |
907 721 40
|
Rod Seal (Standard) |
1 |
InternBDB: 190x215x20,0 A505 19YF IUY NOK / 7075119030 | InternKon: 945 480 40 / 13
|
|
|
|
22 |
940 072 40
|
Rod Seal (Cold weather design) |
1 |
InternBDB: 190X215,0X20,0 A903 19YF IUY / 7075119730 | InternKon: 945 480 40 / 13
|
|
|
|
23 |
907 723 40
|
Scarper |
1 |
InternBDB: 190X205 X 9x12 UR-4 SPCC DKBI / 5686322620 | InternKon: 945 480 40 / 14
|
|
|
|
24 |
517 595 98
|
Snap ring |
1 |
InternBDB: A205 FEDST WN 01071899 | InternKon: 945 480 40 / 15
|
|
|
|
25 |
354 389 99
|
Feather key |
1 |
InternBDB: A 20X12X 70 C45-** DIN 06885 | InternKon: 945 480 40 / 23
|
|
|
|
26 |
934 661 40
|
Piston rod |
1 |
InternKon: 945 480 40 / 2
|
|
|
|
28 |
910 164 40
|
Flanged bush |
2 |
InternBDB: 170/150X120 | InternKon: 945 480 40 / 7
|
|
|
|
29 |
004 860 98
|
Nipple |
2 |
InternBDB: AR1/4 5.8 A2E WN 01120799 | InternKon: 945 480 40 / 25
|
|
|
|
30 |
907 020 40
|
Seal ring |
2 |
InternBDB: 150/4x4 | InternKon: 945 480 40 / 22
|
|
|
|
|$$31 |
780 446 73
|
Sealing kit for piston consist. of fig-nos: 08-13 |
1 |
InternBDB: EST-D
|
|
|
|
|$$32 |
794 539 73
|
Sealing kit for sealing flange consist. of fig-nos: 14,15, 21-23 |
1 |
InternBDB: EST-D
|
|
|
|
|$$33 |
795 456 73
|
Sealing kit for sealing flange (Cold weather design) consist. of fig-nos: 14,15, 21-23 |
1 |
InternBDB: EST-D
|
|
