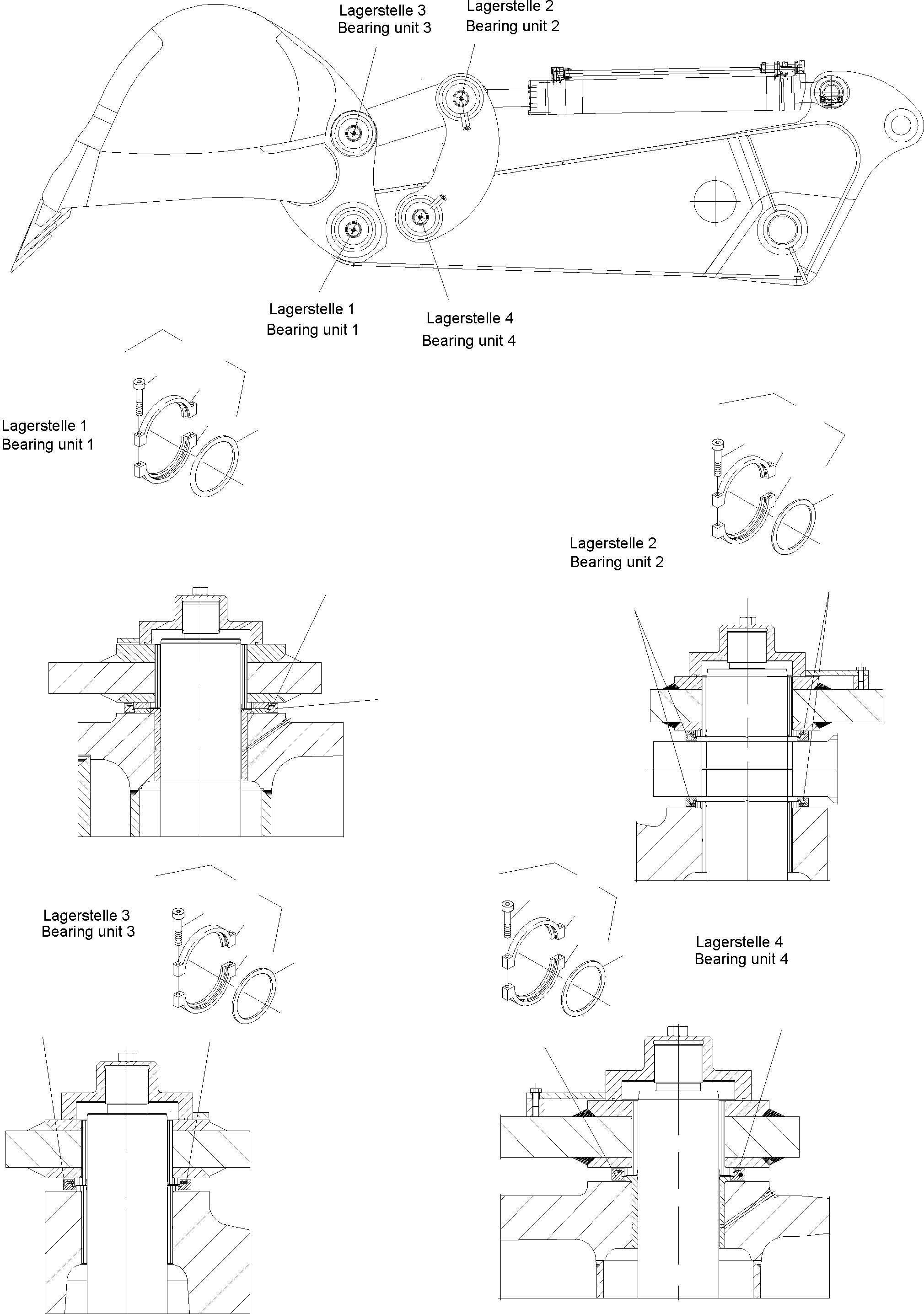

Komatsu parts book diagram for PC3000-6 S/N 46174: PIN SEALING STEERING AND ROD

01 01 02 02 03 04 05 05 06 06 07 08 10 10 11 11 12 13 14 14 15 15 16 17 20 21 22 22

	#	Part Number	Partname	Quantity	Options	Reference
	01	651 353 40	Seal fixing fig-nos.03, 04, 20	2	InternKon: 918 290 40 / 1
	02	651 351 40	Seal ring	2	InternBDB: GDZH-840083-T46 \| InternKon: 918 290 40 / 2
	03		Upper ring half	2	InternBDB: 651 354 40 \| InternKon: 651 353 40 / 1
	04		Lower ring half	2	InternBDB: 651 355 40 \| InternKon: 651 353 40 / 2
	05	561 541 40	Seal fixing fig-nos. 07, 08, 21	4	InternKon: 918 290 40 / 3
	06	561 539 40	Seal ring	4	InternKon: 918 290 40 / 4
	07		Upper ring half	2	InternBDB: 561 542 40 \| InternKon: 561 541 40 / 1
	08		Lower ring half	2	InternBDB: 561 543 40 \| InternKon: 561 541 40 / 2
	10	900 758 40	Seal fixing fig-nos. 12, 13, 22	2	InternKon: 918 290 40 / 7
	11	652 174 40	Seal ring	2	InternBDB: GDZH-840089-T49 \| InternKon: 918 290 40 / 8
	12		Upper ring half	2	InternBDB: 900 759 40 \| InternKon: 900 758 40 / 1
	13		Lower ring half	2	InternBDB: 900 760 40 \| InternKon: 900 758 40 / 2
	14	918 283 40	Seal fixing fig-nos. 16, 17, 22	2	InternKon: 918 290 40 / 5
	15	247 091 40	Seal ring	2	InternBDB: RXZH-090046-T46 \| InternKon: 918 290 40 / 6
	16		Upper ring half	2	InternBDB: 918 284 40 \| InternKon: 918 283 40 / 1
	17		Lower ring half	2	InternBDB: 918 286 40 \| InternKon: 918 283 40 / 2
	20	319 293 99	Bolt	2	InternBDB: M16x100 / 912
	21	319 292 99	Bolt	2	InternBDB: M16x90 / 912 10.9
	22	509 170 98	Bolt	4	InternBDB: M16x90 / 912 8.8

Komatsu PC3000-6 S/N 46174 parts catalog PDF

PIN SEALING STEERING AND ROD (485-4650) in PC3000-6 S/N 46174. Diagram image and parts list.
