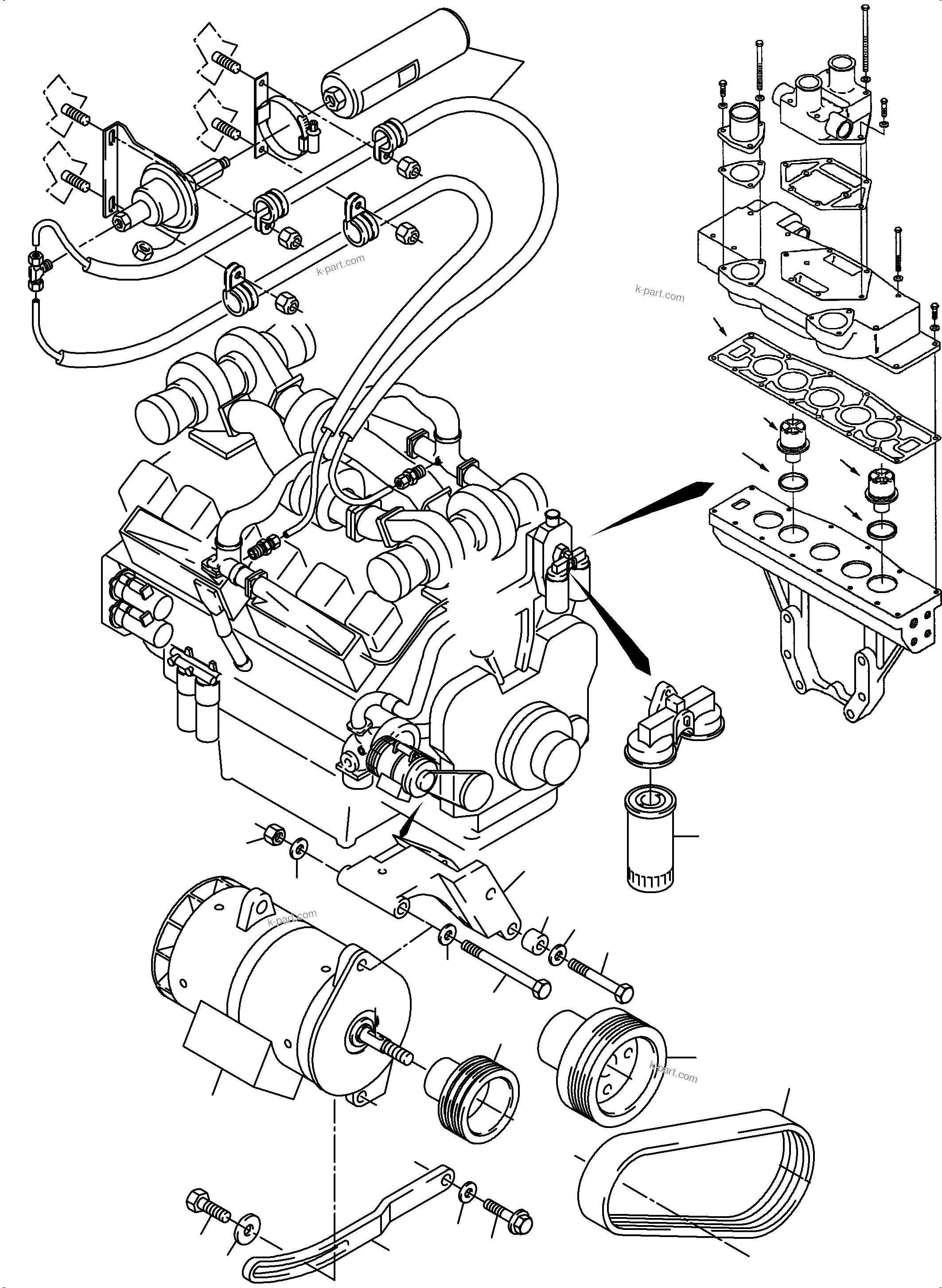

Diagram image 1 of 3

PC5500-6 S/N 15056

? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15056

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6 S/N 15056

? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?	904 751 40	Diesel engine assy.	1	InternBDB: Cummins KTTA 38 - C 1500 nach TL AT-Nr. 710 251 73
?	695 835 73	Water filter	2	InternBDB: WF 2076, 331 8319
?	768 441 73	By-pass oil filter	2	InternBDB: 388 9311
?	769 994 73	Fuel filter	2	InternBDB: FS 1006, 308 9916
?	692 325	Starter	1	InternBDB: 302 1038
?	518 084 40	Generator 24V 100A	1	InternBDB: Cummins 307 2483
?	763 650 73	Water pump	1	InternBDB: 362 70 83
?	768 090 73	Thermostat	4	InternBDB: 362 92 05
?	768 089 73	Thermostat	1	InternBDB: 305 56 63
?	768 094 73	Seal ring	5	InternBDB: 362 79 61
?	694 543	Gasket, valve cover	12	InternBDB: 362 91 40
?	768 095 73	Starter	1	InternBDB: 362 89 97
?	694 522	Lock washer	6	InternBDB: S-603
?	694 523	Screw	6	InternBDB: 158 250
?	693 464	O-ring	1	InternBDB: 206 457
?	768 096 73	Srew	4	InternBDB: 7/16-14 x 1 1/4 103 009
?	768 097 73	Lock washer	4	InternBDB: S 610
?	694 532	O-ring	1	InternBDB: 300 75 12
?	693 318	Seal	1	InternBDB: 206 193
?	768 098 73	Clamp	2	InternBDB: 362 69 44
?		Colt start system	1	InternBDB: CS 6045	090-2820
?	768 099 73	Seal	1	InternBDB: 305 29 06
?	694 530	Bolt	1	InternBDB: 7/16-14 UNC x 1 1/4 206 326
?	696 802 73	Washer	3	InternBDB: 203 760
?	768 100 73	Link, adjusting	1	InternBDB: 362 68 01
?	768 101 73	Washer	3	InternBDB: 306 73 44
?	768 102 73	Bolt	1	InternBDB: 1/2-13 UNC x 1 1/2 S 113
?	793 271 73	Pulley 5 ribbs generator	1	InternBDB: 317 99 35
?	793 272 73	Pulley 5 ribbs engine	1	InternBDB: 304 3570
?	793 537 73	Belt 5 ribbs for Gemerator	1	InternBDB: Cummins 362 6788
?	793 273 73	Retainer	1	InternBDB: 362 79 99
?	764 533 73	Nut	1	InternBDB: 070 897
?	768 105 73	Bolt	1	InternBDB: 1/2-20 UNF x 6 1/2 158 829
?	768 106 73	Sleeve	2	InternBDB: 207 509
?	696 803 73	Bolt	2	InternBDB: 7/16-14 UNC x 5 1/2
?	694 550	Lock plate	2	InternBDB: 300 42 72
?	694 548	Union	2	InternBDB: 301 06 35
?	694 549	O-ring	2	InternBDB: 145 507
?	768 108 73	Damper	1	InternBDB: AR 12 111
?	768 109 73	Fuel pump	1	InternBDB: 303 42 45
?	768 110 73	Shut off solenoid	1	InternBDB: 305 46 07
?	694 526	Seal	1	InternBDB: 129 839
?	692 839	O-ring	1	InternBDB: 129 888
?	768 111 73	Cover	1	InternBDB: 362 91 12
?	768 112 73	Dipstick	1	InternBDB: 317 88 57
?	918 814 40	Oilmanagement System	1	InternBDB: Eliminator-Filter, Reserve-System, Centinel
?	944 845 40	Oilmanagement System, without Centinel	1	InternBDB: Eliminator-Filter, Reserve-System
?	792 330 73	Sludge	10	InternBDB: Cummins 3393592
?	793 583 73	Service kit Centrifuge	1	InternBDB: Cummins 3633026
