PC5500-6 S/N 15056

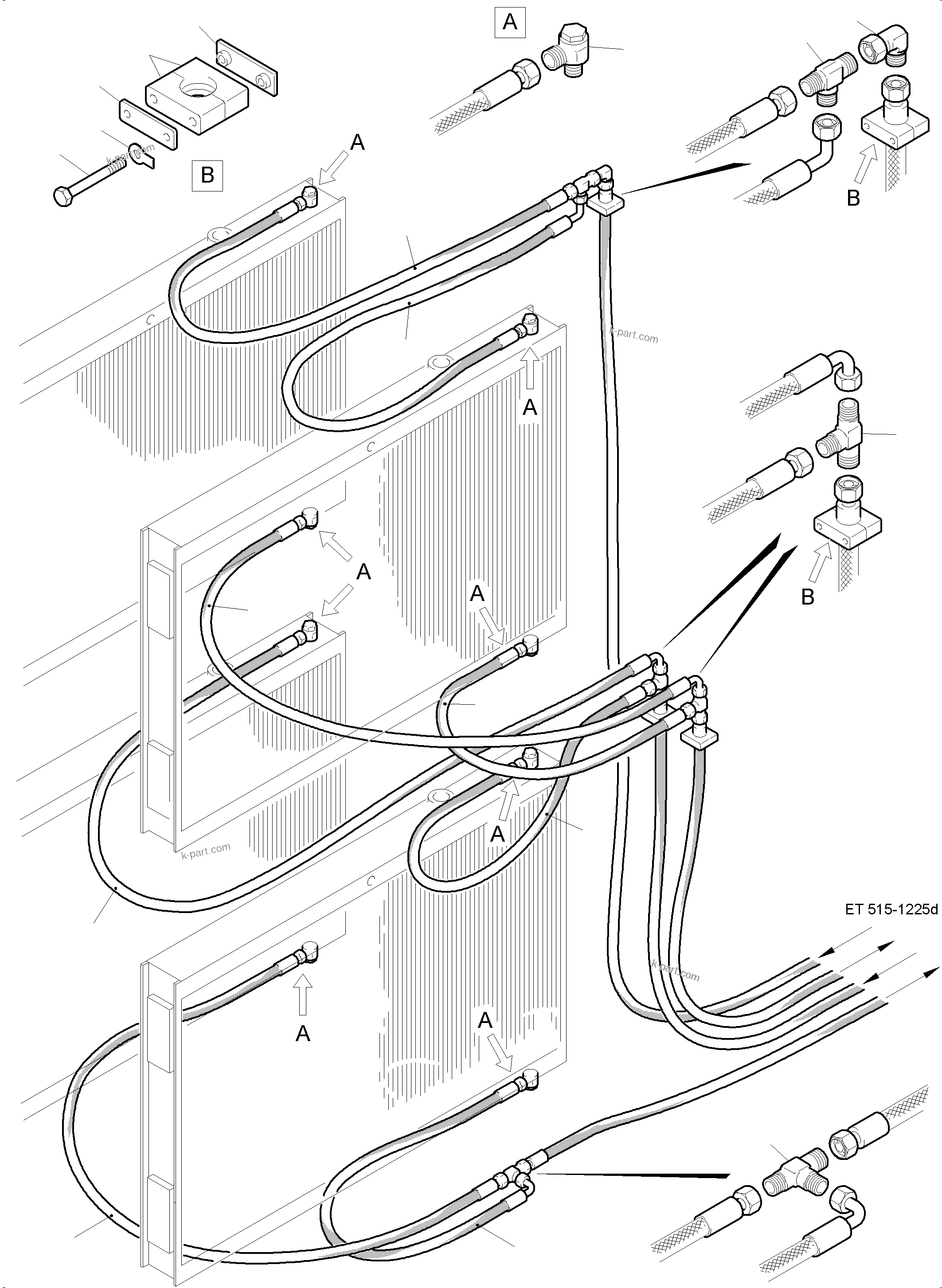

Komatsu parts book diagram for PC5500-6 S/N 15056: COOLING - DISTRIBUTOR GEAR (COOLER)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	513 484 98	Hose assy. DN 20x3450	2	InternBDB: DOL 22 /DOL 22 \| InternKon: 574 550 40 / 10
	?	515 585 40	Hose assy. DN 20x3150	2	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 574 550 40 / 9
	?	512 288 98	Hose assy. DN 20x3500	2	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 574 550 40 / 12
	?	515 482 40	Hose assy. DN 20x3400	2	InternBDB: DOL 22 /DOL 22 \| InternKon: 574 550 40 / 14
	?	906 925 40	Union	8	InternBDB: 22-LM /OMD \| InternKon: 574 550 40 / 21
	?	906 924 40	Union	4	InternBDB: TR 28/22/22 PL /OMD \| InternKon: 574 550 40 / 22
	?	516 161 98	Socket	2	InternBDB: L 28 / 3942 \| InternKon: 574 550 40 / 51
	?	502 682 98	Half clamp	4	InternBDB: S-2-G-28 / 3015 \| InternKon: 914 455 40 / 17
	?	534 001 99	Cover plate	2	InternBDB: S-DP-A-2 / W1 / 3015 \| InternKon: 914 455 40 / 18
	?	504 585 98	Locking plate	2	InternBDB: SI 2 \| InternKon: 914 455 40 / 22
	?	308 579 99	Bolt	4	InternBDB: M10x60 8.8 / 931 \| InternKon: 914 455 40 / 20
	?	534 002 99	Weld on plate	2	InternBDB: S-AP-A-2 W1 / 3105 \| InternKon: 914 455 40 / 19

Komatsu PC5500-6 S/N 15056 parts catalog PDF

COOLING - DISTRIBUTOR GEAR (COOLER) (515-1227b) in PC5500-6 S/N 15056. Diagram image and parts list.
