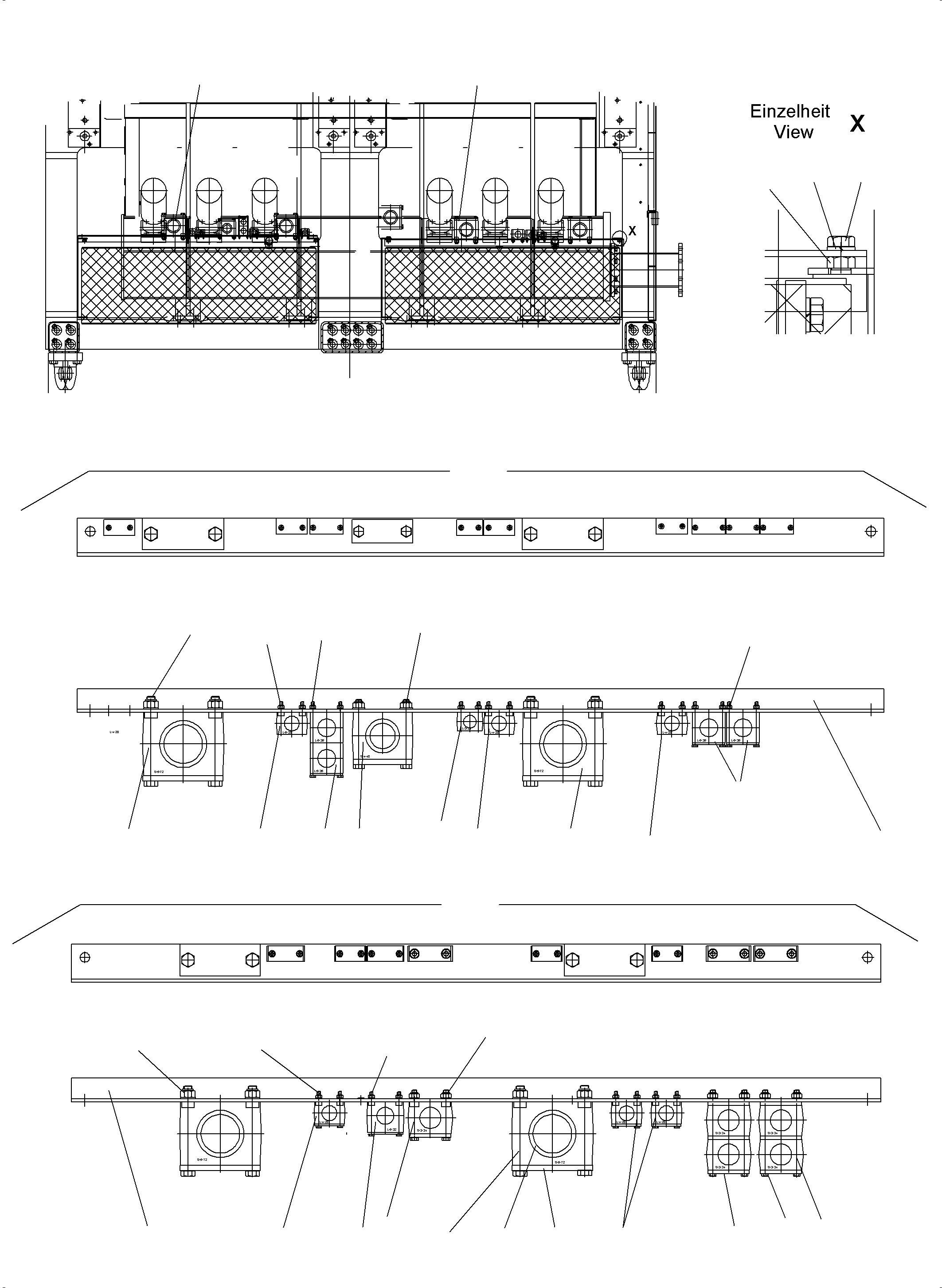

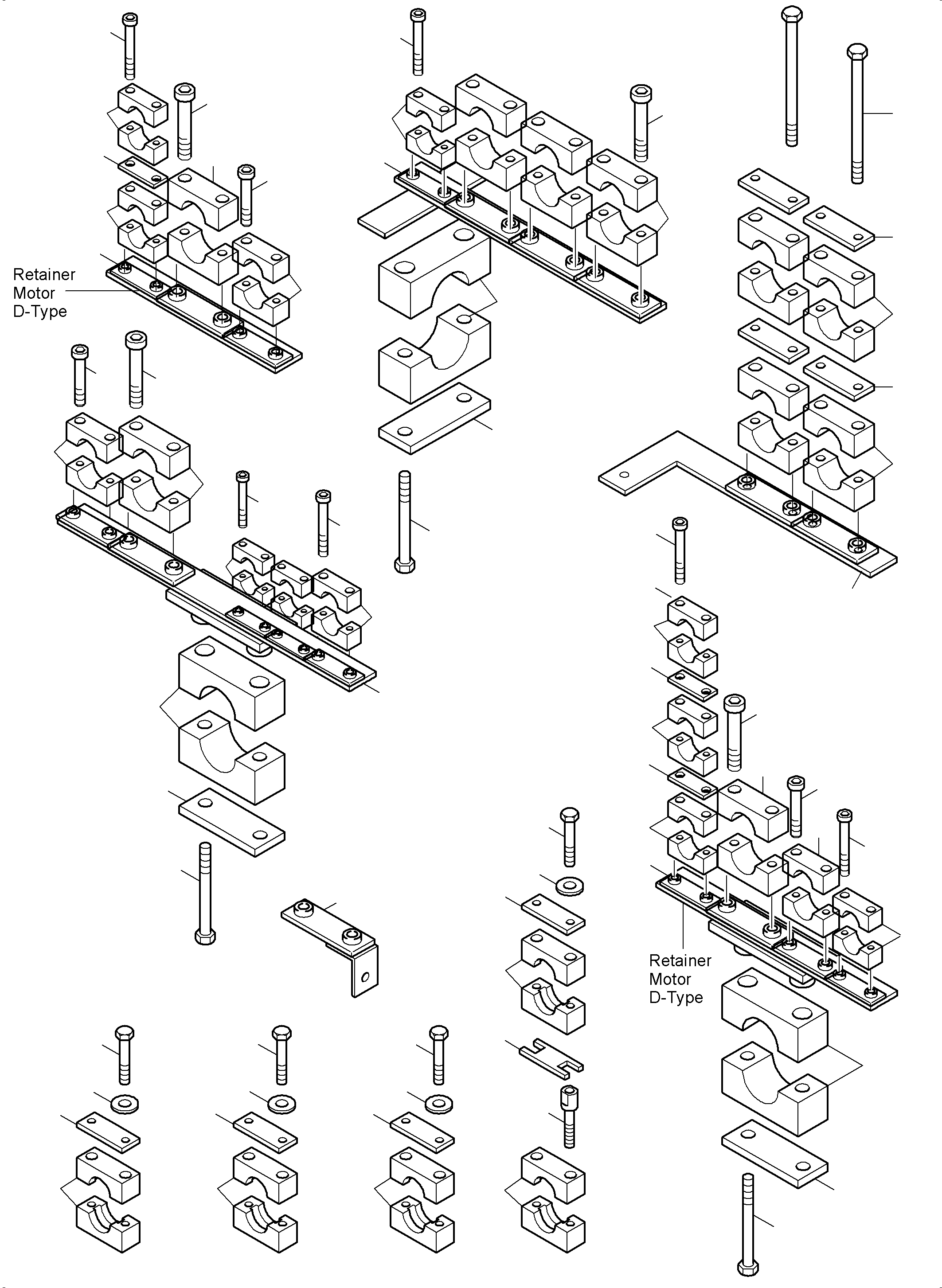

Diagram image 1 of 3

PC5500-6 S/N 15056

01 02 03 03 03 04 04 05 06 06 07 07 08 08 09 10 11 12 13 14 15 16 17 18 19 20 21 26 27 28 29 30 31 31 32 33 33 34 35 36 37 38 39 40 41 42 43 44 45 46 48 49 50 50 51 52 52 53 53 54 55 56

PC5500-6 S/N 15056

100 101 101 101 102 102 103 104 105 106 107 108 109 110 111 120 121 121 122 122 123 130 131 132 133 134 135 136 137 138 138 139 139 140 140 141 141 142 143 145 147 149 51 60 61 61 62 63 64 65 66 67 70 71 72 73 74 75 76 77 80 81 82 83 84 85 86 87 88 89 90 91

PC5500-6 S/N 15056

150 151 151 151 151 151 152 152 152 152 153 153 153 154 154 154 155 156 156 157 157 157 157 157 157 157 157 157 160 165 167 168

#	Part Number	Partname	Quantity	Options
01	922 434 40	Sheet metall	1	InternKon: 922 430 40 / 1
02	500 980 98	Clamp-set	1	InternBDB: L-3-R-25 PP / 3015 \| InternKon: 922 430 40 / 2
03	509 059 98	Clamp-set	3	InternBDB: L-4-G-28 PA / 3015 \| InternKon: 922 430 40 / 3
04	502 201 98	Clamp-set	4	InternBDB: L-5-R-35 PP / 3015 \| InternKon: 922 430 40 / 4
05	506 371 98	Clamp-set	1	InternBDB: S-4-E PA / 3015 \| InternKon: 922 430 40 / 5
06	509 064 98	Clamp-set	2	InternBDB: S-5-E PA / 3015 \| InternKon: 922 430 40 / 6
07	504 854 98	Grommet	2	InternBDB: S-5-72 Gummi / 3015 \| InternKon: 922 430 40 / 7
08	500 398 98	Cover plate	2	InternBDB: S-DP-A-5 W1 / 3015 \| InternKon: 922 430 40 / 8
09	512 053 98	Grommet	1	InternBDB: S-4-48 Gummi / 3015 \| InternKon: 922 430 40 / 9
10	534 008 98	Cover plate	1	InternBDB: S-DP-A-4 W1 / 3015 \| InternKon: 922 430 40 / 10
11	308 541 99	Bolt	6	InternBDB: M6x65 / 912 / 8.8 \| InternKon: 922 430 40 / 11
12	515 331 98	Washer	14	InternBDB: 6,4 / 125 \| InternKon: 922 430 40 / 12
13	507 025 98	Nut	14	InternBDB: M 6 /985 \| InternKon: 922 430 40 / 13
14	502 879 98	Bolt	2	InternBDB: M12x125 /931 / 8.8 \| InternKon: 922 430 40 / 14
15	512 545 98	Bolt	2	InternBDB: 13 / 140 HV / 125 \| InternKon: 922 430 40 / 15
16	334 600 99	Nut	2	InternBDB: M12 / 8.0 / 985 \| InternKon: 922 430 40 / 16
17	308 643 99	Bolt	4	InternBDB: M16x160 / 8.8 / 931 \| InternKon: 922 430 40 / 17
18	340 510 99	Washer	4	InternBDB: 17 / 140HV / 125 \| InternKon: 922 430 40 / 18
19	334 601 99	Nut	4	InternBDB: M16 / 8 / 985 \| InternKon: 922 430 40 / 19
20	308 942 99	Bolt	2	InternBDB: M6x140 / 8.8 / 931 \| InternKon: 922 430 40 / 20
21	511 858 98	Cover plate	3	InternBDB: L-5 \| InternKon: 922 430 40 / 21
26	308 544 99	Bolt	4	InternBDB: M6x80 / DIN 931 \| InternKon: 922 430 40 / 26
27	511 857 98	Cover plate	3	InternBDB: L-4 / DIN 3015 \| InternKon: 922 430 40 / 27
28	511 856 98	Cover plate	1	InternBDB: L-3 / DIN 3015 \| InternKon: 922 430 40 / 28
29	308 540 99	Bolt	2	InternBDB: M6x60 / DIN 931 \| InternKon: 922 430 40 / 29
30	922 433 40	Sheet metall	1	InternKon: 922 428 40 / 1
31	509 059 98	Clamp-set	3	InternBDB: L-4-G-28 PA / 3015 \| InternKon: 922 428 40 / 2
32	509 060 98	Clamp-set	1	InternBDB: L-4-G-32 PA / 3015 \| InternKon: 922 428 40 / 3
33	502 656 98	Clamp-set	5	InternBDB: L-4-G-34 PP / 3015 \| InternKon: 922 428 40 / 4
34	509 064 98	Clamp-set	2	InternBDB: S-5-E PA / 3015 \| InternKon: 922 428 40 / 5
35	504 854 98	Grommet	2	InternBDB: S-5-72 Gummi / 3015 \| InternKon: 922 428 40 / 6
36	500 398 98	Cover plate	2	InternBDB: S-DP-A-5 W1 / 3015 \| InternKon: 922 428 40 / 7
37	308 643 99	Bolt	4	InternBDB: M16x160 / 8.8 / 931 \| InternKon: 922 428 40 / 8
38	340 510 99	Washer	4	InternBDB: 17 / 140HV / 125 \| InternKon: 922 428 40 / 9
39	334 601 99	Nut	4	InternBDB: M16 / 8 / 985 \| InternKon: 922 428 40 / 10
40	308 541 99	Bolt	6	InternBDB: M6x65 / 912 / 8.8 \| InternKon: 922 428 40 / 11
41	515 331 98	Washer	8	InternBDB: 6,4 / 125 \| InternKon: 922 428 40 / 12
42	507 025 98	Nut	8	InternBDB: M 6 /985 \| InternKon: 922 428 40 / 13
43	308 544 99	Bolt	2	InternBDB: M6x80 / 8.8 / 912 \| InternKon: 922 428 40 / 14
44	308 584 99	Bolt	2	InternBDB: M10x90 / 8.8 / 912 \| InternKon: 922 428 40 / 15
45	340 465 99	Washer	6	InternBDB: 10,5 / 125 \| InternKon: 922 428 40 / 16
46	507 037 98	Nut	6	InternBDB: M10 / 8 / 985 \| InternKon: 922 428 40 / 17
48	534 004 99	Cover plate	5	InternBDB: S-DP-A-3 \| InternKon: 922 428 40 / 19
49	308 591 99	Bolt	4	InternBDB: M10x160 / DIN 931 \| InternKon: 922 428 40 / 20
50	511 857 98	Cover plate	3	InternBDB: L-4 / DIN 3015 \| InternKon: 922 428 40 / 21
51	511 858 98	Cover plate	1	InternBDB: L-5 / DIN 3015 \| InternKon: 922 428 40 / 22
52	922 428 40	Retainer assy consist of fig.nos. 01-21	1	InternBDB: PC 5500-6 \| InternKon: 922 432 40 / 1
53	922 430 40	Retainer assy consist of fig.nos. 25-41	1	InternBDB: PC 5500-6 \| InternKon: 922 432 40 / 2
54	332 336 99	Nut	4	InternBDB: M16/ 8 /934 \| InternKon: 922 432 40 / 3
55	343 116 99	Lock washer	4	InternBDB: 16 / 127 \| InternKon: 922 432 40 / 4
56	307 819 99	Bolt	4	InternBDB: M16x20 / 8.8 / 931 \| InternKon: 922 432 40 / 5
60	936 867 40	Retainer	1	InternKon: 936 847 40 / 1
61	509 058 98	Clamp-set	2	InternBDB: L-3-G-23 /DIN 03015 \| InternKon: 936 847 40 / 2
62	511 856 98	Cover plate	1	InternBDB: L-3 /DIN 03015 \| InternKon: 936 847 40 / 3
63	341 419 99	Screw	2	InternBDB: M 6X 70 /DIN 00912 \| InternKon: 936 847 40 / 4
64	504 093 98	Clamp-set	1	InternBDB: L-6-G-48,3 /DIN 03015 \| InternKon: 936 847 40 / 5
65	341 419 99	Screw	2	InternBDB: M 6 X 70 /DIN 00912 \| InternKon: 936 847 40 / 6
66	502 201 98	Clamp-set	1	InternBDB: L-5-R-35 /DIN 03015 \| InternKon: 936 847 40 / 7
67	319 418 99	Bolt	2	InternBDB: M 6 X 60 /DIN 00912 \| InternKon: 936 847 40 / 8
70	936 865 40	Retainer	1	InternKon: 936 844 40 / 1
71	504 005 98	Clamp-set	1	InternBDB: S-4-G-38 /DIN 03015 \| InternKon: 936 844 40 / 2
72	502 965 98	Cover plate	1	InternBDB: S-DP-S-4 /DIN 03015 \| InternKon: 936 844 40 / 3
73	308 612 99	Bolt	2	InternBDB: M12X 100 /DIN 00931 \| InternKon: 936 844 40 / 4
74	515 669 98	Clamp-set	1	InternBDB: L-4-G-26,9 /DIN 03015 \| InternKon: 936 844 40 / 5
75	319 417 99	Screw	2	InternBDB: M 6 X 35 /DIN 00912 \| InternKon: 936 844 40 / 6
76	502 201 98	Clamp-set	3	InternBDB: L-5-R-35 /DIN 03015 \| InternKon: 936 844 40 / 7
77	319 136 99	Screw	6	InternBDB: M 6 X 50 /DIN 00912 \| InternKon: 936 844 40 / 8
80	936 864 40	Retainer	1	InternKon: 936 842 40 / 1
81	502 641 98	Clamp-set	1	InternBDB: S-4-G-67 /DIN 03015 \| InternKon: 936 842 40 / 2
82	534 008 99	Cover plate	1	InternBDB: S-DP-A-4 /DIN 03015 \| InternKon: 936 842 40 / 3
83	308 612 99	Bolt	2	InternBDB: M12X 100 /DIN 00931 \| InternKon: 936 842 40 / 4
84	502 201 98	Clamp-set	1	InternBDB: L-5-R-35 /DIN 03015 \| InternKon: 936 842 40 / 5
85	319 136 99	Screw	2	InternBDB: M 6 X 50 /DIN 00912 \| InternKon: 936 842 40 / 6
86	504 093 98	Clamp-set	1	InternBDB: L-6-G-48,3 /DIN 03015 \| InternKon: 936 842 40 / 7
87	319 418 99	Bolt	2	InternBDB: M 6 X 60 /DIN 00912 \| InternKon: 936 842 40 / 8
88	509 058 98	Clamp-set	2	InternBDB: L-3-G-23 /DIN 03015 \| InternKon: 936 842 40 / 9
89	319 133 99	Screw	4	InternBDB: M 6X 30 /DIN 00912 \| InternKon: 936 842 40 / 10
90	515 669 98	Clamp-set	1	InternBDB: L-4-G-26,9 /DIN 03015 \| InternKon: 936 842 40 / 11
91	319 417 99	Screw	2	InternBDB: M 6 X 35 /DIN 00912 \| InternKon: 936 842 40 / 12
100	936 866 40	Retainer	1	InternKon: 936 846 40 / 1
101	502 631 98	Clamp-set	4	InternBDB: L-2-G-16 /DIN 03015 \| InternKon: 936 846 40 / 2
102	511 855 98	Cover plate	2	InternBDB: L-2 /DIN 03015 \| InternKon: 936 846 40 / 3
103	321 425 99	Screw	2	InternBDB: M 6 X100 /DIN 00912 \| InternKon: 936 846 40 / 4
104	319 132 99	Screw	2	InternBDB: M 6 X 25 /DIN 00912 \| InternKon: 936 846 40 / 5
105	509 058 98	Clamp-set	1	InternBDB: L-3-G-23 /DIN 03015 \| InternKon: 936 846 40 / 6
106	319 133 99	Screw	2	InternBDB: M 6 X 30 /DIN 00912 \| InternKon: 936 846 40 / 7
107	505 058 98	Clamp-set	1	InternBDB: S-4-G-70 /DIN 03015 \| InternKon: 936 846 40 / 8
108	534 008 99	Cover plate	1	InternBDB: S-DP-A-4 /DIN 03015 \| InternKon: 936 846 40 / 9
109	308 612 99	Bolt	2	InternBDB: M12X 100 /DIN 00931 \| InternKon: 936 846 40 / 10
110	515 669 98	Clamp-set	1	InternBDB: L-4-G-26,9 /DIN 03015 \| InternKon: 936 846 40 / 11
111	319 417 99	Screw	2	InternBDB: M 6 X 35 /DIN 00912 \| InternKon: 936 846 40 / 12
120	936 868 40	Retainer	1	InternKon: 936 850 40 / 1
121	502 201 98	Clamp-set	4	InternBDB: L-5-R-35 /DIN 03015 \| InternKon: 936 850 40 / 2
122	511 858 98	Cover plate	2	InternBDB: L-5 /DIN 03015 \| InternKon: 936 850 40 / 3
123	320 025 99	Screw	4	InternBDB: M 6X110 /DIN 00912 \| InternKon: 936 850 40 / 4
130	511 718 98	Clamp-set	7	InternBDB: S-6-E /DIN 03015 \| InternKon: 914 978 40 / 1
131	511 196 98	Plate	7	InternBDB: S-DP-A-6 /DIN 03015 \| InternKon: 914 978 40 / 2
132	308 679 99	Bolt	14	InternBDB: M20X 190 /DIN 00931 \| InternKon: 914 978 40 / 3
133	343 010 99	Lock washer	14	InternBDB: 21 /DIN 00093 \| InternKon: 914 978 40 / 4
134	509 064 98	Clamp-set	9	InternBDB: S-5-E /DIN 03015 \| InternKon: 914 978 40 / 5
135	500 398 98	Cover plate	9	InternBDB: S-DP-A-5 /DIN 03015 \| InternKon: 914 978 40 / 6
136	308 641 99	Bolt	18	InternBDB: M16X 130 /DIN 00931 \| InternKon: 914 978 40 / 7
137	343 008 99	Washer	18	InternBDB: 17 /DIN 00093 \| InternKon: 914 978 40 / 8
138	506 371 98	Clamp-set	21	InternBDB: S-4-E /DIN 03015 \| InternKon: 914 978 40 / 9
139	534 008 99	Cover plate	16	InternBDB: S-DP-A-4 /DIN 03015 \| InternKon: 914 978 40 / 10
140	308 612 99	Bolt	32	InternBDB: M12X 100 /DIN 00931 \| InternKon: 914 978 40 / 11
141	343 006 99	Washer	28	InternBDB: 13 / DIN 00093 \| InternKon: 914 978 40 / 12
142	504 787 98	Locking plate	18	InternBDB: S-4 /DIN 03015 \| InternKon: 914 978 40 / 13
143	504 786 98	Screw	24	InternBDB: S-4 /DIN 03015 \| InternKon: 914 978 40 / 14
145	504 446 98	Clamp-set	1	InternBDB: S-4-G-65 /DIN 03015 \| InternKon: 914 978 40 / 16
147	502 658 98	Clamp-set	6	InternBDB: S-4-G-56 /DIN 03015 \| InternKon: 914 978 40 / 18
149	914 979 40	Retainer	1	InternKon: 914 978 40 / 20
150	936 890 40	Retainer	1	InternKon: 936 889 40 / 1
151	504 987 98	Clamp-set	1	InternBDB: L-2-G-18 /DIN 03015 \| InternKon: 936 889 40 / 3
152	319 132 99	Screw	2	InternBDB: M6X25 /DIN 00912 \| InternKon: 936 889 40 / 4
153	509 058 98	Clamp-set	1	InternBDB: L-3-G-23 /DIN 03015 \| InternKon: 936 889 40 / 5
154	319 133 99	Screw	2	InternBDB: M6X30 /DIN 00912 \| InternKon: 936 889 40 / 6
155	515 669 98	Clamp-set	1	InternBDB: L-4-G-26,9 /DIN 03015 \| InternKon: 936 889 40 / 7
156	319 417 99	Screw	2	InternBDB: M6X35 /DIN 00912 \| InternKon: 936 889 40 / 8
157	340 405 99	Washer	6	InternBDB: 6,4 /DIN 00433 \| InternKon: 936 889 40 / 9
160	936 894 40	Retainer	1	InternKon: 936 893 40 / 1
165	509 059 98	Clamp-set	1	InternBDB: L-4-G-28 /DIN 03015 \| InternKon: 936 893 40 / 7
167	517 958 98	Resilient sleeve	1	InternBDB: 17 /30X 40 /WN 34194840 \| InternKon: 936 893 40 / 9
168	308 634 99	Bolt	1	InternBDB: M16X 70 /DIN 00931 \| InternKon: 936 893 40 / 10

Komatsu PC5500-6 S/N 15056 parts catalog PDF

HOSE CLAMP ASSY PDG (515-1232c) in PC5500-6 S/N 15056. Diagram image and parts list.
