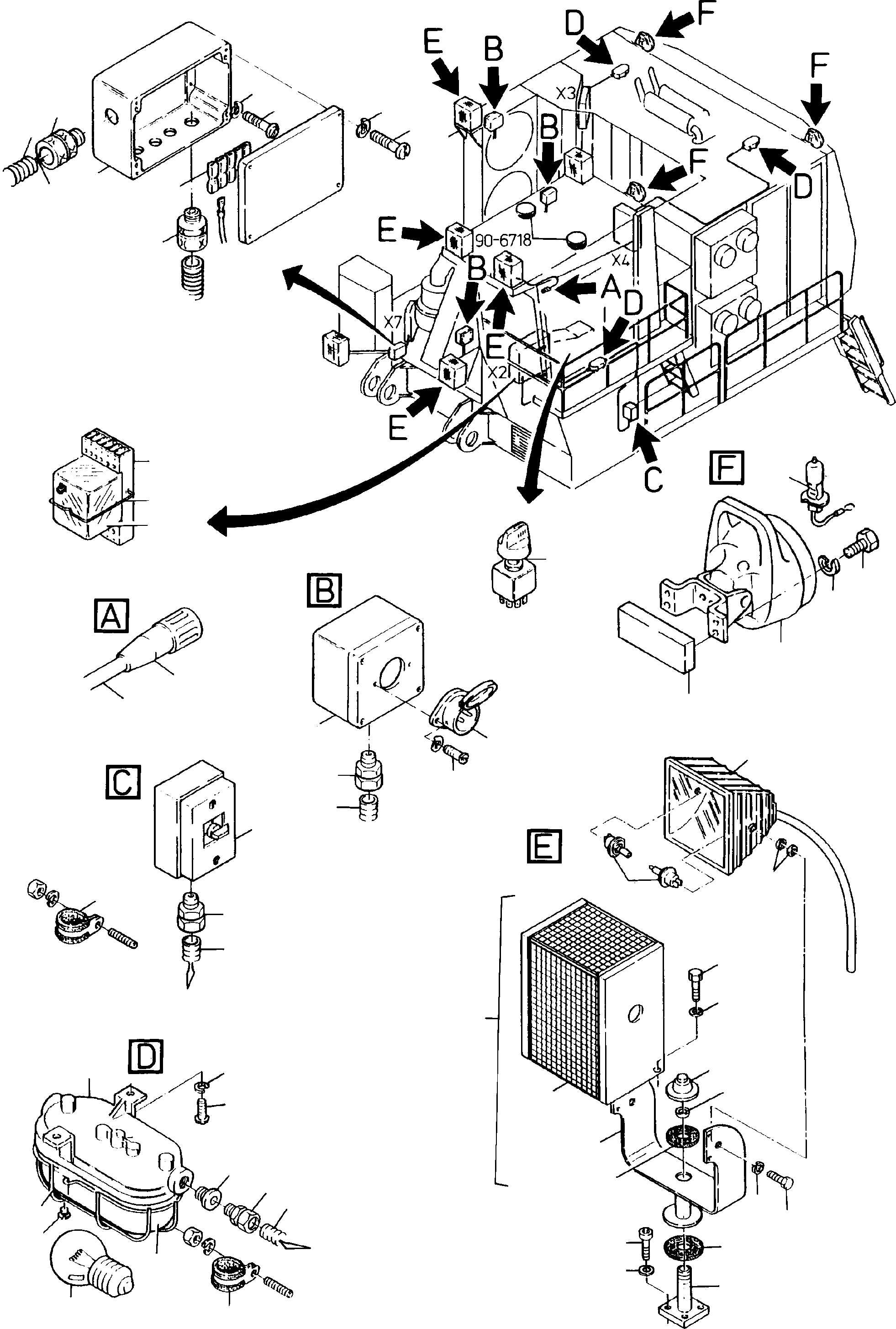

LIGHTING EQUIPMENT | H285 S/N 78099 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options
01	255 333 40	Oval lamp	3	InternBDB: Fa. Sievert 191 202 \| InternKon: 399 790 40 / 17
02	694 640	Lampe glass to fig-no: 01	-2	InternBDB: zu 191 202
03	694 641	Protective grating to fig-no: 01	-2	InternBDB: zu 191 202
04	058 253 40	Bulb 40 W	3	InternBDB: 40 W /24V E27 \| InternKon: 399 790 40 / 18
05	321 017 99	Screw	6	InternBDB: AM 6x40 /84
06	346 499 99	Lock washer	6	InternBDB: 6 /128
07	320 821 99	Screw	6	InternBDB: AM 6x20 /84
08	600 847 99	Reducing 16-9	3	InternBDB: Fa. Sievert 123 964
09	057 278 40	Socket 2-polig	3	InternBDB: Bosch 0352 221 001
10	519 320 40	Head light mount	1
11	320 977 99	Screw	6	InternBDB: AM 4x25 /84
12	471 861 99	Cable Bulk ware, state length required	-2	InternBDB: blau 12
13	006 302 98	Clamp	50	InternBDB: RSGU 1100/ 15/15
14	057 041	Rocker switch	1	InternBDB: Sievert 149 801 1-pol. \| InternKon: 399 790 40 / 23
16	323 950 40	Cable union	20	InternBDB: PG 9 5010.100.009 \| InternKon: 399 790 40 / 69
17	356 238 40	Cable protection hose Bulk ware, state length required	-2	InternBDB: PG 9 220.101.010
18	255 034 40	Housing, empty	3	InternBDB: Bopla A 105
19	471 915 99	Cable Bulk ware, state length required	-2	InternBDB: 4x1,5/97718
20	324 839 40	Halogen spotlight	3	InternBDB: Hella 1 GH 003470- 031 \| InternKon: 409 425 40 / 01
21	158 845 40	Halogen lamp	3	InternBDB: 24V /70W 8 GH 002090- 251 \| InternKon: 409 425 40 / 02
22	324 401 40	Turn switch	1	InternBDB: Merit 260 400 \| InternKon: 409 425 40 / 03
23	409 422 40	Graphical symbol (emergency lighting)	1	InternKon: 409 425 40 / 04
24	323 909 40	Relay	3	InternBDB: Schrack RL 301 024 \| InternKon: 409 425 40 / 05
25	323 910 40	Socket	3	InternBDB: RN 78 750 \| InternKon: 409 425 40 / 06
26	323 911 40	Spring retainer	3	InternBDB: RN 28 801 \| InternKon: 409 425 40 / 07
27	409 428 40	Plate	3	InternKon: 409 425 40 / 10
28	307 425 99	Bolt	12	InternBDB: M8x20 /933 \| InternKon: 409 425 40 / 11
29	343 004 99	Washer	12	InternBDB: 8,4 /93 \| InternKon: 409 425 40 / 12
30	400 830 40	Headlamp housing, assy. consist. of fig nos. 31 - 44	6
31	403 524 40	Protection casing	1	InternKon: 400 830 40 / 2
32	329 002 40	Head light mount	1	InternKon: 400 830 40 / 3
33	329 003 40	Support	1	InternKon: 400 830 40 / 4
34	329 004 40	Lock washer	1	InternKon: 400 830 40 / 5
35	329 005 40	Lock washer	1	InternKon: 400 830 40 / 6
36	342 096 40	Disk	1	InternKon: 400 830 40 / 7
37	340 409 99	Washer	1	InternBDB: 15 /433 \| InternKon: 400 830 40 / 9
38	340 467 99	Washer	4	InternBDB: 13 /125 \| InternKon: 400 830 40 / 10
39	307 802 99	Bolt	2	InternBDB: M12x25 /933 \| InternKon: 400 830 40 / 11
40	343 112 99	Lock washer	2	InternBDB: 12 /128 \| InternKon: 400 830 40 / 12
41	320 343 99	Screw	4	InternBDB: M10x15 /6912 \| InternKon: 400 830 40 / 15
42	346 500 99	Lock washer	4	InternBDB: 10 /128 \| InternKon: 400 830 40 / 16
43	307 339 99	Bolt	2	InternBDB: M12x15 /933 \| InternKon: 400 830 40 / 13
44	343 006 99	Washer	2	InternBDB: 13 /93 \| InternKon: 400 830 40 / 14
45	256 297 40	Headlamp	6	InternBDB: Schmidt 2x100 W PSH 500 24V
46	269 021 40	Halogen lamp 100 W /24 V	12	InternBDB: QJ 100W /24V Osram - 64460
47	057 245 40	Plug	6	InternBDB: Bosch 0.352.130.001
48	255 309 40	Housing, empty	1	InternBDB: Bopla A 110 \| InternKon: 399 790 40 / 40
49	356 240 40	Cable protection hose Bulk ware, state length required	1	InternBDB: 220.101.015 \| InternKon: 399 790 40 / 66
50	323 952 40	Cable union	1	InternBDB: PG 13,5 5010.100.013 \| InternKon: 399 790 40 / 71
51	471 861 99	Cable Bulk ware, state length required	-2	InternBDB: 1
52	471 729 99	Cable Bulk ware, state length required	-2	InternBDB: 2,5
53	320 975 99	Screw	4	InternBDB: AM4x16/84
54	320 816 99	Screw	4	InternBDB: AM5x10/84
55	346 508 99	Lock washer	4	InternBDB: 4/128
56	343 852 99	Lock washer	4	InternBDB: 5/7980
57	057 296 40	Wiring connection	1
