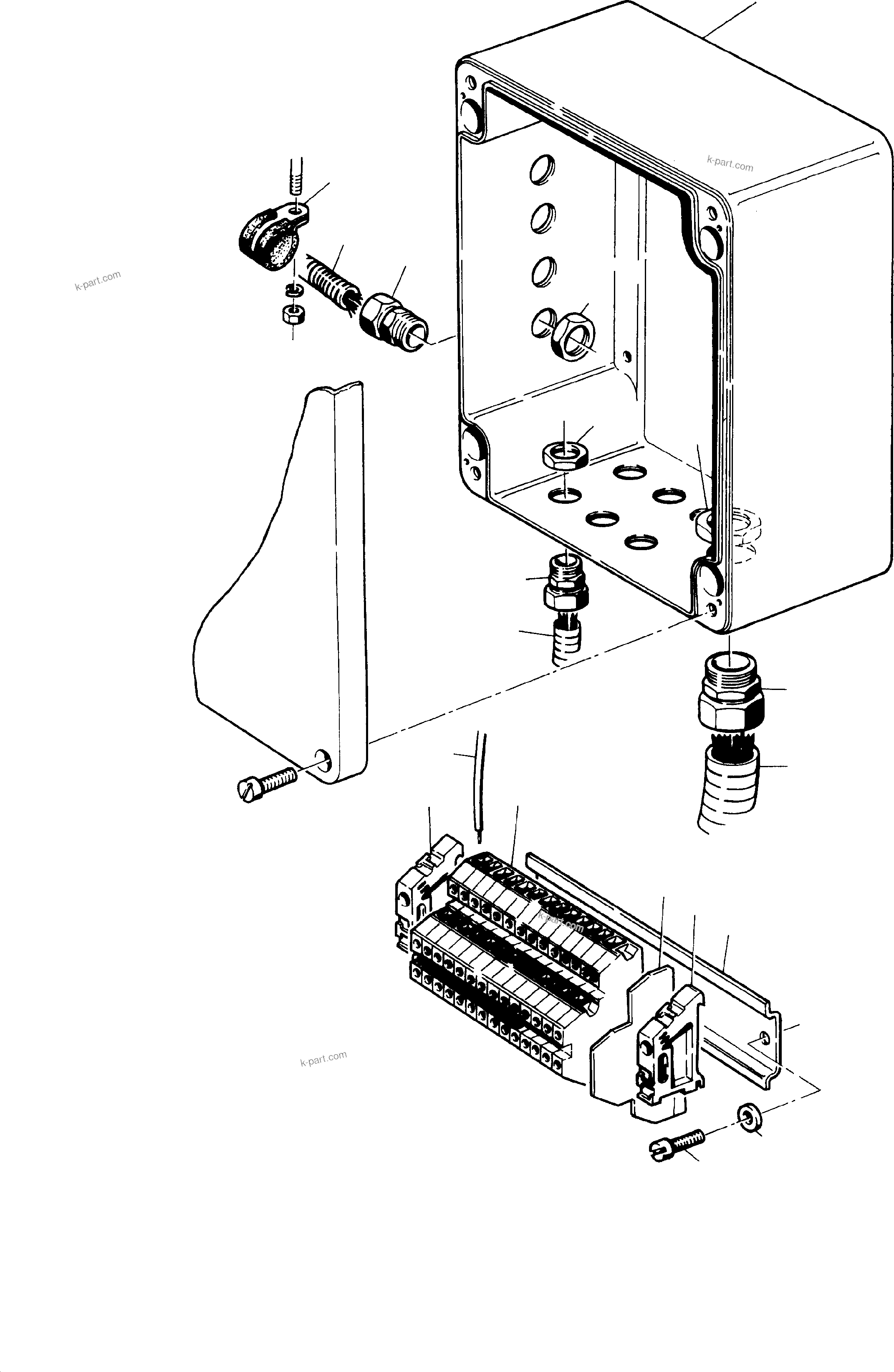

Komatsu parts book diagram for H285 S/N 78099: JUNCTION BOX (FILTER FRAME)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	255 712 40	Housing, empty	1	InternBDB: Bopla A 125 \| InternKon: 399 790 40 / 28
	?	356 265 40	Clamp	2	InternBDB: Entrelec 10300-26
	?	356 264 40	Twin terminal	14	InternBDB: 115 271-22
	?	356 266 40	Cover plate	2	InternBDB: 118 499-23
	?	502 709 98	Assembly rail ca. 150 lg. Bulk ware, state length required	1	InternBDB: Weidmьller TS 35 3834.0 Weidmьller TS 35 /3834.0
	?	320 819 99	Screw	2	InternBDB: AM 6x10 /84
	?	346 499 99	Lock washer	2	InternBDB: 6 /128
	?	323 949 40	Cable union	12	InternBDB: PG 7 Sievert 5010.100.007 \| InternKon: 399 790 40 / 68
	?	323 953 40	Cable union	1	InternBDB: PG 16 5010.100.016 \| InternKon: 399 790 40 / 72
	?	502 825 98	Cable nut	12	InternBDB: APG 7 /46258 \| InternKon: 399 790 40 / 78
	?	502 828 98	Cable nut	1	InternBDB: APG 16 /46258 \| InternKon: 399 790 40 / 82
	?	056 211 40	Conduit Bulk ware, state length required	-2	InternBDB: x \| InternKon: 399 790 40 / 65
	?	356 241 40	Conduit Bulk ware, state length required	-2	InternBDB: Sievert 220.101.017 \| InternKon: 399 790 40 / 67
	?	006 302 98	Clamp	15	InternBDB: RSGU 1100 / 15/15
	?	502 609 98	Cable Bulk ware, state length required	-2	InternBDB: 1 qmm

Komatsu H285 S/N 78099 parts catalog PDF

JUNCTION BOX (FILTER FRAME) (114-2185) in H285 S/N 78099. Diagram image and parts list.
