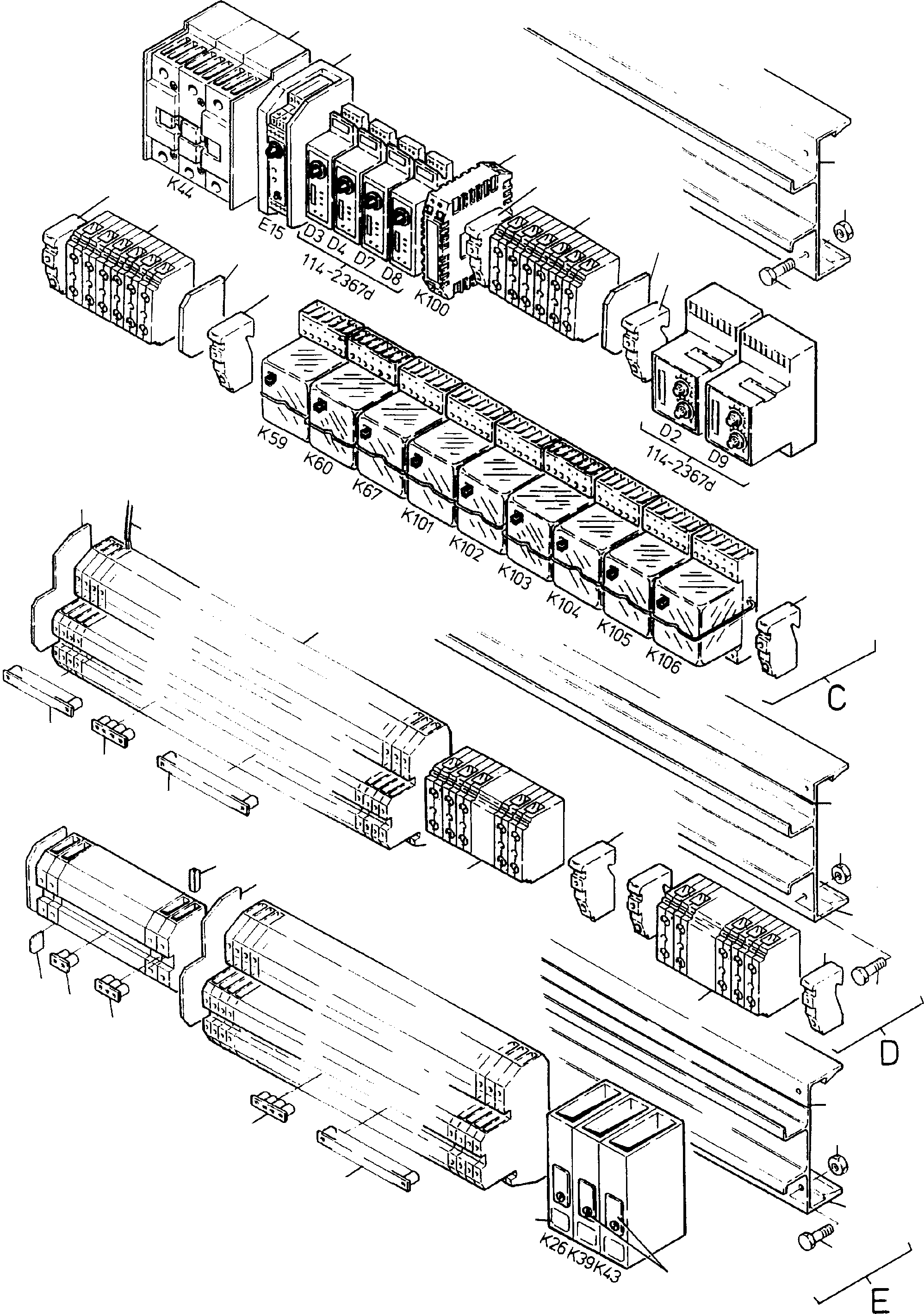

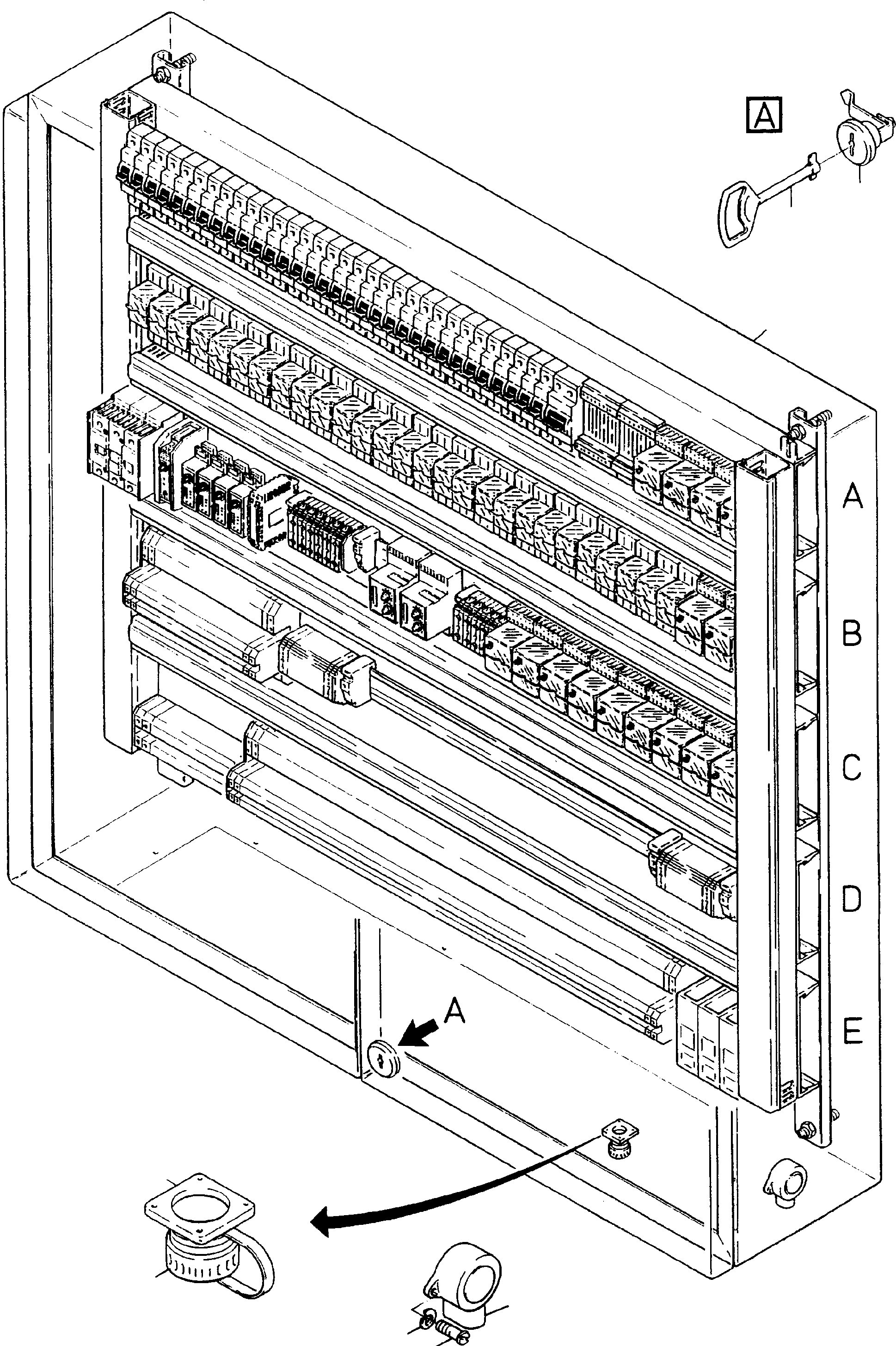

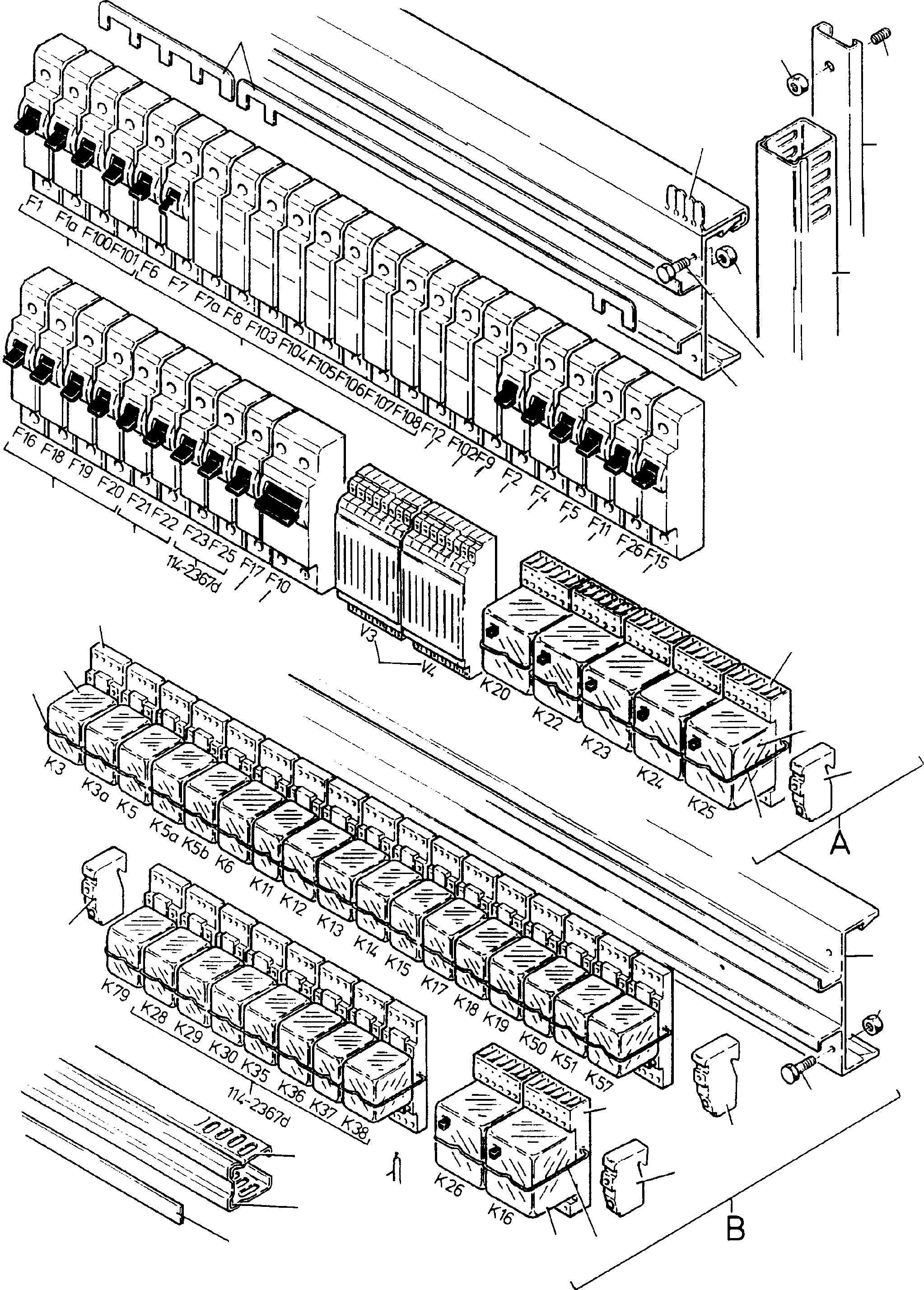

Diagram image 1 of 3

H285 S/N 78099

01 02 03 03 04 04 05 05 05 06 07 08 08 08 08 08 08 09 09 09 09 09 09 10 11 12 12 12 12 13 14 15 16 17 18 19 20 21 22 23 24 24 25 25 26 26 27

H285 S/N 78099

30 30 31 32 32 33 33 34 34 35 36 37 38 39 39 39 40 41 41 41 41 41 41 41 42 43 44 45 46 47 48 49 50 51 52 52 53 54 55 56 56 57 58 58 58 59 59 59

H285 S/N 78099

65 66 67 68 69 70 71 72

#	Part Number	Partname	Quantity	Options
\|$$1		Graphic 1	-1
01	323 759 40	Assembly rail	2	InternBDB: Luetze CP 750 Best.Nr. \| InternKon: 399 791 40 / 2
02	323 237 40	Wiring fan	4	InternBDB: KP 300 Best.Nr.33004 \| InternKon: 399 791 40 / 7
03	358 267 40	Sectional plate	2	InternBDB: SA 120x900 Best.Nr.33335 \| InternKon: 399 791 40 / 4
04	308 252 99	Screw	8	InternBDB: M8x16 /933 \| InternKon: 399 791 40 / 13
05	334 673 99	Nut	8	InternBDB: M 8 /985 \| InternKon: 399 791 40 / 14
06	323 766 40	Automatic breaker 50 Amp.	4	InternBDB: Klцckner Mцller FAZG 50 A \| InternKon: 399 791 40 / 16
07	323 767 40	Automatic breaker 25 Amp.	1	InternBDB: FAZG 25 A \| InternKon: 399 791 40 / 17
08	323 768 40	Automatic breaker 16 Amp.	16	InternBDB: FAZG 16 A \| InternKon: 399 791 40 / 18
09	323 769 40	Automatic breaker 6 Amp.	9	InternBDB: FAZG 6 A \| InternKon: 399 791 40 / 19
10	358 256 40	Automatic breaker 1 Amp.	1	InternBDB: FAZG 1 A-2 \| InternKon: 399 791 40 / 21
11	323 347 40	Diode detector	2	InternBDB: Lьtze DGE-22P-1A Best.Nr.71806 \| InternKon: 399 791 40 / 12
12	356 265 40	Clamp	-2	InternBDB: Entrelec 103 002-26 \| InternKon: 399 791 40 / 41
13	414 368 40	Plate (14-pol.)	18	InternBDB: Fa.Schrack RA 78724 \| InternKon: 399 791 40 / 11
14	399 773 40	Relay	18	InternBDB: RA 900282 \| InternKon: 399 791 40 / 15
15	323 233 40	Wiring profile ca. 900 lg. Bulk ware, state length required	8	InternBDB: Luetze LV 78 Best.Nr.33002 \| InternKon: 399 791 40 / 6
16	323 234 40	Cover ca. 900 lg. Bulk ware, state length required	4	InternBDB: 25 BN Best.Nr.30071 \| InternKon: 399 791 40 / 8
17	323 235 40	Marking strips ca. 900 lg. Bulk ware, state length required	4	InternBDB: Best.Nr.30093 \| InternKon: 399 791 40 / 9
18	323 236 40	Covering for fig-no: 19 Bulk ware, state length required	4	InternBDB: Best.Nr.30092 Luetze 30092 \| InternKon: 399 791 40 / 10
19	471 731 99	Cable Bulk ware, state length required	-2	InternBDB: 6 qmm
20	471 861 99	Cable Bulk ware, state length required	-2	InternBDB: 1 qmm
21	317 033 99	Threaded rod	4	InternBDB: M8x70 /974 \| InternKon: 399 791 40 / 30
22	270 873 40	Cable channel ca. 700 lg. Bulk ware, state length required	2	InternBDB: Fa. Sievert 131083
23	414 369 40	Spring	18	InternBDB: Schrack RA 28802 \| InternKon: 399 791 40 / 79
24	323 911 40	Spring	7	InternBDB: Turck S3-C 69407 \| InternKon: 399 791 40 / 33
25	323 909 40	Relay	7	InternBDB: Turck C3-A30 24V-DC \| InternKon: 399 791 40 / 31
26	323 910 40	Socket (11-pol.)	6	InternBDB: CS-11 \| InternKon: 399 791 40 / 32
27	346 543 40	Rail collector Bulk ware, state length required	-2	InternBDB: Hage-K61M Hagen K 61M \| InternKon: 399 791 40 / 34
\|$$29		Graphic 2	-1
30	356 266 40	Cover plate	2	InternBDB: Entrelec 118 499-23 \| InternKon: 399 791 40 / 42
31	356 264 40	Clamp	80	InternBDB: 115 271-22 \| InternKon: 399 791 40 / 40
32	358 266 40	Sectional plate	2	InternBDB: Luetze CA 80x900 Best.Nr.33384 \| InternKon: 399 791 40 / 3
33	358 268 40	Sectional plate	2	InternBDB: AA 23x900 Best.Nr.33395 \| InternKon: 399 791 40 / 5
34	356 272 40	Cover plate	1	InternBDB: Entrelec 118 368-16 \| InternKon: 399 791 40 / 48
35	356 274 40	Clamp	8	InternBDB: 115 120-17 \| InternKon: 399 791 40 / 50
36	323 324 40	Switch unit	1	InternBDB: RH 32 7 ?-70 ? \| InternKon: 399 791 40 / 35
37	323 248 40	Switch unit	2	InternBDB: RH 31 40 ?-120 ? \| InternKon: 399 791 40 / 36
38	490 680 40	Time lag relay	1	InternBDB: Entrelec 010 515-15
39	308 252 99	Bolt	6	InternBDB: 10580-23er M8x16 /933 \| InternKon: 399 791 40 / 13
40	414 649 40	Detronic EFM	1	InternBDB: Fa. Gema- tronic \| InternKon: 399 791 40 / 39
41	356 265 40	Clamp	-2	InternBDB: Entrelec 103 002-26 \| InternKon: 399 791 40 / 41
42	358 257 40	Current breaker	1	InternBDB: Klцckner Mцller DIL 1-22/G24V \| InternKon: 399 791 40 / 37
43	471 731 99	Cable Bulk ware, state length required	-2	InternBDB: 6 qmm
44	471 861 99	Cable Bulk ware, state length required	-2	InternBDB: 1 qmm
45	323 942 40	Sleeve marker	-2	InternBDB: Weidmьller 2521.0 "0" \| InternKon: 399 791 40 / 25
46	323 943 40	Sleeve marker	-2	InternBDB: 2521.0 blau \| InternKon: 399 791 40 / 26
47	270 318 40	Sleeve marker	-2	InternBDB: 2526.0 "0" \| InternKon: 399 791 40 / 27
48	323 944 40	Sleeve marker	-2	InternBDB: 2394.0 \| InternKon: 399 791 40 / 28
49	356 267 40	Cross connection OV 2	-2	InternBDB: Entrelec 173515-11 \| InternKon: 399 791 40 / 43
50	356 268 40	Cross connection OV 3	-2	InternBDB: 173516-12 \| InternKon: 399 791 40 / 44
51	356 269 40	Cross connection OV 4	-2	InternBDB: 173517-13 \| InternKon: 399 791 40 / 45
52	356 270 40	Cross connection OV 10	-2	InternBDB: 173520-22 \| InternKon: 399 791 40 / 46
53	356 275 40	Cross connection OV 10	-2	InternBDB: 173615-25 \| InternKon: 399 791 40 / 51
54	356 276 40	Bulkhead	-2	InternBDB: 113003-10 \| InternKon: 399 791 40 / 52
55	356 279 40	Cross connection OV 4	-2	InternBDB: 173618-00 \| InternKon: 399 791 40 / 55
56	356 280 40	Cross connection OV 10	-2	InternBDB: 173620-06 \| InternKon: 399 791 40 / 56
57	358 267 40	Sectional plate	1	InternBDB: Lьtze 33335 \| InternKon: 399 791 40 / 4
58	334 673 99	Nut	6	InternBDB: M 8 /985 \| InternKon: 399 791 40 / 14
59	059 200 40	Ground clamp	20
\|$$60		Graphic 3	-1
65	081 267 40	Double-bit key	1	InternBDB: Emka 1004-05
66	057 278 40	Socket	1	InternBDB: Bosch 0352 221 001
67	320 975 99	Screw	2	InternBDB: AM4x16 /84
68	346 508 99	Lock washer	2	InternBDB: 4 /128
69	698 078 73	Sash lock	2	InternBDB: Lohmeier Nr. 5126
70	057 300 40	Flanged socket	1	InternBDB: Cannon MS3102 R10S- 3 P
71	145 777 40	Dust cap	1	InternBDB: MS 25043-10C
72	358 259 40	Switch box w/o e-parts	1	InternBDB: Lohmeier AT 1080 \| InternKon: 399 791 40 / 1
\|$$69	997 892 73	Marking strips - set	-2	InternBDB: E-ST

Komatsu H285 S/N 78099 parts catalog PDF

MAIN SWITCH BOX IN CABIN SUPPORT (114-2165f1) in H285 S/N 78099. Diagram image and parts list.
