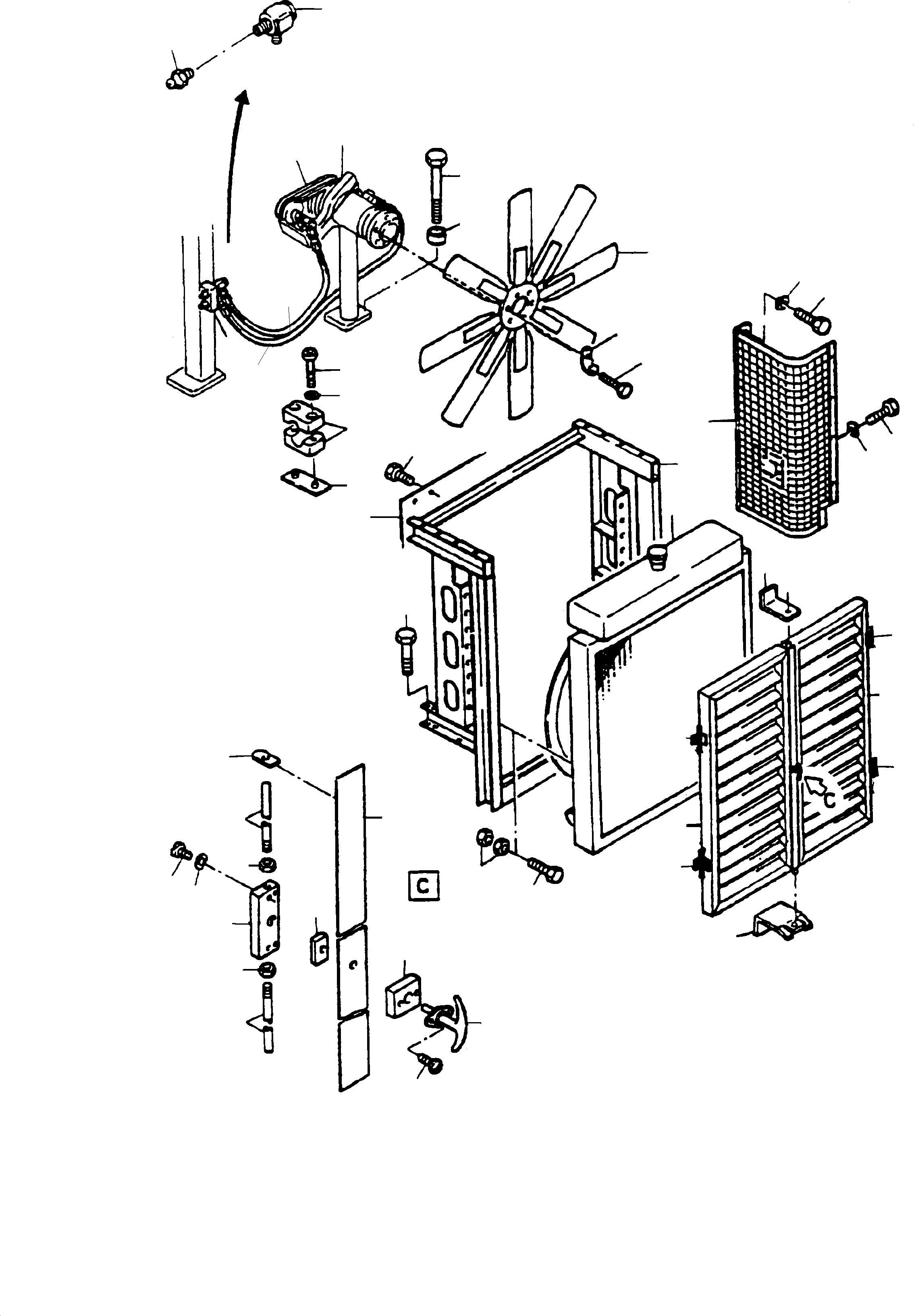

RADIATOR ARR. | H135S S/N 61064 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

#	Part Number	Partname	Quantity	Options	Reference
01		Radiator assy.	1	InternBDB: 440 503 40	090-6933a
02		Fan mounting	1	InternKon: 410 878 40 / 18	116-1230b
04	425 315 40	Visor assy.	1	InternKon: 439 881 40 / 1
05	425 322 40	Visor assy.	1	InternKon: 439 881 40 / 2
\|$$5		Lining to fig-no. 04 and 05	-1
\|$$6	256 713 40	Insulation board 15x190x585 Bulk ware, state length required	26	InternBDB: 594 192 40 Faist 15 / M1420 \| InternKon: 594 193 40 / 2
06	439 882 40	Frame	1	InternKon: 439 881 40 / 3
07	425 319 40	Shackle	1	InternKon: 439 881 40 / 5
08	425 323 40	Angle	1	InternKon: 439 881 40 / 6
09	307 782 99	Bolt	16	InternBDB: M10x45 /933 \| InternKon: 439 881 40 / 7
10	332 113 99	Nut	32	InternBDB: M 10 /934 \| InternKon: 439 881 40 / 8
11	304 352 99	Bolt	6	InternBDB: M16x140 /931 10.9 \| InternKon: 439 881 40 / 9
15	640 588 40	Plate 40x5x120	2	InternKon: 425 322 40 / 4
16	440 556 40	Band roller with grease nipple	4	InternBDB: Emka 1033 411/20K 150mm \| InternKon: 439 881 40 / 10
20	122 704 40	Base	1	InternKon: 425 315 40 / 9
21	122 705 40	Retainer	4	InternKon: 425 315 40 / 10
22	640 120 40	Closing handle	1	InternBDB: TL Schlechtend. \| InternKon: 425 315 40 / 11
23	640 589 40	Plate	1	InternKon: 425 315 40 / 12
24	323 635 40	Gib and cotter	1	InternBDB: WSS-1011 \| InternKon: 425 315 40 / 13
25	640 588 40	Plate 40x5x120	2	InternKon: 425 315 40 / 14
27	332 113 99	Nut	2	InternBDB: M 10 /934 \| InternKon: 425 315 40 / 16
28	321 010 99	Screw	4	InternBDB: AM 5x25 /84 \| InternKon: 425 315 40 / 17
29	346 509 99	Lock washer	4	InternBDB: 5 /128 \| InternKon: 425 315 40 / 18
30	318 576 99	Screw	2	InternBDB: M5x10 /964 \| InternKon: 425 315 40 / 19
31	425 321 40	Cover plate	1	InternKon: 425 315 40 / 6
32	425 349 40	Clasp	1	InternKon: 425 315 40 / 7
33	425 351 40	Clasp	1	InternKon: 425 315 40 / 8
35	030 156 99	V-belt	4	InternBDB: SPA 1507 LW 120 GR /7753 \| InternKon: 410 878 40 / 63
36	308 444 99	Bolt	4	InternBDB: M16x100 /931 10.9 \| InternKon: 410 878 40 / 52
37	510 730 98	Resilient sleeve 17/30x55	4	InternKon: 410 878 40 / 53
38	324 669 40	Fan	1	InternBDB: FN 4402 \| InternKon: 410 878 40 / 40
39	409 978 40	Locking plate	3	InternKon: 410 878 40 / 41
40	307 804 99	Bolt	6	InternBDB: M12x30 /933 \| InternKon: 410 878 40 / 57
41	436 098 40	Lube rail	1	InternKon: 410 878 40 / 64
42	006 892 98	Union	2	InternBDB: Voss 6-LM \| InternKon: 410 878 40 / 65
43	643 818 40	Hose assy. NW 5x2250	1	InternBDB: DOL 6 /DOL 6 - 90 \| InternKon: 410 878 40 / 66
44	643 819 40	Hose assy. NW 5x2000	1	InternBDB: DOL 6 /DOL 6 - 90 \| InternKon: 410 878 40 / 67
46	350 562 99	Grease nipple	2	InternBDB: AM 10x1 / 71412 \| InternKon: 410 878 40 / 69
47	506 215 98	Clamp	4	InternBDB: H-C 2/14 \| InternKon: 410 878 40 / 83
48	533 989 99	Plate	2	InternBDB: E 2 \| InternKon: 410 878 40 / 84
49	319 132 99	Screw	4	InternBDB: M6x25 /912 \| InternKon: 410 878 40 / 85
50	340 405 99	Washer	4	InternBDB: 6,4 /433 \| InternKon: 410 878 40 / 86
51	439 895 40	Hood	1	InternKon: 410 878 40 / 80
52	377 750 99	Bolt	4	InternBDB: M8x16 /933 \| InternKon: 410 878 40 / 81
53	439 826 40	Protective grating	1
54	307 299 99	Bolt	2	InternBDB: M8x10 /933 \| InternKon: 439 826 40 / 12
55	307 750 99	Bolt	4	InternBDB: M8x15 /933 \| InternKon: 439 826 40 / 13
56	346 510 99	Lock washer	6	InternBDB: 8 /128 \| InternKon: 439 826 40 / 14
