PC57-7 S/N DJB10001-up

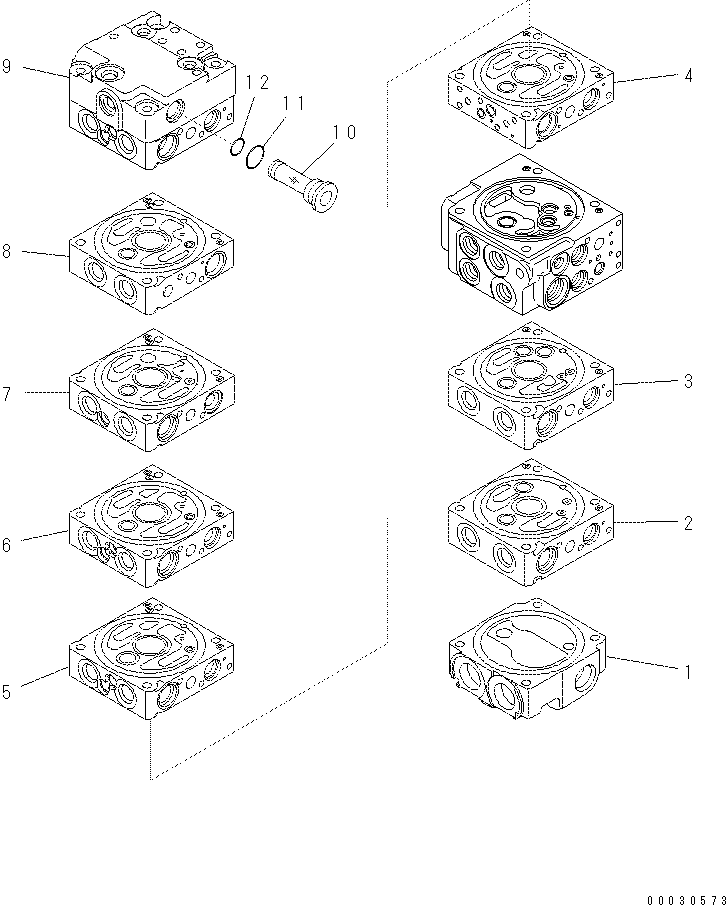

Komatsu parts book diagram for PC57-7 S/N DJB10001-up: MAIN VALVE (8-VALVE) (1/22)(#DJB04671-)

	#	Part Number	Partname	Quantity	Options	Reference
	\|$1	723-18-18504	CONTROL VALVE	1	Field_1: CONTROL VALVE \| Field_2: DJB10001-
	\|$2		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1660-01A0 TO Y1660-22A0.	-1	Field_1: THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1660-01A0 T
	1	Ўо	BLOCK	1	Field_1: BLOCK \| Field_2: DJB10001-
	2	Ўо	BLOCK, VALVE	1	Field_1: BLOCK, VALVE \| Field_2: DJB10001-
	3	Ўо	BLOCK, VALVE	1	Field_1: BLOCK, VALVE \| Field_2: DJB10001-
	4	Ўо	BLOCK, VALVE	1	Field_1: BLOCK, VALVE \| Field_2: DJB10001-
	5	Ўо	BLOCK, VALVE	1	Field_1: BLOCK, VALVE \| Field_2: DJB10001-
	6	Ўо	BLOCK, VALVE	1	Field_1: BLOCK, VALVE \| Field_2: DJB10001-
	7	Ўо	BLOCK, VALVE	1	Field_1: BLOCK, VALVE \| Field_2: DJB10001-
	8	Ўо	BLOCK, VALVE	1	Field_1: BLOCK, VALVE \| Field_2: DJB10001-
	9	723-11-23290	COVER, VALVE	1	Field_1: COVER, VALVE \| Field_2: DJB10001-
	10	723-11-14390	FILTER	1	Field_1: FILTER \| Field_2: DJB10001-
	11	07002-12434	O-RING	1	Field_1: O-RING \| Field_2: DJB10001-
	12	723-11-19130	O-RING	1	Field_1: O-RING \| Field_2: DJB10001-

Komatsu PC57-7 S/N DJB10001-up parts catalog PDF

MAIN VALVE (8-VALVE) (1/22)(#DJB04671-) (|Y00157) in PC57-7 S/N DJB10001-up. Diagram image and parts list.
