PC57-7 S/N DJB10001-up

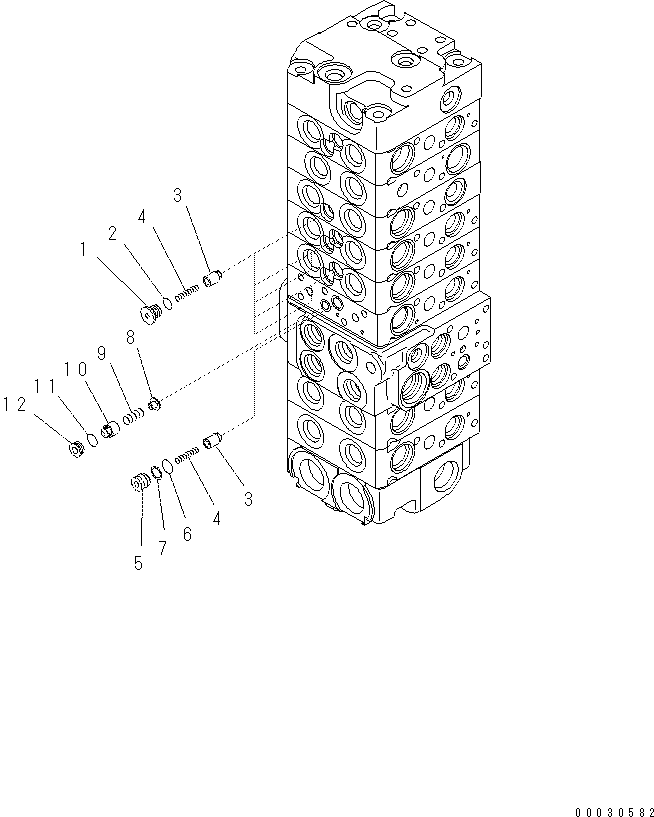

Komatsu parts book diagram for PC57-7 S/N DJB10001-up: MAIN VALVE (8-VALVE) (10/22)(#DJB04671-)

	#	Part Number	Partname	Quantity	Options	Reference
	\|$1	723-18-18504	CONTROL VALVE	1	Field_1: CONTROL VALVE \| Field_2: DJB10001-
	\|$2		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1660-01A0 TO Y1660-22A0.	-1	Field_1: THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1660-01A0 T
	1	723-11-18190	PLUG	5	Field_1: PLUG \| Field_2: DJB10001-
	2	07002-11023	O-RING	5	Field_1: O-RING \| Field_2: DJB10001-
	3	723-11-18170	VALVE	6	Field_1: VALVE \| Field_2: DJB10001-
	4	723-11-18180	SPRING	6	Field_1: SPRING \| Field_2: DJB10001-
	5	723-11-19880	PLUG	1	Field_1: PLUG \| Field_2: DJB10001-
	6	07000-11009	O-RING	1	Field_1: O-RING \| Field_2: DJB10001-
	7	07001-01009	RING	1	Field_1: RING \| Field_2: DJB10001-
	8	723-11-18550	RETAINER	1	Field_1: RETAINER \| Field_2: DJB10001-
	9	723-11-18540	SPRING	1	Field_1: SPRING \| Field_2: DJB10001-
	10	723-11-18530	VALVE	1	Field_1: VALVE \| Field_2: DJB10001-
	11	723-11-19960	O-RING	1	Field_1: O-RING \| Field_2: DJB10001-
	12	723-11-18520	SEAT	1	Field_1: SEAT \| Field_2: DJB10001-

Komatsu PC57-7 S/N DJB10001-up parts catalog PDF

MAIN VALVE (8-VALVE) (10/22)(#DJB04671-) (|Y00166) in PC57-7 S/N DJB10001-up. Diagram image and parts list.
