PC57-7 S/N DJB10001-up

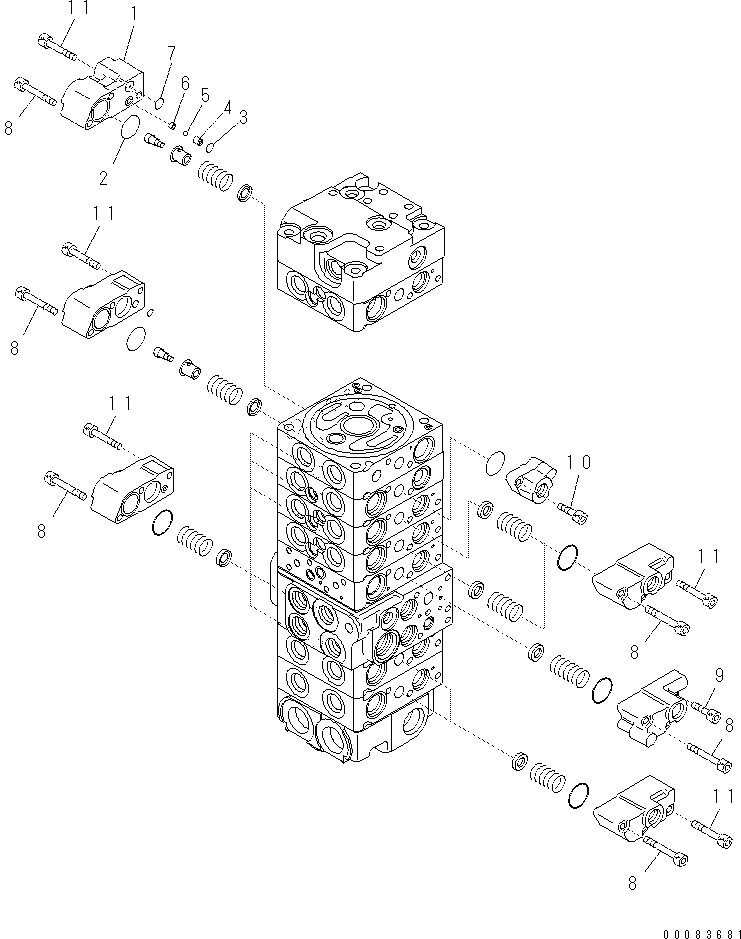

Komatsu parts book diagram for PC57-7 S/N DJB10001-up: MAIN VALVE (8-VALVE) (9/22)(#DJB04671-)

	#	Part Number	Partname	Quantity	Options	Reference
	\|$1	723-18-18504	CONTROL VALVE	1	Field_1: CONTROL VALVE \| Field_2: DJB10001-
	\|$2		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1660-01A0 TO Y1660-22A0.	-1	Field_1: THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1660-01A0 T
	\|$3	723-11-02460	CASE SUB ASS'Y	1	Field_1: CASE SUB ASS'Y \| Field_2: DJB10001-
	1	Ўо	CASE, SPRING	1	Field_1: CASE, SPRING \| Field_2: DJB10001-
	2	722-12-19120	O-RING	1	Field_1: O-RING \| Field_2: DJB10001-
	3	702-21-54290	O-RING	1	Field_1: O-RING \| Field_2: DJB10001-
	4	Ўо	SEAT	1	Field_1: SEAT \| Field_2: DJB10001-
	5	Ўо	BALL	1	Field_1: BALL \| Field_2: DJB10001-
	6	Ўо	SEAT	1	Field_1: SEAT \| Field_2: DJB10001-
	7	723-11-19960	O-RING	1	Field_1: O-RING \| Field_2: DJB10001-
	8	01252-60640	BOLT	24	Field_1: BOLT \| Field_2: DJB10001-
	9	01252-60612	BOLT	1	Field_1: BOLT \| Field_2: DJB10001-
	10	01252-60620	BOLT	4	Field_1: BOLT \| Field_2: DJB10001-
	11	01252-60635	BOLT	11	Field_1: BOLT \| Field_2: DJB10001-
