PC57-7 S/N DJB10001-up

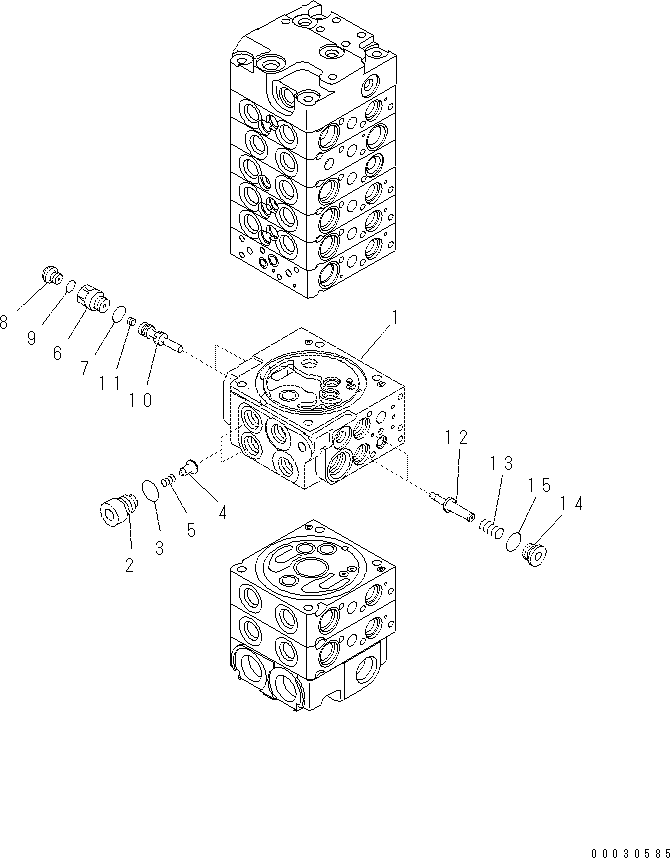

Komatsu parts book diagram for PC57-7 S/N DJB10001-up: MAIN VALVE (8-VALVE) (13/22)(#DJB04671-)

	#	Part Number	Partname	Quantity	Options	Reference
	\|$1	723-18-18504	CONTROL VALVE	1	Field_1: CONTROL VALVE \| Field_2: DJB10001-
	\|$2		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1660-01A0 TO Y1660-22A0.	-1	Field_1: THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1660-01A0 T
	\|$3	Ўо	VALVE SUB ASS'Y	1	Field_1: VALVE SUB ASS'Y \| Field_2: DJB10001-
	1	Ўо	BLOCK, VALVE	1	Field_1: BLOCK, VALVE \| Field_2: DJB10001-
	2	723-11-38260	PLUG	2	Field_1: PLUG \| Field_2: DJB10001-
	3	07002-11823	O-RING	2	Field_1: O-RING \| Field_2: DJB10001-
	4	723-11-38250	VALVE	2	Field_1: VALVE \| Field_2: DJB10001-
	5	722-10-91130	SPRING	2	Field_1: SPRING \| Field_2: DJB10001-
	6	723-11-14290	PLUG	2	Field_1: PLUG \| Field_2: DJB10001-
	7	07002-11423	O-RING	2	Field_1: O-RING \| Field_2: DJB10001-
	8	708-8E-16160	PLUG	2	Field_1: PLUG \| Field_2: DJB10001-
	9	07002-11023	O-RING	2	Field_1: O-RING \| Field_2: DJB10001-
	10	Ўо	VALVE	2	Field_1: VALVE \| Field_2: DJB10001-
	11	Ўо	ORIFICE	2	Field_1: ORIFICE \| Field_2: DJB10001-
	12	Ўо	VALVE	2	Field_1: VALVE \| Field_2: DJB10001-
	13	723-11-14370	SPRING	2	Field_1: SPRING \| Field_2: DJB10001-
	14	723-11-15110	PLUG	2	Field_1: PLUG \| Field_2: DJB10001-
	15	07002-11623	O-RING	2	Field_1: O-RING \| Field_2: DJB10001-

Komatsu PC57-7 S/N DJB10001-up parts catalog PDF

MAIN VALVE (8-VALVE) (13/22)(#DJB04671-) (|Y00169) in PC57-7 S/N DJB10001-up. Diagram image and parts list.
