PC57-7 S/N DJB10001-up

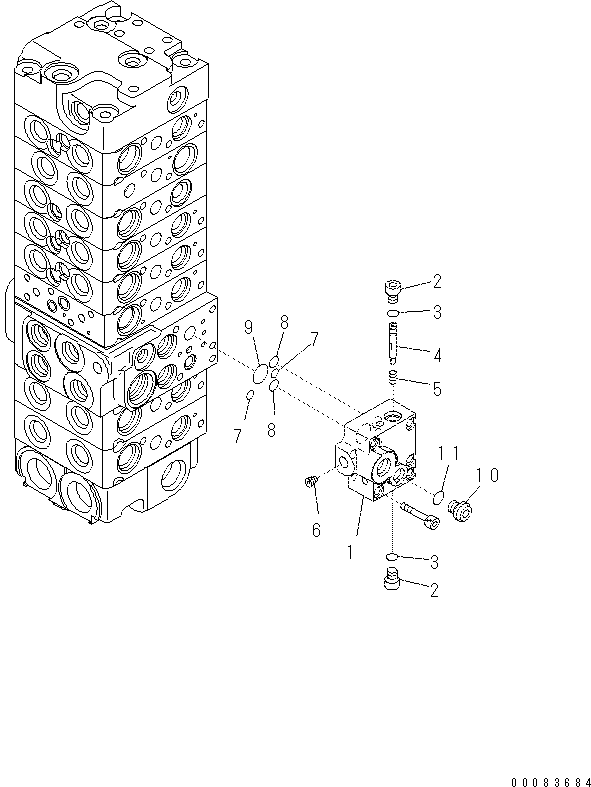

Komatsu parts book diagram for PC57-7 S/N DJB10001-up: MAIN VALVE (8-VALVE) (15/22)(#DJB04671-)

	#	Part Number	Partname	Quantity	Options	Reference
	\|$1	723-18-18504	CONTROL VALVE	1	Field_1: CONTROL VALVE \| Field_2: DJB10001-
	\|$2		THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1660-01A0 TO Y1660-22A0.	-1	Field_1: THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1660-01A0 T
	\|$3	Ўо	VALVE SUB ASS'Y	1	Field_1: VALVE SUB ASS'Y \| Field_2: DJB10001-
	\|$4	723-11-02480	VALVE SUB ASS'Y	1	Field_1: VALVE SUB ASS'Y \| Field_2: DJB10001-
	1	Ўо	BLOCK	1	Field_1: BLOCK \| Field_2: DJB10001-
	2	723-11-13510	PLUG	2	Field_1: PLUG \| Field_2: DJB10001-
	3	07002-10823	O-RING	2	Field_1: O-RING \| Field_2: DJB10001-
	4	Ўо	SPOOL	1	Field_1: SPOOL \| Field_2: DJB10001-
	5	723-11-13340	SPRING	1	Field_1: SPRING \| Field_2: DJB10001-
	6	Ўо	PLUG	1	Field_1: PLUG \| Field_2: DJB10001-
	7	07000-11005	O-RING	2	Field_1: O-RING \| Field_2: DJB10001-
	8	07000-11007	O-RING	2	Field_1: O-RING \| Field_2: DJB10001-
	9	702-21-55420	O-RING	1	Field_1: O-RING \| Field_2: DJB10001-
	10	708-8E-16160	PLUG	1	Field_1: PLUG \| Field_2: DJB10001-
	11	07002-11023	O-RING	1	Field_1: O-RING \| Field_2: DJB10001-

Komatsu PC57-7 S/N DJB10001-up parts catalog PDF

MAIN VALVE (8-VALVE) (15/22)(#DJB04671-) (|Y00171) in PC57-7 S/N DJB10001-up. Diagram image and parts list.
