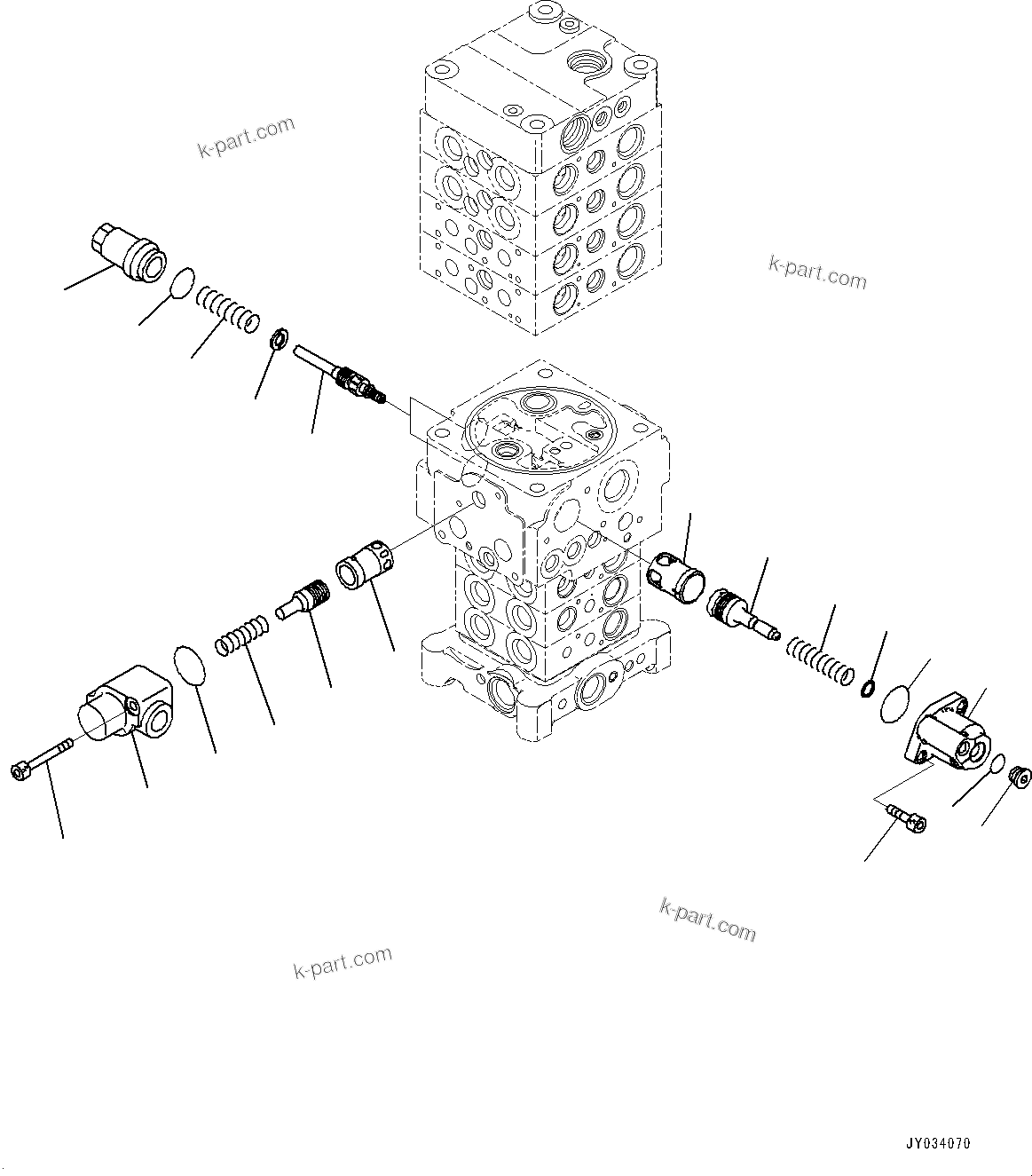

723-57-21103
|
Valve Assembly, Control, With Arm Hydraulic Drift Prevention Valve,1-Additional Actuator Piping |
1 |
SN: 35820-UP
|
|
|
|
? |
723-57-21101
|
Valve Assembly, Control, With Arm Hydraulic Drift Prevention Valve,1-Additional Actuator Piping |
1 |
SN: 35653-35819 | SCC: A2
|
|
|
|
? |
723-57-21100
|
Valve Assembly, Control, With Arm Hydraulic Drift Prevention Valve,1-Additional Actuator Piping |
1 |
SN: 35001-35652 | SCC: B1
|
|
|
|
? |
|
Body Group |
1 |
SN: 35001-UP | SCC: C1
|
|
|
|
? |
|
Spool |
2 |
SN: 35001-UP | SCC: C1
|
|
|
|
? |
723-50-55320
|
Sleeve |
2 |
SN: 35001-UP
|
|
|
|
? |
723-50-55340
|
Spring |
2 |
SN: 35001-UP
|
|
|
|
? |
723-50-55280
|
Spacer |
2 |
SN: 35001-UP
|
|
|
|
? |
07002-63334
|
O-ring |
2 |
SN: 35001-UP
|
|
|
|
? |
|
Sleeve |
1 |
SN: 35001-UP | SCC: C1
|
|
|
|
? |
|
Sleeve |
1 |
SN: 35001-UP | SCC: C1
|
|
|
|
? |
|
Piston |
1 |
SN: 35001-UP | SCC: C1
|
|
|
|
? |
|
Piston |
1 |
SN: 35001-UP | SCC: C1
|
|
|
|
? |
|
Seal |
1 |
SN: 35001-UP | SCC: C1
|
|
|
|
? |
723-56-34840
|
Spring |
1 |
SN: 35001-UP
|
|
|
|
? |
723-56-33910
|
Spring |
1 |
SN: 35001-UP
|
|
|
|
? |
|
Case |
1 |
SN: 35001-UP | SCC: C1
|
|
|
|
? |
|
Case |
1 |
SN: 35001-UP | SCC: C1
|
|
|
|
? |
07000-B3042
|
O-ring |
2 |
SN: 35001-UP
|
|
|
|
? |
723-56-31630
|
Plug |
1 |
SN: 35001-UP
|
|
|
|
? |
07002-61623
|
O-ring |
1 |
SN: 35001-UP
|
|
|
|
? |
01252-60825
|
Bolt, Hexagon Socket Head |
2 |
SN: 35001-UP
|
|
|
|
? |
01252-60860
|
Bolt, Hexagon Socket Head |
2 |
SN: 35001-UP
|
|
|
|
? |
|
[A2]-The part specified in the line above can be used instead of this part. |
-1 |
SN: UP
|
|
|
|
? |
|
[B1]-This shows discontinued part. The part specified in the above line is supplied instead. |
-1 |
SN: UP
|
|
|
|
? |
|
[C1]-This part cannot be supplied as an individual part. It is supplied as an assembly. |
-1 |
SN: UP
|
|
