H455-SD S/N 15009

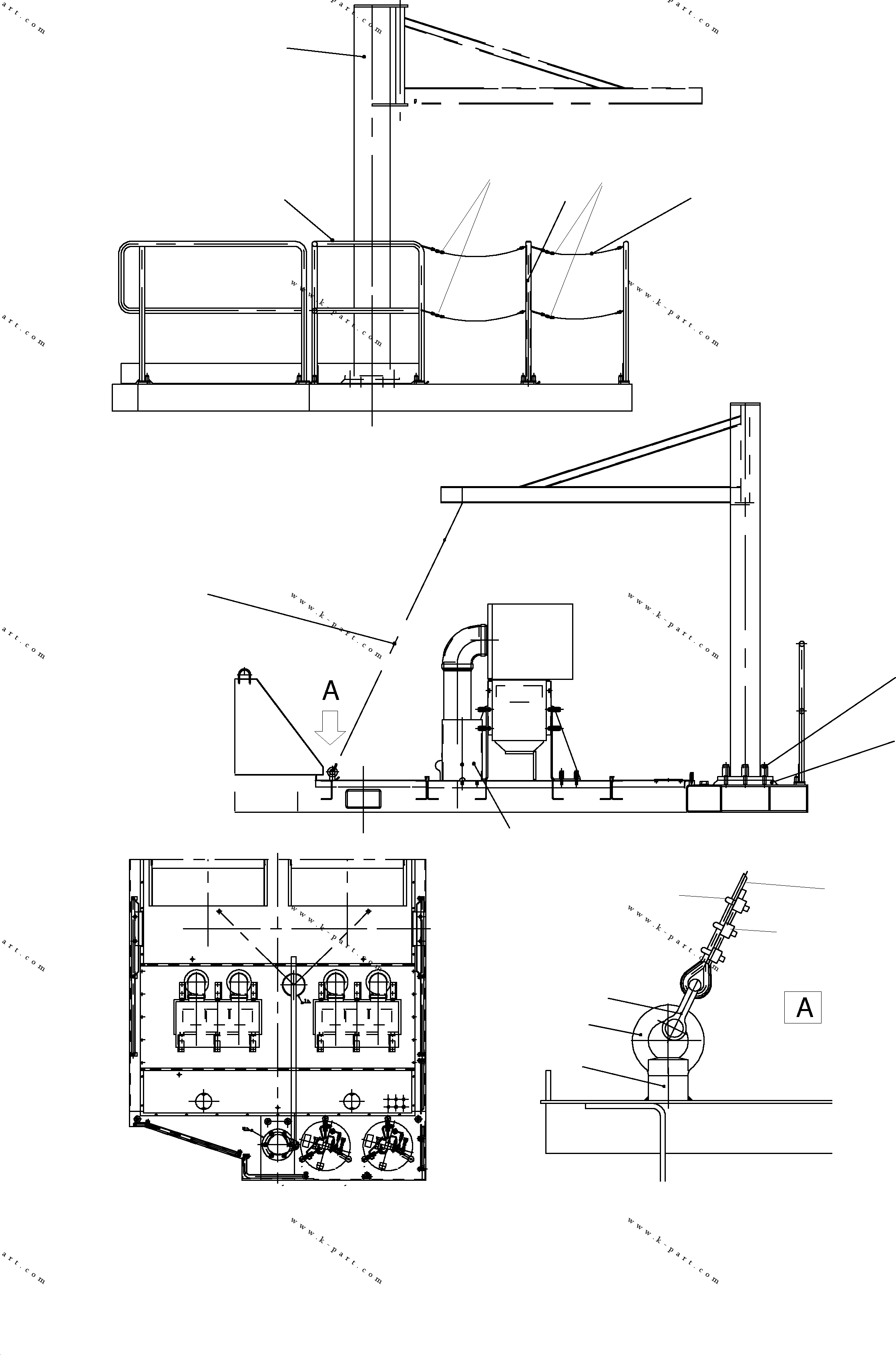

Komatsu parts book diagram for H455-SD S/N 15009: GREASE BARREL CRAN ARRANGEMENT

01 02 03 04 05 05 06 07 08 09 10 11 12 13 14 14 15

	#	Part Number	Partname	Quantity	Options	Reference
	01	898 105 40	Pillar Cran	1	InternBDB: TL \| InternKon: 900 877 40 / 1
	02	897 643 40	Mounting Plate	1	InternBDB: 460x460 \| InternKon: 900 877 40 / 2
	03	504 231 98	Bolt	6	InternBDB: M27x130 8.8 / 931 \| InternKon: 900 877 40 / 3
	04	515 670 98	Resilent Sleeve	6	InternBDB: 28 / 50x70 \| InternKon: 900 877 40 / 4
	05	501 354 98	Rope Ш 5mm 4500mm lg Bulk ware, state length required	-2	InternBDB: SE-BK ZN 1770SZ / 3060
	06	111 260 99	Rope clamp	12	InternBDB: S5 / 1142 \| InternKon: 900 877 40 / 6
	07	504 466 98	Grummet	4	InternBDB: BF 5 / 6899
	08	900 878 40	Threaded block	2	InternKon: 900 877 40 / 8
	09	313 502 99	Eyebolt	2	InternBDB: M12 / 580 \| InternKon: 900 877 40 / 9
	10	300 055 99	Clevis	2	InternKon: 900 877 40 / 10
	11	900 873 40	Rail	1	InternBDB: H 455 S \| InternKon: 900 877 40 / 11
	12	900 879 40	Support	1	InternBDB: H455 S \| InternKon: 900 877 40 / 12
	13	472 508 99	Chain Bulk ware, state length required	-2	InternBDB: 2-8x24 /32891 \| InternKon: 900 877 40 / 13
	14	341 271 99	Triggersnap	4	InternKon: 900 877 40 / 14
	15	900 884 40	Chain box	1	InternKon: 900 877 40 / 15

Komatsu H455-SD S/N 15009 parts catalog PDF

GREASE BARREL CRAN ARRANGEMENT (515-2391) in H455-SD S/N 15009. Diagram image and parts list.
