AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	VM0185	COIL	1
?	VS9055	RETAINER	-1
?	VS9208	SCREW W/LOCKWASHER - #10 - 32NF X 3/8"	2
?	VS9334	BASE	1
?	VS9181	SHIELD	1
?	VE5766	MACHINE SCREW - #6 X 3/8"	2
?	VS8940	FRAME	1
?	VS9050	SPACER	1
?	VS9210	CAPSCREW - 1/4" - 20NC X 3/4"	2
?	VS8889	CORE	1
?	VJ9163	WASHER - SPRING	1
?	VP9590	SCREW W/WASHERS	1
?	VS9236	STOP	1
?	DH5941	CAPSCREW - 1/4" - 20NC X 5/8"	2
?	VS9230	ARMATURE	1
?	VM0198	SPRING	1
?	VS9368	SCREW	1
?	VS9235	ARM	1
?	VS7704	BUSHING	1
?	VS9183	PIN	1
?	VS9182	BLOCK	1
?	VE5156	CAPSCREW - #10 - 32NF X 7/8"	2
?	VM0287	SPRING (1)	1
?	VS9184	SEAT (1)	1
?	VM0199	TIP, CONTACT (1)	1
?	VM0283	SHUNT	1
?	VM0282	HORN	1
?	VN9544	CAPSCREW - 1/4" - 20NC X 3/4"	1
?	DH5941	CAPSCREW - 1/4" - 20NC X 5/8"	1
?	VS8682	COIL / SUPPORT	1
?	VS9393	CORE	1
?	VJ9130	TUBE	1
?	VJ9123	HEAD	1
?	VS8913	FLANGE	1
?	VS8911	FLANGE	1
?	VS9209	SCREW W/LOCKWASHER - #10 - 32NF X 1/2"	4
?	VS8888	SHIELD	1
?	9414509	CAPSCREW W/LOCKWASHER	2
?	TR4065	CAPSCREW	1
?	VS8233	SPACER	1
?	VM0199	TIP, CONTACT (1)	1
?	VN9544	CAPSCREW - 1/4" - 20NC X 3/4"	1
?	VS8875	SIDE - L.H.	1
?	VS8874	SIDE - R.H.	1
?	VP9573	PIECE, POLE	1
?	VS9389	PIECE, POLE	1
?	VS8275	PIN	2
?	VJ8980	MACHINE SCREW	4
?		NOTE: NS = NOT SHOWN	-1
?	VE3530	SENSOR, POSITION (SEE INDEX)	1	64035
?	AK0943	NOTE: (1) INCLUDED IN AK0943 CONTACT TIP KIT.	-1

Komatsu AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM parts catalog PDF

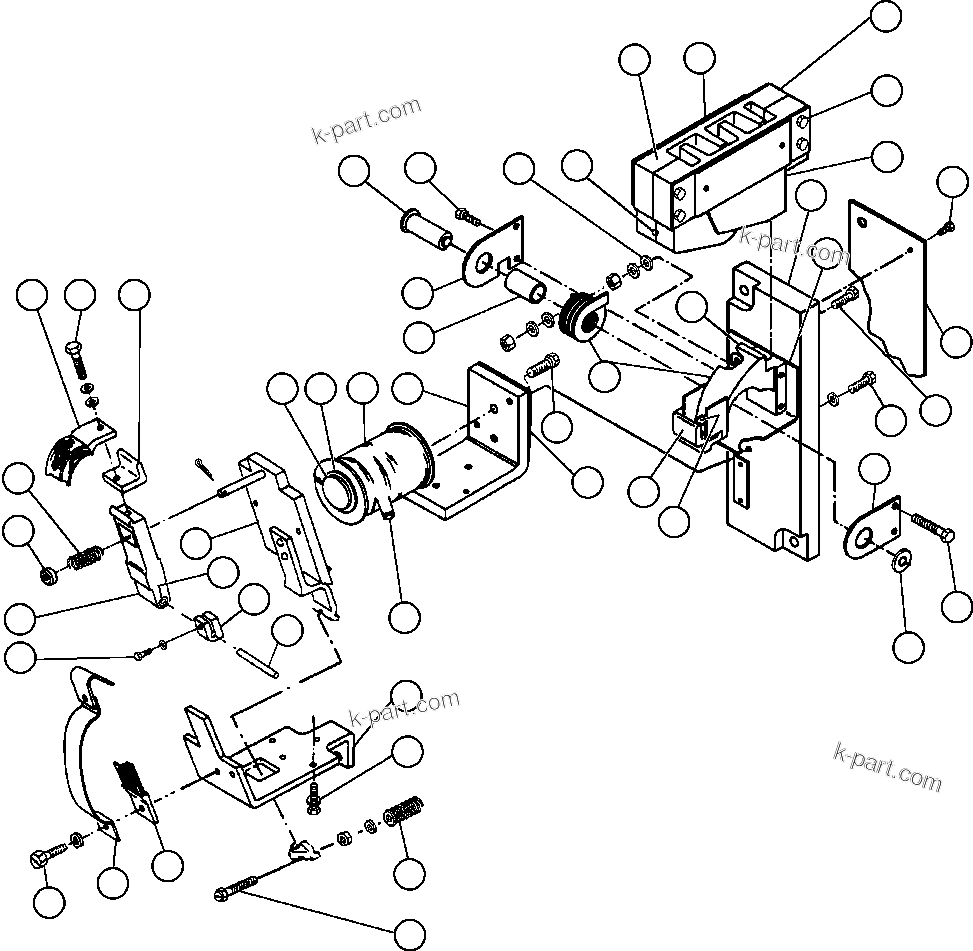

CONTACTOR - GIC (VS8196) (64127) in AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM. Diagram image and parts list.
