AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VE6118	PANEL	1
?	VE4727	BASE	1
?	VE2266	MODULE	1
?	VE4728	CABLE WITH TERMINALS	1
?	VE4729	RESISTOR - 1/2 WATT, 475,000 OHM	14
?	VS7580	RESISTOR - 1/4 WATT, 16,200 OHM	2
?	VP9546	RESISTOR - 1/2 WATT, 39 OHM	2
?	VS7018	RESISTOR - 1/4 WATT, 10,000 OHM	2
?	VS7017	RESISTOR - 1/4 WATT, 4,990 OHM	1
?	VP9545	RESISTOR - 1/2 WATT, 39 OHM	1
?	VE2616	DIODE (IN4148)	2
?	VP9512	CAPACITOR - 1 MFD, 50 VOLT	2
?	VJ8262	CAPACITOR - 0.01 MFD, 200 VOLT	1
?	VS7629	I C MODULE	1
?	VJ6014	POTENTIOMETER - 1 WATT, 2,000 OHM	2
?	VP9538	TERMINAL - 0.372" LONG	1
?	VS8040	MACHINE SCREW - #10 - 32NF X 3/4"	4
?	DC3101	LOCKWASHER - #10	8
?	VS6662	FLAT WASHER - #10	8
?	SF2755	NUT - #10 - 32NF	8
?	VE5952	SCREW, BINDING HEAD - NYLON, #10 - 32NF	4
?	VE5953	NUT - NYLON, #10 - 32NF	12
?	VS8434	GROMMET, RUBBER	1
?	VE4730	WASHER - 7/16" OD, 332" THICK	4

Komatsu AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM parts catalog PDF

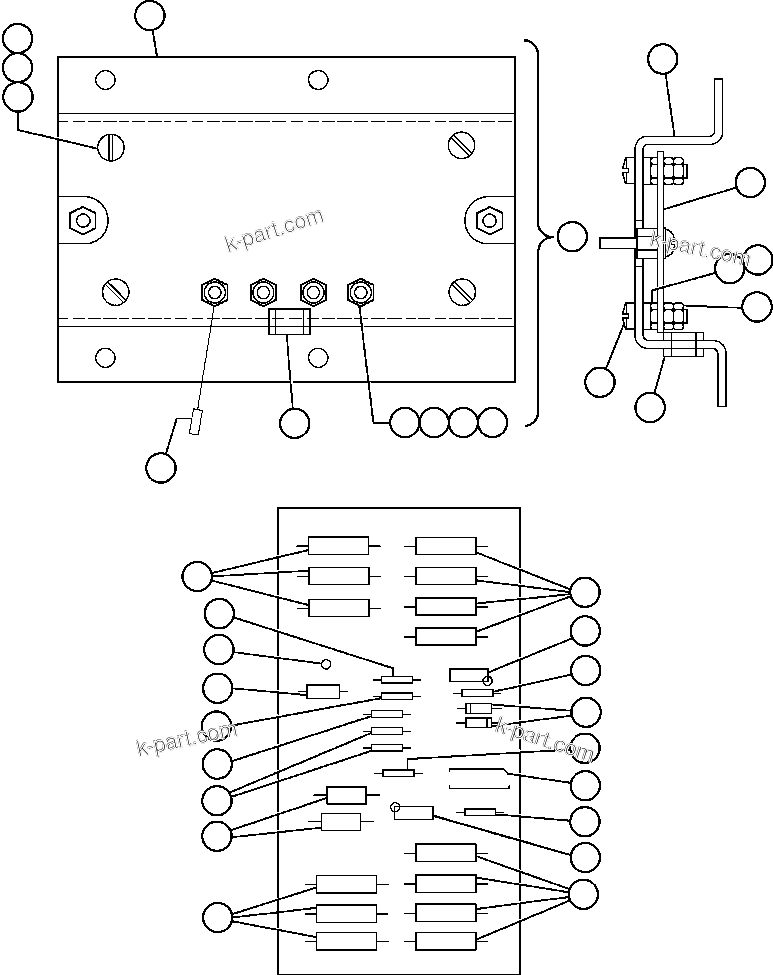

PANEL - VMM (VE6118) (64067) in AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM. Diagram image and parts list.
