AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	PC0522	OVERCENTER MANIFOLD VALVE (SEE INDEX)	1	55589
?	C7595	CAPSCREW - 5/8" - 11NC X 1 1/4"	4
?	WA0361	FLAT WASHER - 5/8" (HARDENED)	4
?	PB6770	COUPLING, MALE QUICK DISCONNECT	5
?	TF3231	CLAMP, SPLIT FLANGE	22
?	WA0187	O-RING	8
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	48
?	C1540	LOCKWASHER - 1/2"	56
?	EH3596	TUBE	2
?	WA2572	FITTING, CAPNUT	2
?	TY9636	TUBE	2
?	WA2573	FITTING, CAPNUT	2
?	EH8494	TUBE	1
?	EH8495	TUBE	1
?	EH8493	TUBE	1
?	VH6718	CLAMP, SPLIT FLANGE	4
?	WA0232	O-RING	3
?	C1615	CAPSCREW - 1/2" - 13NC X 1 3/4"	4
?	C1663	CAPSCREW - 7/8" - 9NC X 3"	3
?	C1543	LOCKWASHER - 7/8"	3
?	WA0363	FLAT WASHER - 7/8" (HARDENED)	3
?	C1529	NUT - 7/8" - 9NC	3
?	WA4712	CLAMP, HYDRA ZORB - 2"	3
?	EH8895	TUBE	1
?	WB0604	FITTING, STRAIGHT	1
?	SR7215	CAPSCREW - 1/2" - 13NC X 7 1/2"	4
?	HA5698	HOSE	1
?	WB0584	FITTING, STRAIGHT	4
?	WB0375	FITTING, ELBOW - 90 DEG	1
?	WB0557	FITTING, TEE	1
?	EM2015	MOUNT, PUMP/VALVE	1
?	EH8492	TUBE	1
?	TD0791	CAPSCREW - 3/8" - 16NC X 1 1/4"	5
?	TC1231	LOCKWASHER - 3/8"	5
?	C1637	CAPSCREW - 5/8" - 11NC X 3 3/4"	3
?	WA0361	FLAT WASHER - 5/8" (HARDENED)	3
?	VG7000	MOUNT, CENTER BONDED	3
?	TD5915	FLAT WASHER (SPECIAL)	6
?	C1541	LOCKWASHER - 5/8"	3
?	C1525	NUT - 5/8" - 11NC	3

Komatsu AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO parts catalog PDF

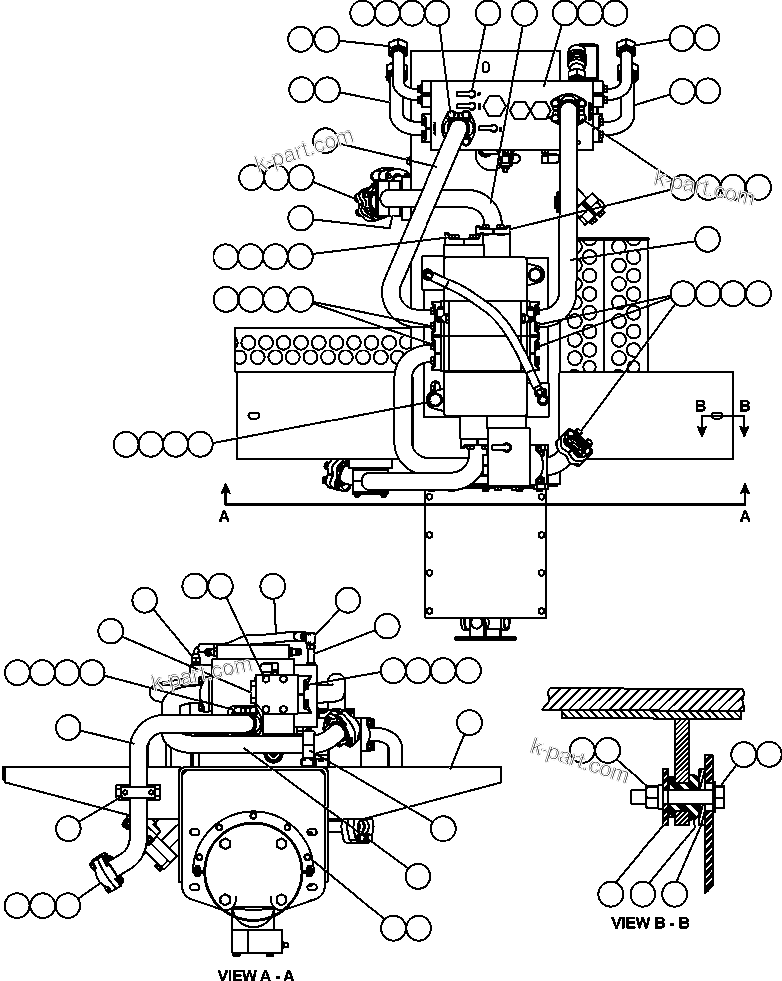

REAR AXLE HYDRAULIC PIPING ( 2/2) (61118) in AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO. Diagram image and parts list.
