AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	DL4172	SLEEVE, INSULATING	2
?	SF9896	KNIFE, DISCONNECT	2
?	VS0035	LIGHT, DOME	2
?	VZ1912	BULB	2
?	TM9090	INSULATOR	2
?	VF2231	MACHINE SCREW - #10 - 24NC X 3/8"	6
?	DC3101	LOCKWASHER - #10	6
?	PC1531	VALVE, DUAL RELAY (SEE INDEX)	1	61000
?	SR6320	CAPSCREW - 1/2" - 13NC X 7/8"	2
?	DD5640	FLAT WASHER - 1/2"	2
?	WB1024	FITTING, STRAIGHT	1
?	WB0586	FITTING, STRAIGHT	1
?	WB0584	FITTING, STRAIGHT	7
?	WB0585	FITTING, STRAIGHT	3
?	HA7755	HOSE	1
?	EG0603	TUBE	1
?	EG0601	TUBE	1
?	PB6922	VALVE, HOIST PILOT (SEE INDEX)	1	40064
?	MM0056	CAPSCREW - M10 X 1.50 X 40	4
?	MM0461	FLAT WASHER - M10	4
?	MM0471	LOCKWASHER - M10	4
?	MM0178	NUT - M10 X 1.50	4
?	WB0508	FITTING, ELBOW - 90 DEG	4
?	EH8954	TUBE	1
?	EC6228	TUBE	1
?	EH8955	TUBE	1
?	EG0604	TUBE	1
?	EG0605	TUBE	1
?	EG0607	TUBE	1
?	PB6895	CONNECTION KIT	1
?	PC1898	CABLE ASSEMBLY	1
?	VM0314	PLUG, O-RING BOSS	3
?	PB6528	COUPLING, DIAGNOSTIC	5
?	PB6041	CAP, DUST	5
?	EL8049	HARNESS, INTERNAL	1
?	VZ3250	DIODE	2
?	VZ0598	TYRAP	12
?	PC1498	MANIFOLD, BRAKE (SEE INDEX)	1	61010
?	WB0583	FITTING, STRAIGHT	1
?	VM0320	PLUG, O-RING BOSS	2
?	PC1558	SWITCH, PRESSURE	1
?	PC1557	SWITCH, PRESSURE	1
?	EF8197	TUBE	1
?	PB6803	VALVE, SHUTTLE	1
?	EF8198	TUBE	1
?	PC1678	SWITCH, PRESSURE	1
?	TY7550	BLOCK, JUNCTION	1
?	PC1677	SWITCH, PRESSURE	1
?	TY9260	TUBE	1
?	PB4767	RELAY	1
?		(BRAKE CABINET ASSEMBLY NOT SERVICED AS AN	-1
?		ASSEMBLY. ORDER INDIVIDUAL COMPONENT PARTS.)	-1

Komatsu AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO parts catalog PDF

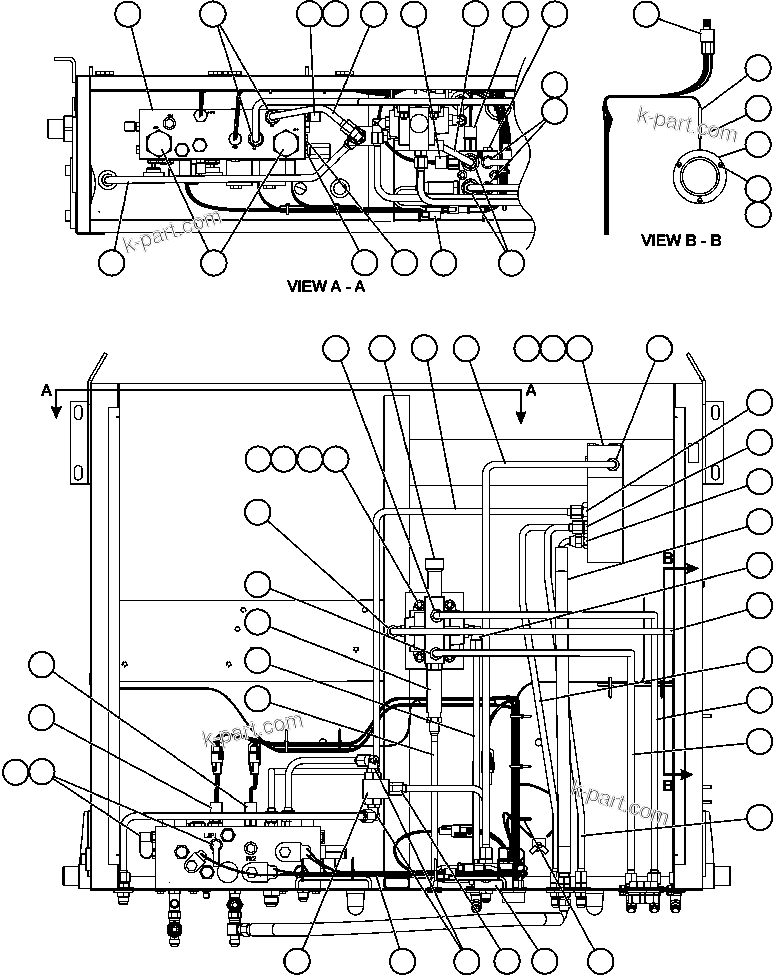

HYDRAULIC BRAKE CABINET ASSEMBLY 1/2 (EM1496) (61110) in AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO. Diagram image and parts list.
