AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EJ9748	COVER, TOP	1
?	EJ9749	COVER, BOTTOM	1
?	TL7218	CAPSCREW - 3/8" - 16NC X 7/8"	8
?	TC1231	LOCKWASHER - 3/8"	8
?	PC0183	DRIVE SHAFT ASSEMBLY (SEE FIG 41635)	1	41635
?	EK6183	ADAPTER, FLANGE	1
?	PB6528	COUPLING, DIAGNOSTIC	2
?	PB6041	CAP, DUST	2
?	PB9839	HOIST VALVE ASSEMBLY (SEE INDEX)	1	60068
?	EJ3891	CLAMP ASSEMBLY	1
?	EJ5575	BRACKET	1
?	TF8090	CLAMP, SPLIT FLANGE	4
?	VG9095	O-RING	2
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	20
?	C1540	LOCKWASHER - 1/2"	40
?	C1615	CAPSCREW - 1/2" - 13NC X 1 3/4"	20
?	VG9096	O-RING	2
?	WA5630	CLAMP, FLANGE - 1 1/4"	8
?	DC7524	CAPSCREW - 3/8" - 16NC X 7/8"	2
?	C0312	LOCKWASHER - 3/8"	2
?	WA0720	FLAT WASHER - 3/8" (HARDENED)	2
?	TA2968	PLUG, DUST	2
?	PB4685	COUPLING, HYDRAULIC	2
?	WA3568	FITTING, TUBE	2
?	WB0547	FITTING, ELBOW - 45 DEG	2
?	WA0232	O-RING	1
?	VH6718	CLAMP, SPLIT FLANGE	2
?	WB0520	FITTING, ELBOW - 90 DEG	1
?	WA0098	O-RING	4
?	VG9058	RING, SEATING	4
?	C1621	CAPSCREW - 1/2" - 13NC X 3 1/4"	4
?	VL9963	CLAMP, SPLIT FLANGE	2
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	6
?	C1541	LOCKWASHER - 5/8"	10
?	VN7716	CLAMP, SPLIT FLANGE	2
?	C1630	CAPSCREW - 5/8" - 11NC X 2"	4
?	PB9008	HOIST PUMP ASSEMBLY (SEE INDEX)	1	60246
?	PC1142	STEERING PUMP ASSEMBLY (SEE INDEX)	1	41335
?	WB0574	FITTING, STRAIGHT	1
?	EH8490	TUBE	1
?	WA4709	CLAMP, HYDRA ZORB - 1 1/4"	2
?	EH8957	BRACKET	1
?	WB0508	FITTING, ELBOW - 90 DEG	2
?	VN9952	LOCKNUT - 5/8" - 11NC	2
?	WA0361	FLAT WASHER - 5/8" (HARDENED)	2
?	WA0360	FLAT WASHER - 1/2" (HARDENED)	4
?	C1523	NUT - 1/2" - 13NC	4
?	TF3231	CLAMP, SPLIT FLANGE	4
?	WA5629	CLAMP, FLANGE - 1 1/2"	2
?	C1631	CAPSCREW - 5/8" - 11NC X 2 1/4"	4

Komatsu AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO parts catalog PDF

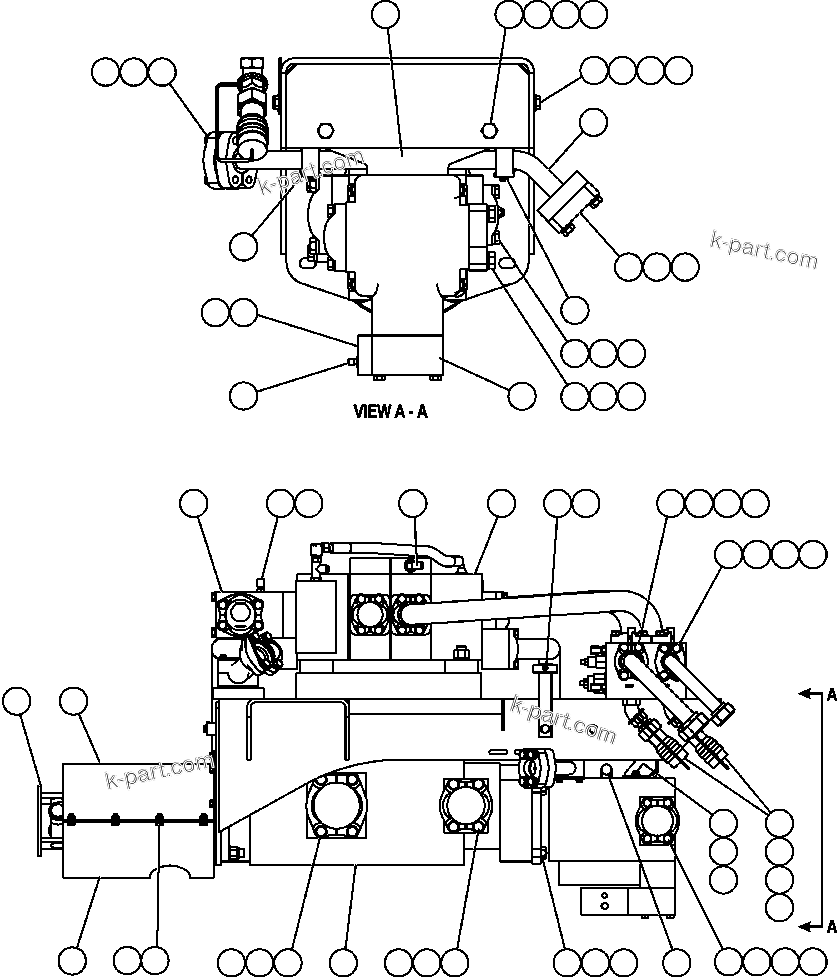

PUMP/HOIST VALVE MODULE ( 1/2) (61119) in AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO. Diagram image and parts list.
