AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EM1496	BRAKE CABINET ASSEMBLY (SEE INDEX) (1)	1	60973
?	MM0620	CAPSCREW - M12 X 1.75 X 40	4
?	MM0472	LOCKWASHER - M12	4
?	MM0179	NUT - M12 X 1.75	4
?	MM0714	FLAT WASHER - M12 (HARDENED)	12
?	SM2014	CAP	2
?	MM0623	CAPSCREW - M12 X 1.75 X 60	4
?	HA6397	HOSE	1
?	HA6173	HOSE	2
?	HA5553	HOSE	1
?	WB0386	FITTING, TEE	1
?	HA7386	HOSE	1
?	EF9801	FLAP, RUBBER	1
?	MM0470	LOCKWASHER - M8	3
?	MM0460	FLAT WASHER - M8	3
?	MM0177	NUT - M8 X 1.25	3
?	MM0594	CAPSCREW - M8 X 1.25 X 25	3
?	WB0384	FITTING, TEE	2
?	MM0605	CAPSCREW - M10 X 1.50 X 25	9
?	MM0471	LOCKWASHER - M10	9
?	EF8174	CLAMP	2
?	WB0430	FITTING, BULKHEAD	8
?	EF8177	BRACKET	1
?	WB0432	FITTING, BULKHEAD	1
?	WB0427	FITTING, BULKHEAD	2
?	HA7331	HOSE (TO PORT "B2" - BRAKE)	1
?	HA7389	HOSE (TO PORT "T" - BRAKE)	1
?	HA5569	HOSE (TO PORT "P" - STEERING)	1
?	HA7331	HOSE (TO PORT "P2" - BRAKE)	1
?	HA7382	HOSE (TO PORT "T" - STEERING)	1
?	HA7360	HOSE (TO PORT "PX" - BRAKE)	1
?	HA7331	HOSE (TO PORT "P1" - BRAKE)	1
?	HA7331	HOSE (TO PORT "B1" - BRAKE)	1
?	HA7382	HOSE (TO PORT "L" - STEERING)	1
?	HA5569	HOSE (TO PORT "R" - STEERING)	1
?	TG2568	CLAMP, VINYL - 7/8" I.D.	16
?	VN9913	CLAMP, VINYL - 1 1/16" I.D.	2
?	TY8375	SPACER	6
?	MM0461	FLAT WASHER - M10	6
?	MM0178	NUT - M10 X 1.50	6
?	TG2960	CLAMP, VINYL - 9/16" I.D.	4
?	HA7425	HOSE	1
?	HA7358	HOSE (TO PORT "LS" - STEERING)	1
?		NOTE: (1) NOT SERVICED AS AN ASSEMBLY.	-1
?		ORDER INDIVIDUAL COMPONENT PARTS.	-1

Komatsu AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO parts catalog PDF

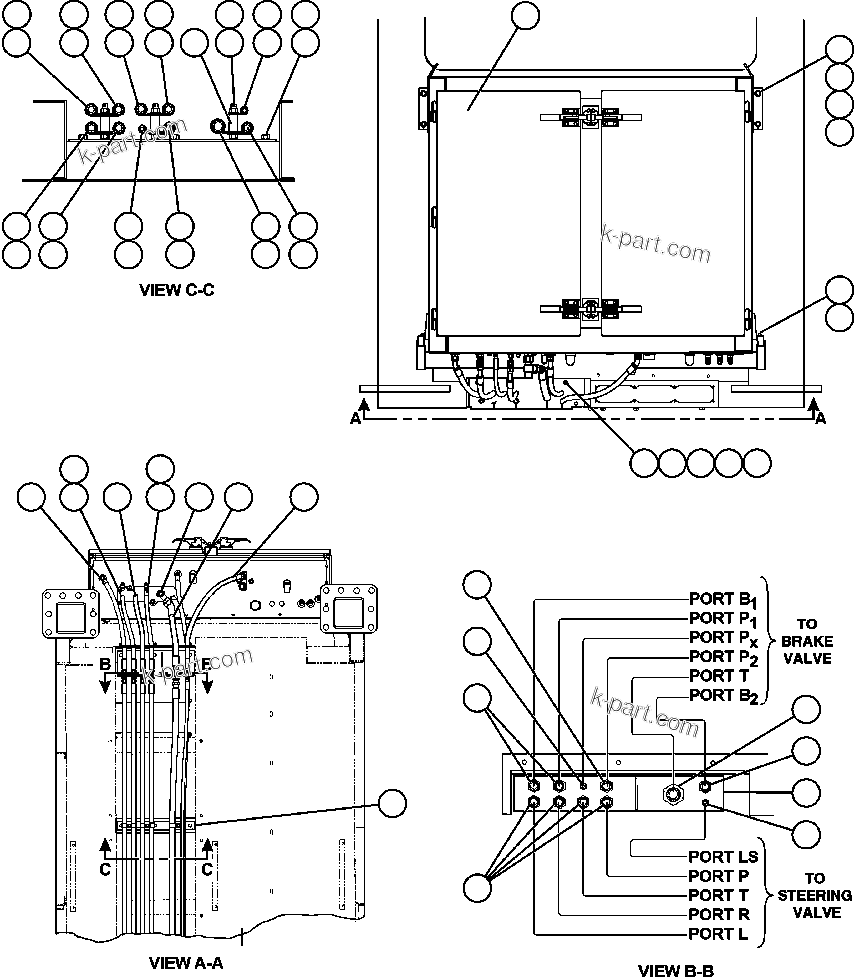

BRAKE/STEERING VALVE PIPING (61109) in AFE59-BM 930E-4 S/N A30712 - A30714 CODELCO. Diagram image and parts list.
