01 |
924 905 40
|

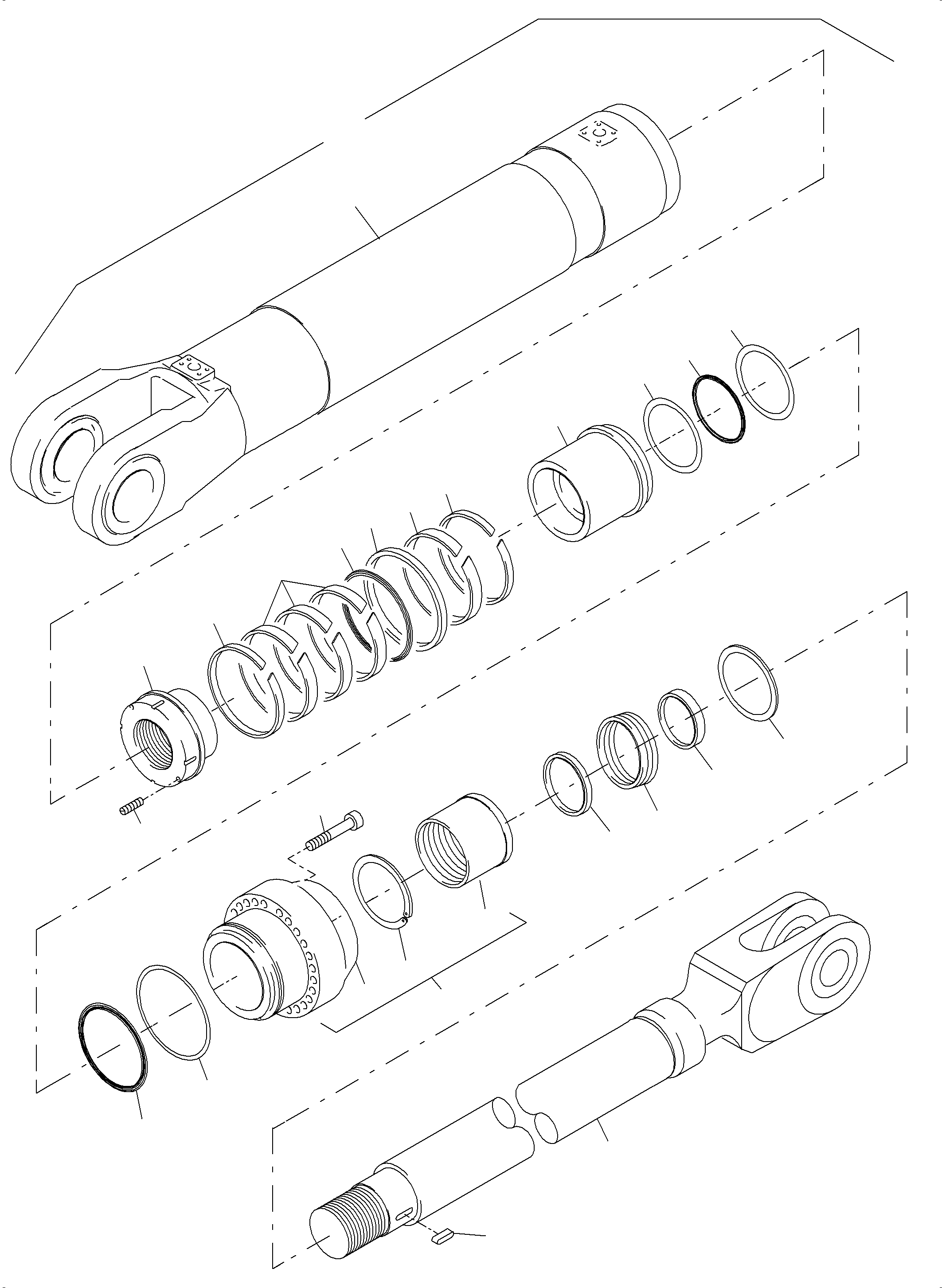

Hydraulic cylinder (standard) |
1 |
InternBDB: 240/170x2045 (3390) | InternKon: 934 614 40 / 1
|
|
|
|
01 |
934 620 40
|
Hydraulic cylinder (cold weather design) |
1 |
InternBDB: 240/170x2045 (3390) | InternKon: 934 614 40 / 1
|
|
|
|
03 |
909 334 40
|
Cylinder barrel |
1 |
InternKon: 934 620 40 / 1
|
|
|
|
06 |
947 184 40
|
Thread pin |
1 |
InternBDB: M 12x40 | InternKon: 934 620 40 / 20
|
|
|
|
07 |
947 198 40
|
Groove nut |
1 |
InternKon: 934 620 40 / 5
|
|
|
|
08 |
551 726 40
|
Piston slyding strip |
2 |
InternBDB: Bu. u. Lu. | InternKon: 934 620 40 / 9
|
|
|
|
09 |
896 692 40
|
Piston wear ring |
4 |
InternBDB: Bu. u. Sh. GP 75-02400-C380 | InternKon: 934 620 40 / 8
|
|
|
|
10 |
269 217 40
|
O-ring (standard) |
1 |
InternBDB: 215,27x7,0 B N7083 | InternKon: 934 620 40 / 7
|
|
|
|
10 |
515 729 98
|
O-ring (cold weather design) |
1 |
InternBDB: O-RING 215,27X 7,00B N7T40 KALTZ WN 01174599 | InternKon: 934 620 40 / 7
|
|
|
|
11 |
269 218 40
|
Seal |
1 |
InternBDB: PG-44-02400-T46 | InternKon: 934 620 40 / 6
|
|
|
|
12 |
909 322 40
|
Piston |
1 |
InternKon: 934 620 40 / 4
|
|
|
|
15 |
502 010 98
|
O-ring (standard) |
1 |
InternBDB: 169,20x5,70 NB70 | InternKon: 934 620 40 / 15
|
|
|
|
15 |
517 368 98
|
O-ring (cold weather design) |
1 |
InternBDB: O-RING 169,30X 5,70B N7T40 KALTZ WN 01174599 | InternKon: 934 620 40 / 15
|
|
|
|
16 |
906 478 40
|
Support ring |
2 |
InternBDB: 168,0x178,0x1,7 | InternKon: 934 620 40 / 16
|
|
|
|
17 |
202 703 40
|
O-ring (standard) |
1 |
InternBDB: 227,97x7,00 NB70 | InternKon: 934 620 40 / 13
|
|
|
|
17 |
516 342 98
|
O-ring (cold weather design) |
1 |
InternBDB: O-RING 227,97X 7,00B N7T40 KALTZ WN 01174599 | InternKon: 934 620 40 / 13
|
|
|
|
18 |
906 477 40
|
Support ring |
1 |
InternBDB: 227,8x240,0x1,25 | InternKon: 934 620 40 / 14
|
|
|
|
19 |
924 957 40
|
Sealing flange fig-nos: 20, 21 and 22 (finish work after bush is installed) |
1 |
InternKon: 934 620 40 / 3
|
|
|
|
20 |
|
Bush |
1 |
InternBDB: 924 951 40 | InternKon: 924 957 40 / 1
|
|
|
|
21 |
929 237 40
|
Bearing bush (no field repair item) |
1 |
InternKon: 924 957 40 / 2
|
|
|
|
22 |
342 688 99
|
Circlip |
1 |
InternBDB: 190x4 / DIN 472 | InternKon: 924 957 40 / 3
|
|
|
|
23 |
319 354 99
|
Screw (standard) |
18 |
InternBDB: M 24x160 / DIN 912 -10.9 | InternKon: 934 620 40 / 19
|
|
|
|
23 |
512 890 98
|
Screw (cold weather design) |
18 |
InternBDB: ZYLSHR M24 X160 10.9 KALTZ DIN 00912 | InternKon: 934 620 40 / 19
|
|
|
|
24 |
907 964 40
|
Buffer ring |
1 |
InternBDB: 170x195x9,6 | InternKon: 934 620 40 / 10
|
|
|
|
25 |
907 597 40
|
Rod seal (standard) |
1 |
InternBDB: 170x195x19,5 | InternKon: 934 620 40 / 11
|
|
|
|
25 |
932 901 40
|
Rod seal (cold weather design) |
1 |
InternBDB: ROD SEAL 170X195,0X19,5 A903 19YF IUY | InternKon: 934 620 40 / 11
|
|
|
|
26 |
907 596 40
|
Dust seal |
1 |
InternBDB: 170x195x10x14 | InternKon: 934 620 40 / 12
|
|
|
|
27 |
517 456 98
|
Cirlip |
1 |
InternBDB: A190 / WN 010 718 99 | InternKon: 934 620 40 / 18
|
|
|
|
28 |
354 534 99
|
Feather key |
1 |
InternBDB: A 20x12x45/ DIN 6885 | InternKon: 934 620 40 / 17
|
|
|
|
29 |
909 328 40
|
Piston rod |
1 |
InternBDB: 170 | InternKon: 934 620 40 / 2
|
|
|
|
|$$31 |
792 430 73
|
Seal kit for piston fig-nos. 08-11,15 and 16 (standard) |
-2 |
InternBDB: E-St
|
|
|
|
|$$32 |
793 481 73
|
Seal kit for sealing flange fig-nos: 17, 18, 24 - 26 (standard) |
-2 |
InternBDB: E-St
|
|
|
|
|$$33 |
794 970 73
|
Seal kit for piston fig-nos. 08-11,15 and 16 (cold weather design) |
-2 |
InternBDB: E-St
|
|
|
|
|$$34 |
794 971 73
|
Seal kit for sealing flange fig-nos: 17, 18, 24 - 26 (cold weather design) |
-2 |
InternBDB: E-St
|
|
